BK85H 8.25" "H" Style BK Single Groove V-Pulley-1
BK85H 8.25" "H" Style BK Single Groove V-Pulley-2

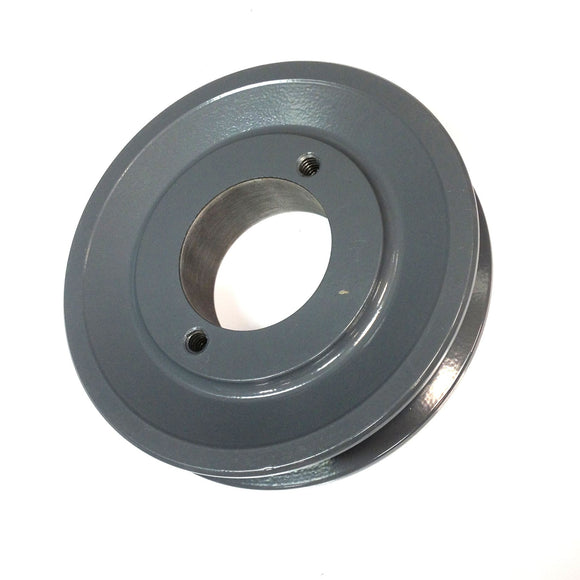

BK85H 8.25" "H" Style BK Single Groove V-Pulley

$27.25 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: BK85H Barcode: 624832037500

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Specifications

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
Brand Leeson
Part Number BK85H

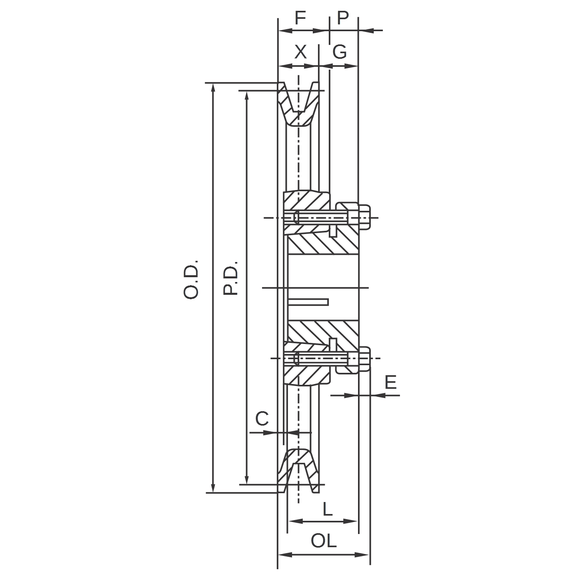

Outside Diameter 8.25"
Pulley Diameter "A" 7.50"
Pulley Diameter "3L" 7.90"
Type 3
Dimension "OL" 1-9/16"
Dimension "F" 7/8"
Dimension "L" 1-1/4"
Dimension "P" 7/16"
Dimension "C" 1/16"
Dimension "X" 7/8"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 3.8 lbs
UPC 624832037500
Country of Origin China
