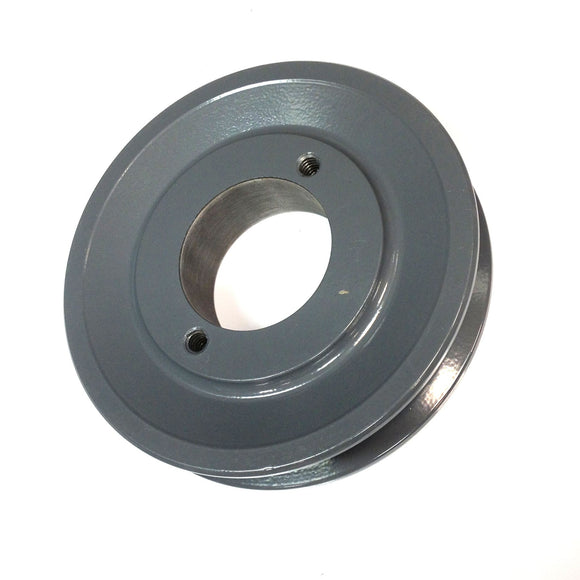

BK30H 3.15" "H" Style BK Single Groove V-Pulley-1
BK30H 3.15" "H" Style BK Single Groove V-Pulley-2

BK30H 3.15" "H" Style BK Single Groove V-Pulley

$17.28 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: BK30H Barcode: 624832037302

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Specifications

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
Brand Leeson
Various
Part Number BK30H
Outside Diameter 3.15"
Pulley Diameter "A" 2.40"
Pulley Diameter "3L" 2.80"
Type 1

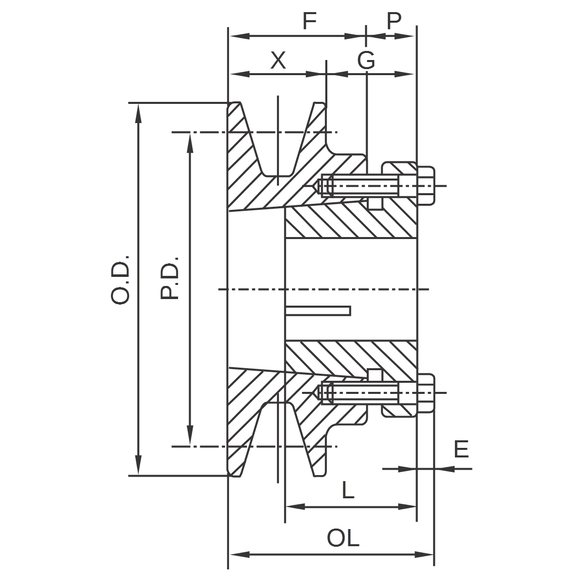

Dimension "OL" 1-15/16"
Dimension "F" 7/8"
Dimension "L" 1-1/4"
Dimension "P" 7/8"
Dimension "X" 1-5/16"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 1.2 lbs
UPC
