AK2208 2.20" X 1/2" AK Single Groove V-Pulley-1
AK2208 2.20" X 1/2" AK Single Groove V-Pulley-2
AK2208 2.20" X 1/2" AK Single Groove V-Pulley-3

AK2208 2.20" X 1/2" AK Single Groove V-Pulley

$7.92 USD

Shipping calculated at checkout

New Standard Power Transmission SKU: AK2208

30 Day
Return Policy

Ships Fast
in 24 hours

4

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand NSPT
Various
Part Number AK228
AK2208
AK22x1/2
Bore 1/2"

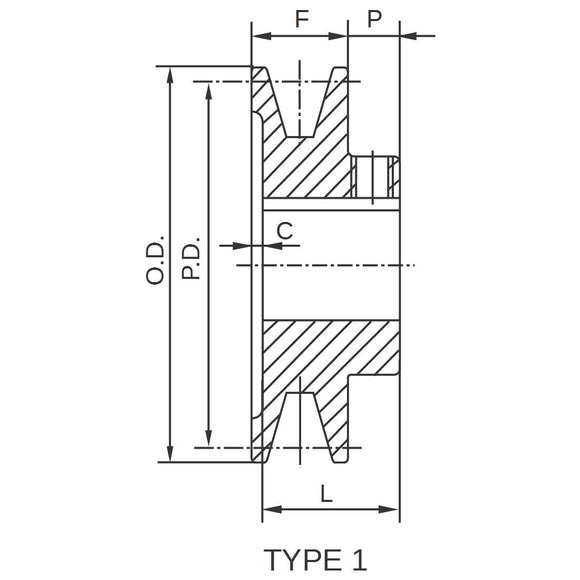

Sheave Cross Section AK
Outside Diameter 2.20"
Pulley Diameter “A” 2.00"
Pulley Diameter “3L” 1.66"
Type 1
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.5 lbs

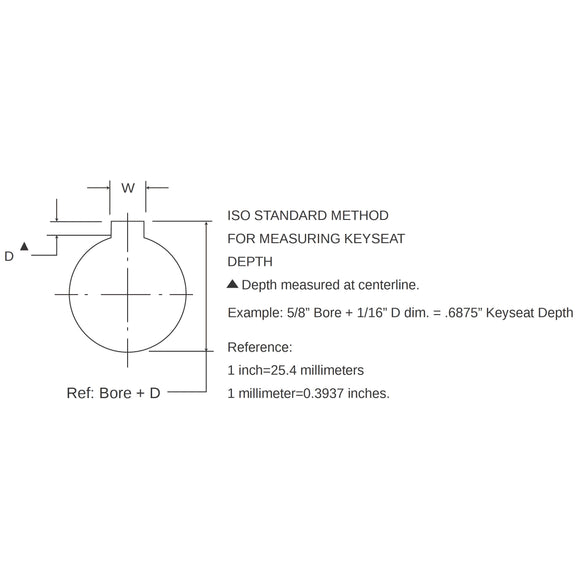

Keyseat (WxD) None
Set Screw(s) Yes, 2
Country of Origin Various
