AK2012 2" X 3/4" AK Single Groove V-Pulley-1
AK2012 2" X 3/4" AK Single Groove V-Pulley-2
AK2012 2" X 3/4" AK Single Groove V-Pulley-3

AK2012 2" X 3/4" AK Single Groove V-Pulley

$4.34 USD

Shipping calculated at checkout

AMEC Industry, Inc SKU: AK2012

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number AK2012
AK20x3/4
Bore 3/4"

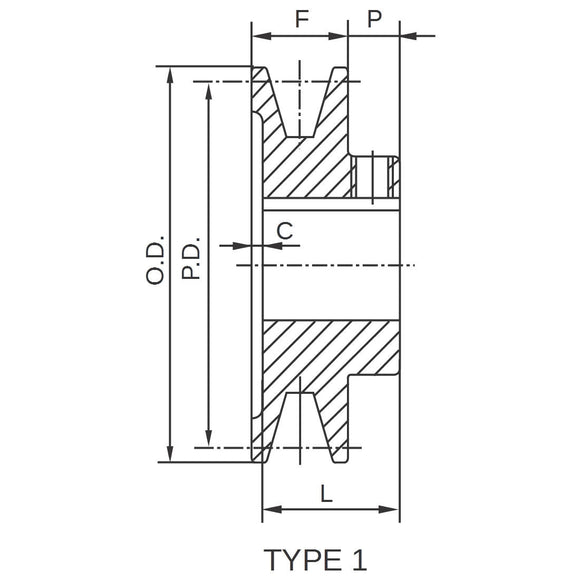

Sheave Cross Section AK
Outside Diameter 2.00"
Pulley Diameter “A” 1.80"
Pulley Diameter “3L” 1.46"
Type 1
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.3 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
