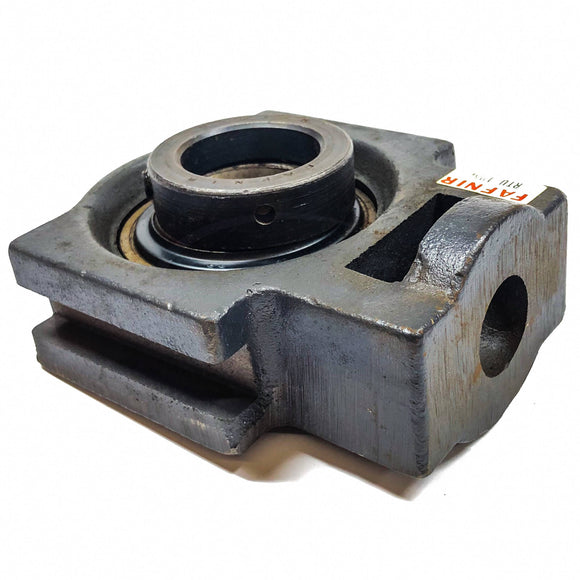

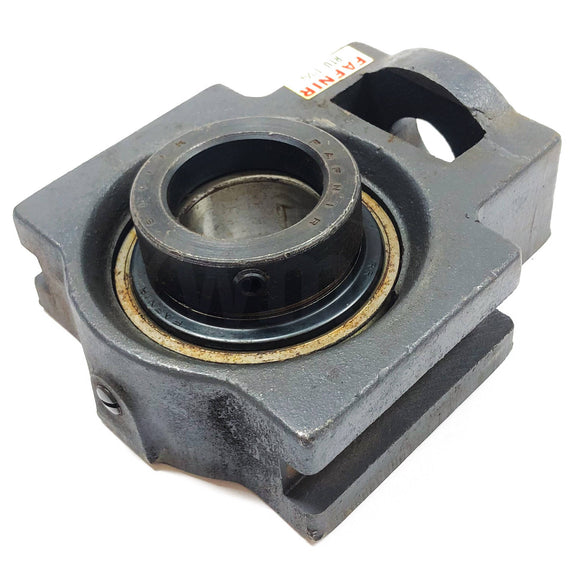

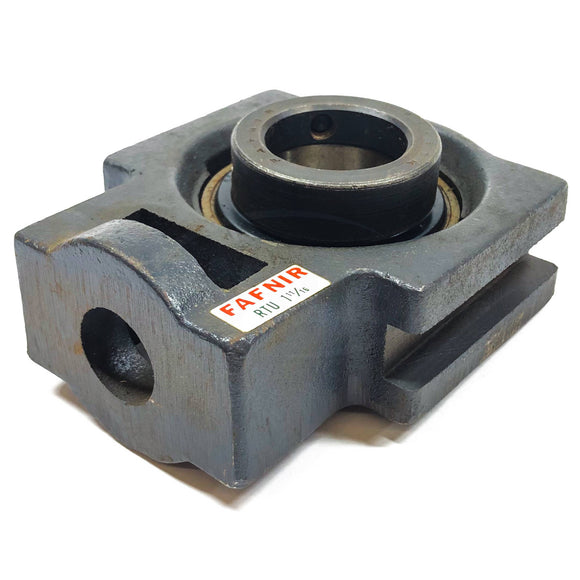

RTU 1-11/16 Fafnir Take Up Bearing Unit

$179.97 USD

Shipping calculated at checkout

Fafnir Bearing SKU: RTU 1-11/16

30 Day
Return Policy

Ships Fast
in 24 hours

New, Surplus Stock.

2 In Stock!

Description Product Specs Manufacturer



Specifications

















































Shaft Size d



1 11/16 in42.9 mm


Bearing Number



G1111KRRB


Dimension G



2.657 in67.5 mm


Dimension P



2.098 in53.3 mm


Dimension T



1.280 in32.5 mm


Series



Industrial


Weight



6.97 lb3.16 Kg


Seal Type



Shroud Seal


Housing Construction



Take-Up


Alternate Part Name



RTU1 11/16






Dimensions





































































Housing Width A



17.5 in65.1 mm


Slot Width A1



17.5 mm0.689 in


Socket Width A2



44.4 mm1.748 in


Total Height H



120.6 mm4.748 in


Pitch Height H1



100.8 mm3.969 in


Height H2



82.6 mm3.252 in


Total Length L



141.4 mm5.567 in


Shaft Length L1



88.1 mm3.469 in


Dimension L2



15.9 mm0.626 in


Slot Length L3



82.6 mm3.252 in


Adjustment Screw Bore N



48.00 mm1.875 in


Opening Width N1



19.00 mm0.748 in


Opening Height N2



49.2 mm1.937 in


Inside Ring Width B



42.86 mm1.687 in


Center of Bearing from End S



21.4 mm0.843 in






Basic Load Ratings

















Static Load Rating



4600 lbf20500 N


Dynamic Load Rating



8160 lbf36300 N
