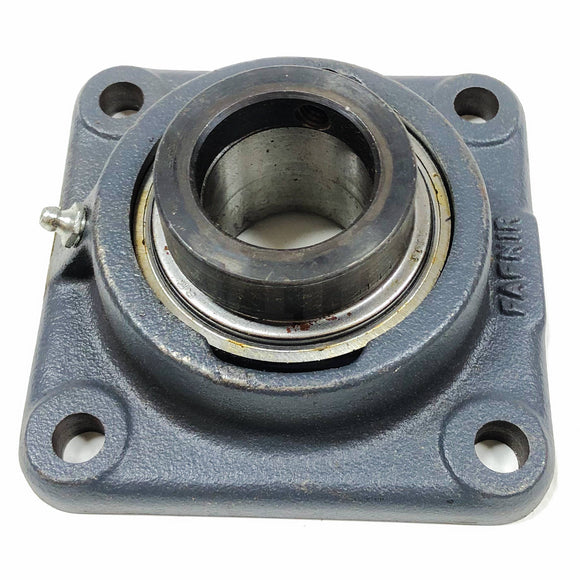

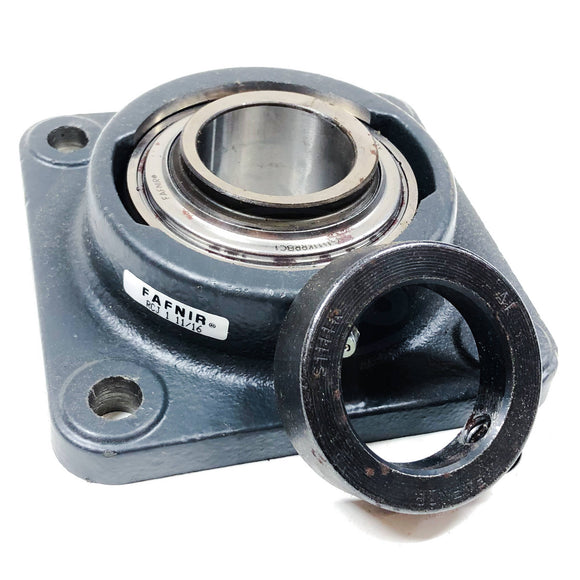

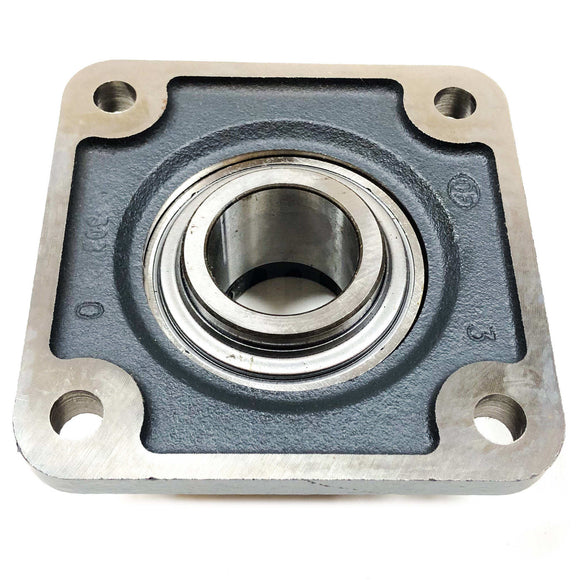

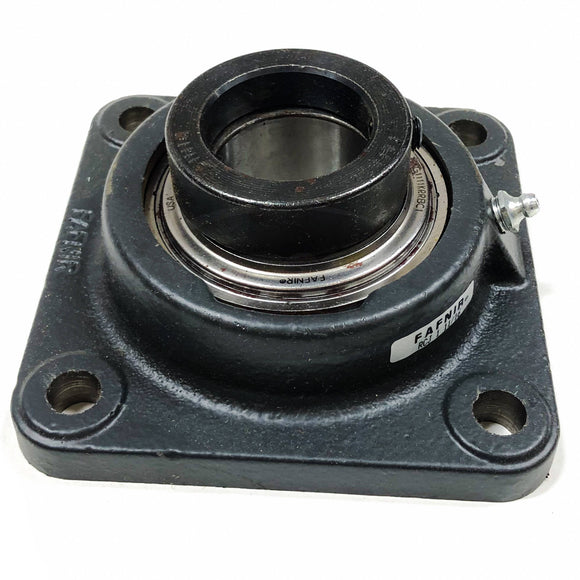

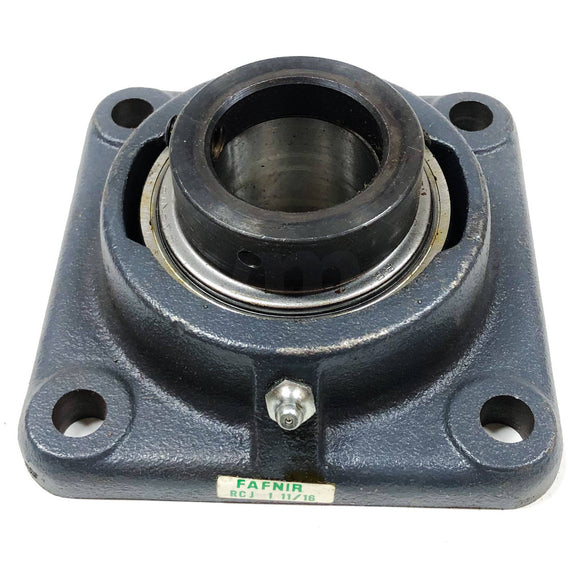

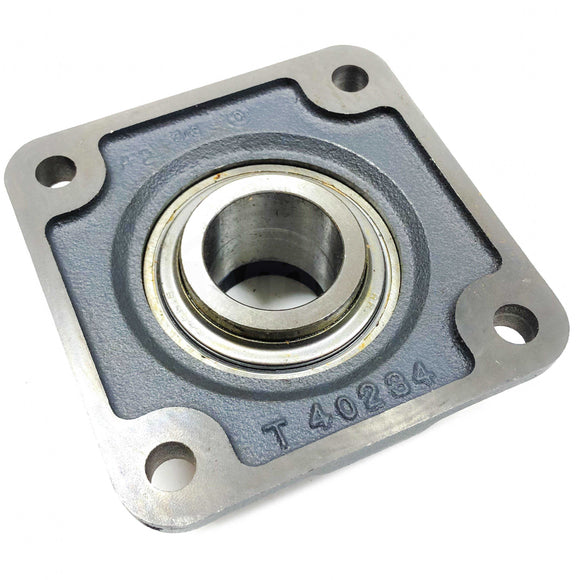

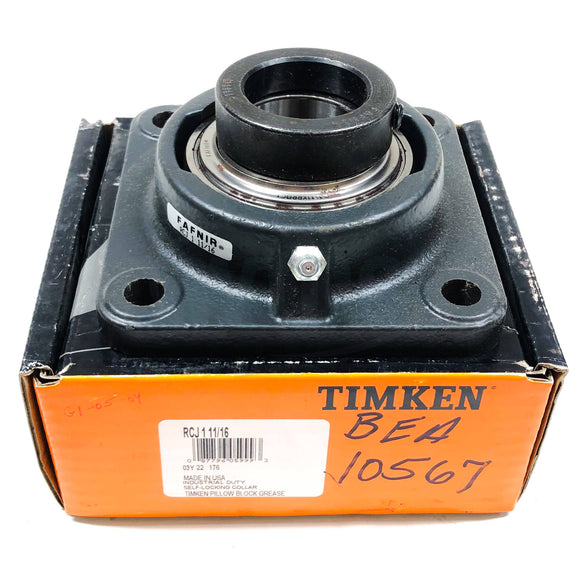

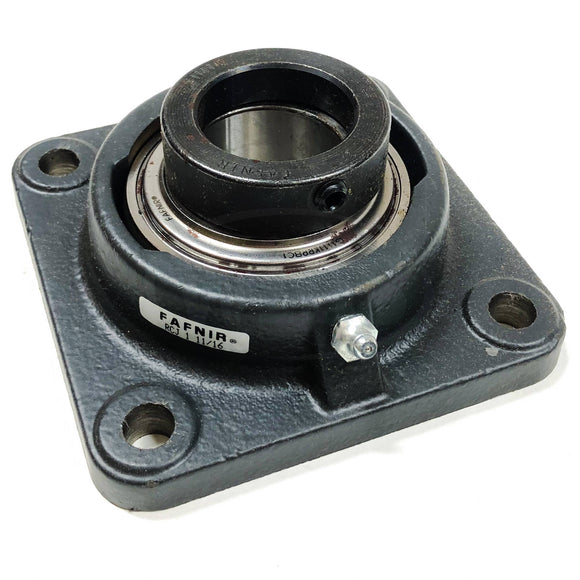

Specifications
Shaft Size d |
N/A 1 11/16 in42.9 mm |
Bearing Number |
N/A G1111KRRB |
Dimension D |
N/A 4.126 in104.8 mm |
Dimension E |
N/A 2.335 in59.3 mm |
Inside Ring Outside Diameter |
N/A 2.480 in63 mm |
Series |
N/A Industrial |
Weight |
N/A 5.7 lb2.585 Kg |
Seal Type |
N/A Shroud Seal |
Housing Construction |

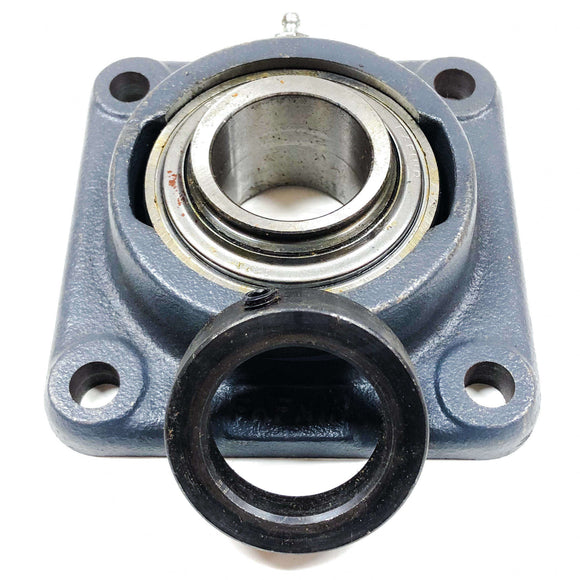

N/A Four-Bolt Square Flange |
Alternate Part Name |
N/A RCJ111/16 |
Dimensions
Total Length L |
N/A 136.5 mm5.374 in |
Housing Width A |
N/A 1.531 in38.9 mm |
Bolt Hole Spacing J |
N/A 104.8 mm4.126 in |
Bolt Hole Size N |
N/A 12 mm0.472 in |
Flange Thickness A1 |
N/A 14.3 mm0.563 in |
Center of Bearing from Housing End A2 |
N/A 24.4 mm0.961 in |
Inside Ring Width B |
N/A N/A |
Bolt Size |
N/A M12 |
Center of Bearing from Bearing End S |
N/A 24.4 mm0.961 in |
