Dimensions
d - Bore |
N/A 35.00 mm1.378 in |
D - Outer Diameter |
N/A 72.00 mm2.8346 in |
Bearing Width |
N/A 17.00 mm0.6693 in |
do - Ball Diameter |
N/A 11.113 mm7/16 in |
Basic Load Ratings
|
Ce - Dynamic Radial Rating1 |
N/A 28500 N6400 lbf |
C0 - Static Radial Rating |
N/A 15300 N3440 lbf |
Abutment and Fillet Dimensions
|
R - Inner Ring "To Clear" Radius2 |
N/A 1.09 mm0.043 in |
|
r - Outer Ring "To Clear" Radius3 |
N/A 1.09 mm0.043 in |
da - Inner Ring Backing Diameter |
N/A 38.86 mm1.5300 in |
Da - Outer Ring Backing Diameter |
N/A 65.02 mm2.5600 in |
Add custom text to your tabs

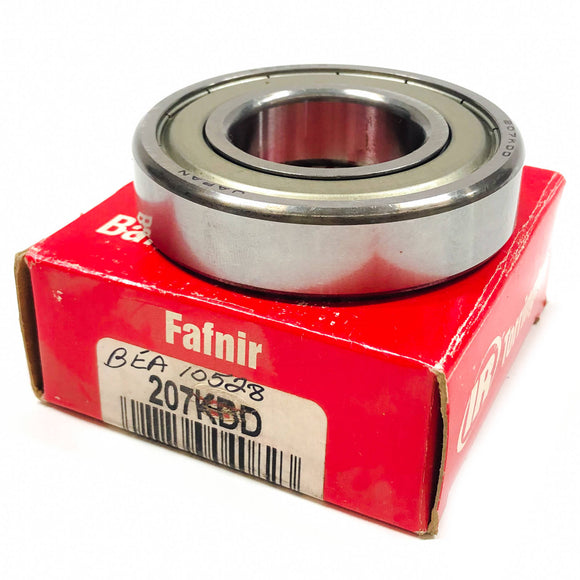

Fafnir Bearing
