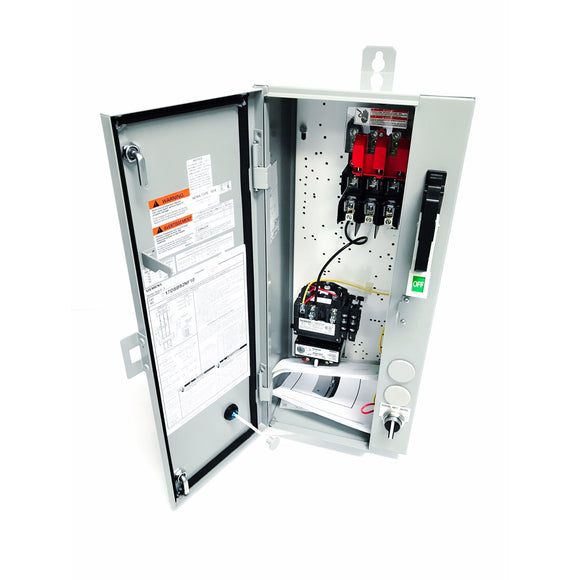

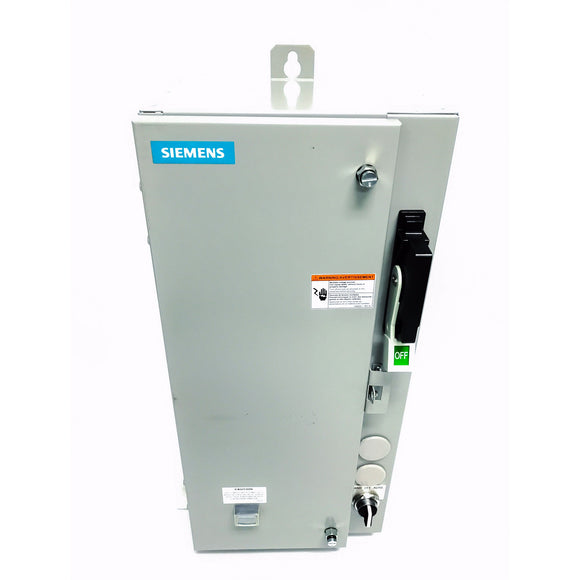

Siemens 17DSB92NF10 Fusible HD Motor Starter

Siemens 17DSB92NF10 Combination Fusible Non-Reversing HD Motor Starter
Catalog Number: 17DSB92NF10
NEMA Size 1
Enclosure Type NEMA 12/3/3R/4 Painted
Fuse Clip Rating 30/600 A/V
Three Phase (3 Pole)
Max HP 200V: 1/2 HP
230V: 3/4 HP
Overload Amp Range: 0.75-3
Overload Type Class 20
Coil Voltage 60 Hz 120 VAC
50 Hz 110 VAC

Modifications:
A3 Hand-Off-Auto Selector Switch
Aux Contacts: 2 N/O, 2 N/C

Contactor:
Siemens Catalog Number 14DST12A
Max Amps 27
600 VAC
Contact Kit 75DF14
NEMA/EEMAX Size 1
115 VAC 2 HP Max
230 VAC 3 HP Max

Overload:
Siemens Catalog Number 48ASB1M20
Solid-state Overload Relay
Trip Class 20
Series C
