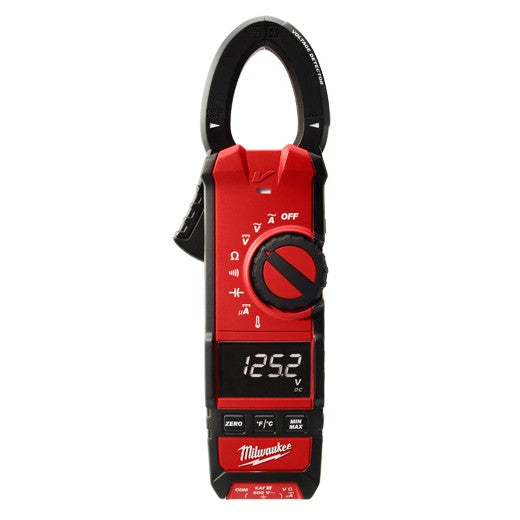

2236-20 Milwaukee Clamp Meter HVAC/R

$129.00 USD $230.00 USD Save $101.00 USD

Shipping calculated at checkout

Milwaukee Tool SKU: 2236-20 Barcode: 045242173761

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Includes

(1) Clamp Meter for HVAC/R (2236-20)
(1) Dual Banana Thermocouple
(1) Electrical Test Lead Set
(2) AA Batteries
(1) Manual

Product Features

  • Measures up to 600 amps AC, Large 1.30” jaw opening
  • Thin Jaw Profile for easier wire measurement in panels or in bundles
  • Wide Voltage range to 600 AC/DC volts
  • True-RMS for accurate measurement in all applications
  • Built-In Voltage Detector and LED Work Light
  • Thermocouple (dual banana) input for contact temperature measurement
  • 600 uA DC for Flame Rectification
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip

Product Specifications

TRMS Yes
Jaw Size 1.3"
Safety Rating CAT III 600V
Current AC 600A
Microamps DC 600µA
Voltage AC/DC 600V
Resistance 6 kO
Continuity Yes
Capacitance Yes
Contact Temperature -40° F to 752° F (-40° C to 400° C)
Hold Yes
Display Backlight Yes
Display Type High Contrast White on Black
Non-Contact Voltage Yes
LED Work Light Yes
Rugged Over-molding Yes
Tool Warranty 5 Years
Temp Yes
Dual Banana Thermocouple Input Yes
Indication Visual (for NCVD)
Switch Type Dial
Battery Type Alkaline (AA)
Length 9 1/2"
