| Dimensional | |||
|
Width (in) |
0.63 |
||
|
Length (in) |
1.47 |
||
|
Bolt Hole Size (in) |
0.25 |
||
|
Thickness |
0.19 |
||
|
D - in |
0.81 |
||
|
Pad Width (in) |
0.64 |
||
|
N (in) |
0.45 |
||
| General | |||
|
Number of Conductors |
1 |
||
|
Number of Holes |
1 |
||
|
Product Description |

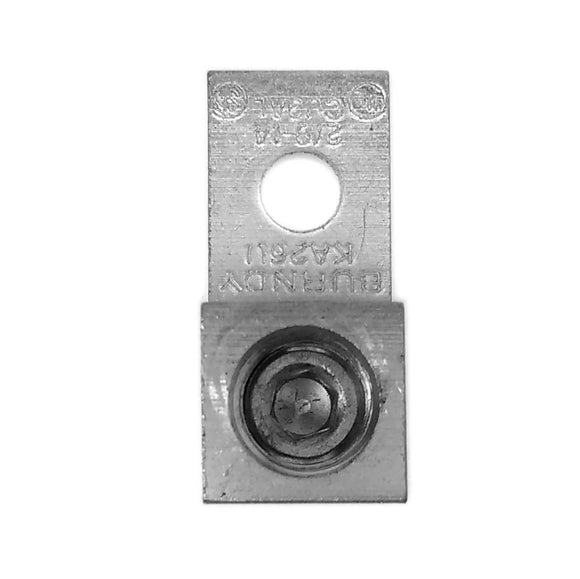

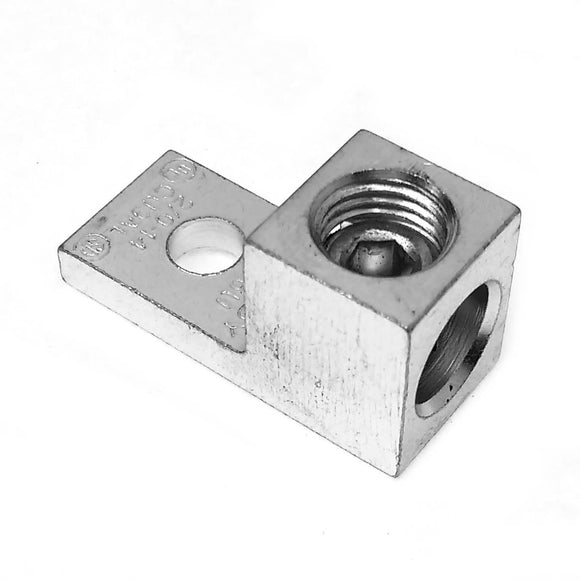

Aluminum Universal Terminal, 1 Hole, 6-2/0 AWG (Str), 1/4" Stud, 1 Screw, Al/Cu Rated, Tin Plated |
||
| Conductor(s) | |||
|
Aluminum Size (Range) |
14 STR- 2/0 STR |
||
|
Copper Solid Size (Range) |
N/A |
||
|
Copper Stranded (Range) |
14-2/0 |
||
| Physical | |||
|
Installation Torque |
120 |
||
|
Type of Plating |
Tin |
||
|
Connector Type |
Terminal |
||
|
Bolt Hole Size |
1/4 |
||
|
Plated (Yes or No) |
Y |
||
|
Product Material |
Aluminum |
||
| Approvals / Certifications | |||
|
Rated for Direct Burial |
N |
||
|
UL Listed |
Y |
||
|
CSA Certified |
Y |
||
|
ROHS Compatible |
Exempt |
||
|
Industry Standards |
UL468A-468B |
||
