Specifications
| Model | HVC 5-15 |
|---|---|
| Largest Single Load | 5 HP |
| Maximum Combined Load | 15 HP |
| Voltage | 460 Volts |
| Frequency | 60Hz |
| No Load Amperage | 1.3 Amps |
| "a" Dimension | 17 Inches |
| "b" Dimension | 15 Inches |
| "c" Dimension | 17 Inches |
| Motor Enclosure | ODP Open Drip Proof |
| Motor Frame Size | 213T |
| Input Circuit Breaker Rating | 30 Amp |
| Input Wire Size | #10 Minimum |
| Approximate Weight | 175 lbs |
| Notes |
Product Information Links:
- Maxiphase Phase Converter Brochure, 460 Volt, ODP
- Maxiphase Poster (12.25 x 19)
- Maxiphase Poor Performance Troubleshooting
- Maxiphase HVC Installation Instructions
- Maxiphase Selection Guide

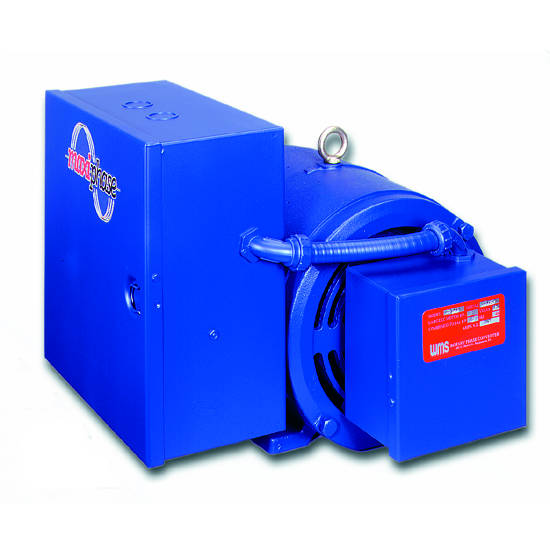

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!
- Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
- WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
- WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
- Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
- 1 Year Warranty
