APPLICATIONS:

• Crushers
• Ball Mills/ Rolling Mills
• Impactors
• Any High Torque Application
• Chippers/ Shredders

FEATURES:

• 20 - 600 hp
• 1800, 1200, 900 RPM
• Totally Enclosed Fan Cooled (IP55 Rating)
• Standard Efficient Design
• 36 Month Warranty from Date of Manufacture
• 60 Hz – 230/ 460V (Usable on 208V). 150 hp and Larger is 460V Only
• 50 Hz Data on Nameplate - 190/ 380V at 1.0 S.F. 150 hp and Larger is 380V Only at 1.0 S.F.
• Standard With Thermistors (PTC 140°C), 1 per Phase, Wired to a Separate Auxiliary Box
• 1.15 Service Factor – Continuous
• Class F Insulation with Phenolic Alkyd Resin Varnish – 2 Dips and Bakes
• Class B Temperature Rise
• NEMA Design C Torques - = 200% Starting Torque, = 250% Breakdown Torque
• Oversized Main Conduit Box Rotatable in 90 Degree Increments – Fully Gasketed with NPT Threaded Entrances - F1 Mounted.
• Designed for 40°C Ambient Temperature - Note (1)
• Designed for 3300 ft. Elevation - Note (2)
• Bidirectional Rotation
• Cast Iron Frame, End Brackets, and Conduit Box
• Rolled Steel Fan Cover
• High Strength 4140 AISI Steel Shaft
• Locknut and Washer on NDE for Vertical Shaft Down Applications on 440 Frames and Larger
• Drain Holes/ Plugs on Both End Brackets for Vertical Applications
• Threaded One Way Breather Drains for Horizontal Applications
• Aluminum Die Cast Rotor Construction
• Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
• Paint Color: Blue Gray – Munsell 7.5GB 4/ 2
• Vacuum De-Gassed Re-Greasable Bearings with Polyrex EM Grease
• Roller Bearing on Drive-End – 360T Frames and Larger
• Labyrinth Type Metal Grease Flinger on Both Ends
• Cast Iron Inner and Outer Bearing Caps – 320T Frames and Larger
• Grounding Terminal Inside Main Box and on Motor Foot
• Stainless Steel Nameplate
• 6 Leads
• Motors are CSA Approved
• Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG1 Part 31.4.4.3.

href="https://buy.tecowestinghouse.com/EcommerceFiles/ProdDesc/AEEAGD_CRUSHER_DUTY_TEFC.pdf">Product Description
Instruction Manual

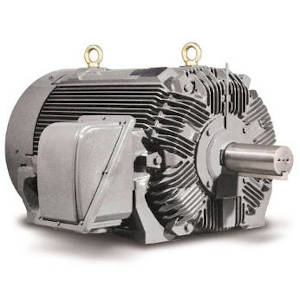

Teco-Westinghouse MAX-HT Hi-Torque Crusher Duty TEFC Electric Motors

Show12243648

$41,484.80 USD

$17,660.86 USD

$5,383.66 USD

$13,397.80 USD

$55,761.37 USD

$32,126.37 USD

$22,539.57 USD

$38,876.81 USD

$36,556.04 USD

$21,856.52 USD

$21,856.52 USD

$47,280.66 USD

$27,250.63 USD

$24,224.89 USD

$21,019.16 USD

$19,631.08 USD

$29,842.89 USD

$21,794.02 USD

$20,770.16 USD

$14,426.81 USD

$19,047.61 USD

$15,410.63 USD

$37,232.53 USD

$20,365.40 USD
