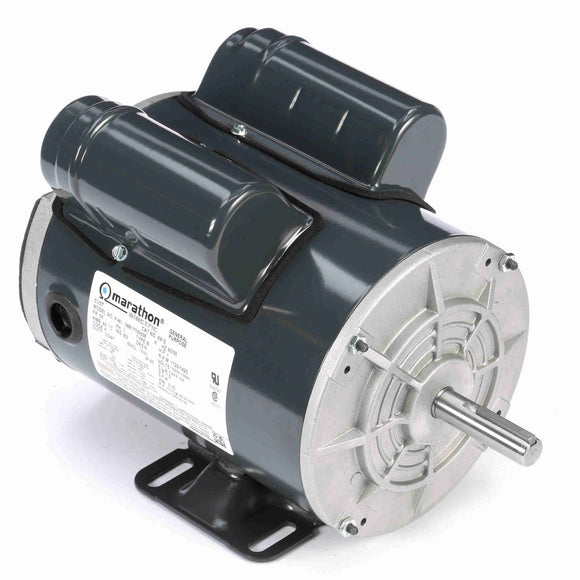

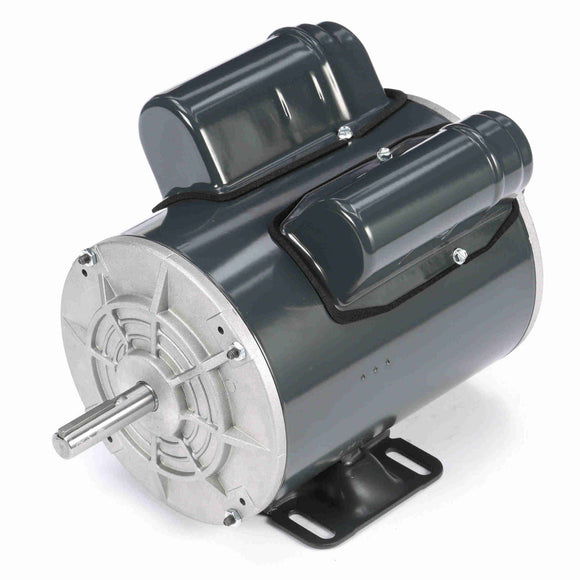

Features
Features
- Capacitor start/capacitor run design
- Automatic reset thermal protector for higher efficiency
- Suitable for belted loads
- Fully gasketed
- Continuous duty
- Capacitor start/capacitor run design for reduced amperage
General Specifications
General Specifications
| Model : | 056B17T5303 | Catalog No : | X912 |
| Part Description : | 1,1725,TEAO,56,1/60/50/115/230-110/220 | Category : | Single Phase |
| Stock : | Yes |

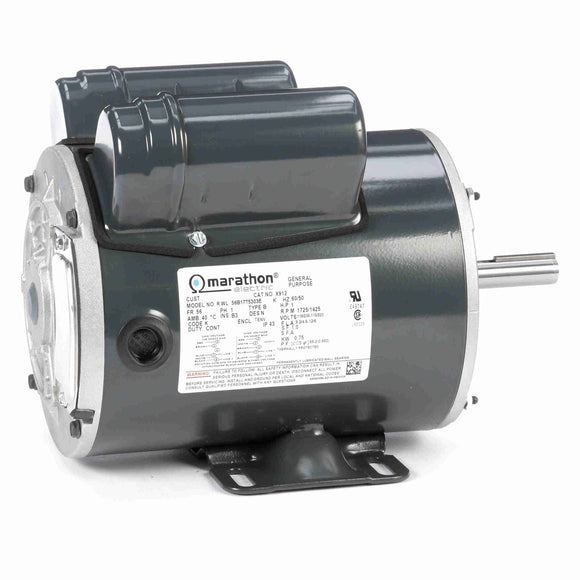

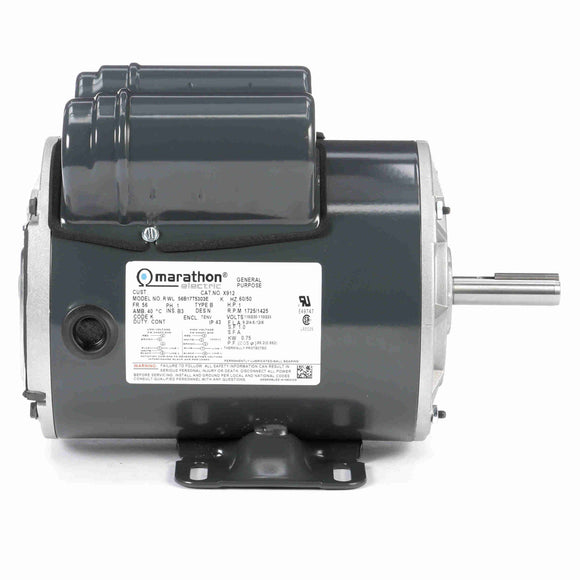

Nameplate Specifications
Nameplate Specifications
| Output HP : | 1 HP | Output KW : | 0.75 kW |
| Frequency : | 60 Hz | Voltage : | 115/230 V |
| Current : | 9.2/4.6 A | Speed : | 1725 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 81.1 % | Duty : | Continous |
| Insulation Class : | B | Design Code : | N |
| KVA Code : | K | Frame : | 56 |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | Automatic Lock Rotor Only |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 43 |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid Base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 11.44 in | Frame Length : | 7.56 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.32 in |
| Assembly/Box Mounting : | F1 Only | UPC : | 722856028099 |
| Weight : | 32.00 LB |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 17.70 | 129.00 | 1,514 | 3.40 | 1.00 | |||
| Pull-Up | 36.60 | 91.40 | 164 | 6.80 | 1.00 | |||
| Locked-Rotor | 36.60 | 117.80 | 0 | 6.80 | 1.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 1.95
- 0.130
- 0.0
- 29.0
- 1,800
- 0.0
- 0.00
- 25 %
- 2.27
- 0.308
- 60.8
- 59.0
- 1,789
- 0.0
- 11.80
- 50 %
- 2.93
- 0.499
- 75.0
- 74.0
- 1,778
- 0.0
- 23.70
- 75 %
- 3.72
- 0.702
- 79.8
- 82.0
- 1,767
- 0.0
- 35.70
- 100 %
- 4.63
- 0.918
- 81.1
- 86.2
- 1,755
- 0.0
- 47.80
- 115 %
- 5.00
- 0.972
- 77.0
- 86.0
- 1,748
- 0.0
- 55.68
- 125 %
- 5.68
- 1.150
- 81.0
- 88.0
- 1,741
- 0.0
- 60.30
- 150 %
- 6.89
- 1.410
- 79.3
- 89.0
- 1,723
- 0.0
- 73.10
- 175 %
- 8.33
- 1.710
- 76.4
- 89.3
- 1,700
- 0.0
- 86.60
- 200 %
- 10.20
- 2.100
- 71.1
- 89.5
- 1,665
- 0.0
- 101.00
