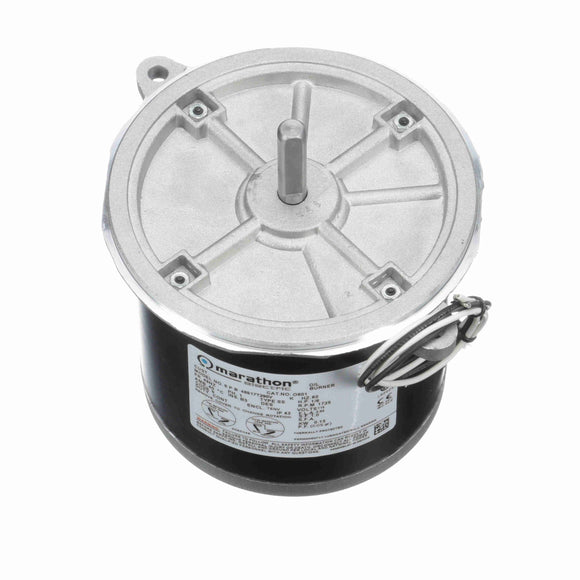

General Specifications
|
Model : |
048S17T290 |
|
Catalog No : |
O601 |
|
Part Description : |
1/6,1800,TENV,48N,1/60/115 |
|
Category : |
Single Phase |
|
Stock : |
Yes |
Nameplate Specifications
|
Output HP : |
0.17 Hp |
|
Output KW : |
0.13 kW |
|
Frequency : |
60 Hz |
|
Voltage : |
115 V |
|
Current : |
2.95 A |
|
Speed : |
1725 rpm |
|
Service Factor : |
1 |
|
Phases : |
1 |
|
Efficiency : |
58.2 % |
|
Duty : |
CONTINUOUS |
|
Insulation Class : |
B |
|
Design Code : |
NO DESIGN CODE |
|
KVA Code : |
S |
|
Frame : |
48NZ |
|
Enclosure : |
TENV |
|
Overload Protector : |
MANUAL |
|
Ambient Temperature : |
40 °C |
|
Drive End Bearing Size : |
6203 |
|
Opp Drive End Bearing Size : |
6203 |
|
UL : |
Recognized |
|
CSA : |
Y |
|
CE : |
Y |
|
IP Code : |
43 |
Technical Specifications
|
Electrical Type : |
SPLIT PHASE |
|
Starting Method : |
ACROSS THE LINE |
|
Poles : |
4 |
|
Rotation : |
SELECTIVE CW |
|
Mounting : |
ROUND |
|
Motor Orientation : |
HORIZONTAL |
|
Drive End Bearing : |
BALL |
|
Opp Drive End Bearing : |
BALL |
|
Frame Material : |
ROLLED STEEL |
|
Shaft Type : |
SGL SPL EXT |
|
Overall Length : |
7.59 in |
|
Frame Length : |
4.25 in |
|
Shaft Diameter : |
0.5 in |
|
Shaft Extension : |
1.97 in |
|
Assembly/Box Mounting : |
F1 ONLY |
|
UPC : |
722856041609 |
