Features
- Heavy gauge steel frame and base
- Capacitor start / capacitor run as noted
- Thermal protection, as noted
- 48Y and 48YZ Frame have 48/56 Frame mounting holes
General Specifications
|

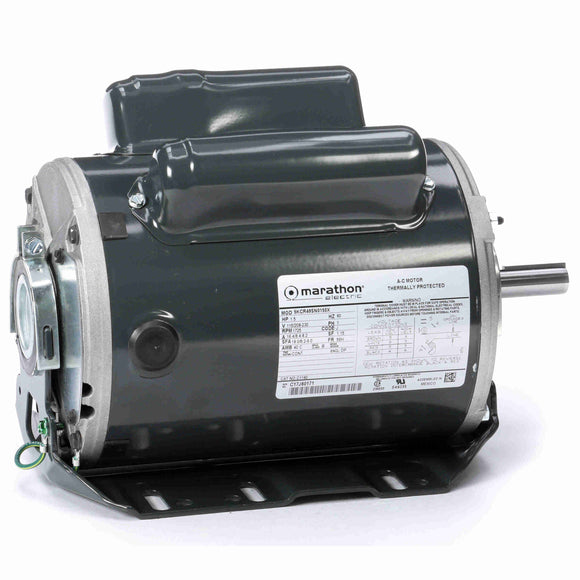

Model : |
5KCR49SN0150X |
Catalog No : |
C1160 |
|
Part Description : |
1 1/2,1725,DP,56H,1/60/115/208-230 |
Category : |
Open Drip Proof (ODP) |
|
Stock : |
Yes |
Nameplate Specifications
|
Output HP : |
1.50 Hp |
Output KW : |
1.1 kW |
|
Frequency : |
60 Hz |
Voltage : |
115/208-230 V |
|
Current : |
16.4,8.4-8.2 A |
Speed : |
1725 rpm |
|
Service Factor : |
1.15 |
Phase : |
1 |
|
Efficiency : |
77 % |
Duty : |
Continous |
|
Insulation Class : |
B |
KVA Code : |
J |
|
Frame : |
56H |
Enclosure : |
Drip Proof |
|
Overload Protector : |
AUTO |
Ambient Temperature : |
40 °C |
|
Drive End Bearing Size : |
6205 |
Opp Drive End Bearing Size : |
6203 |
|
UL : |
Recognized |
CSA : |
Yes |
|
CE : |
N |
Technical Specifications
|
Electrical Type : |
Capacitor Start Capacitor Run(CSCR) |
Starting Method : |
SM |
|
Poles : |
4 |
Rotation : |
Selective Counterclockwise |
|
Mounting : |
Resilient Base |
Motor Orientation : |
Any |
|
Drive End Bearing : |
BALL |
Opp Drive End Bearing : |
BALL |
|
Frame Material : |
Rolled Steel |
Overall Length : |
11.9 in |
|
Frame Length : |
7.68 in |
Shaft Diameter : |
0.630 in |
|
Shaft Extension : |
1.88 in |
UPC : |
722856048462 |
|
Weight : |
35.00 LB |
