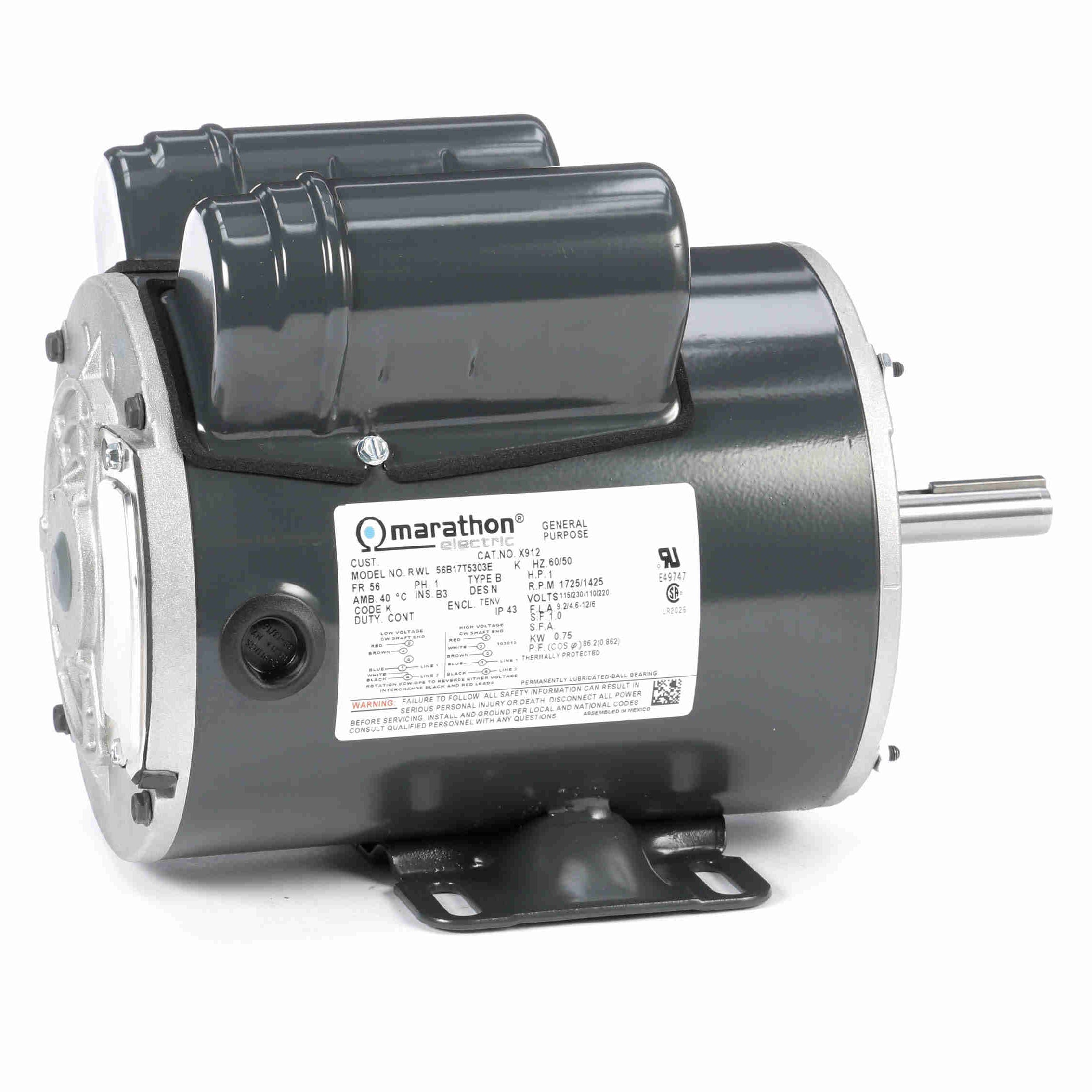

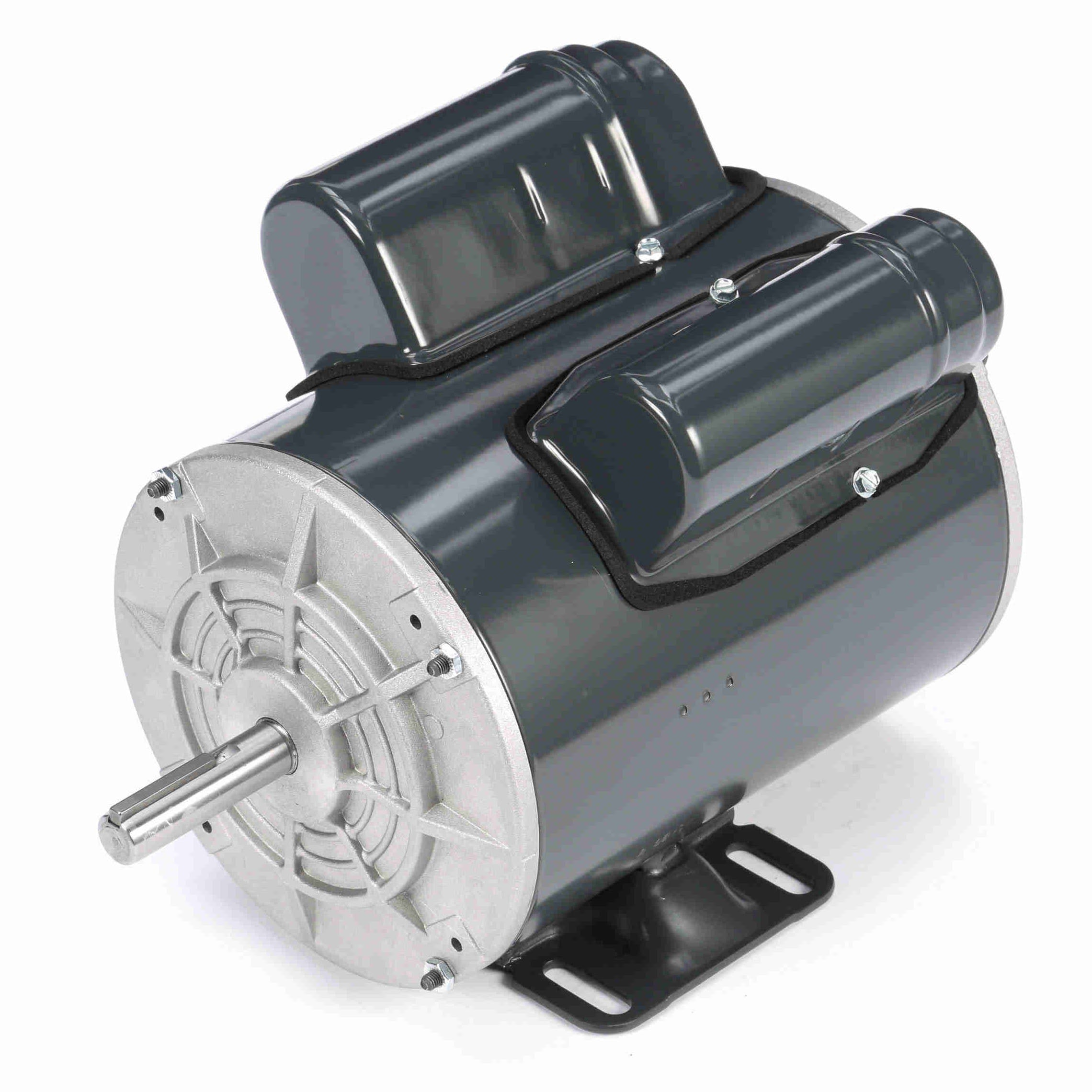

X912 Marathon 1HP Ventilation Fan Electric Motor, 1725RPM

$1,106.00

Shipping calculated at checkout

Marathon Electric (Regal Beloit Corp) SKU: X912 Barcode: 722856028099

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Capacitor start/capacitor run design
  • Automatic reset thermal protector for higher efficiency
  • Suitable for belted loads
  • Fully gasketed
  • Continuous duty
  • Capacitor start/capacitor run design for reduced amperage

General Specifications

General Specifications
Model : 056B17T5303 Catalog No : X912
Part Description : 1,1725,TEAO,56,1/60/50/115/230-110/220 Category : Single Phase
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 1 HP Output KW : 0.75 kW
Frequency : 60 Hz Voltage : 115/230 V
Current : 9.2/4.6 A Speed : 1725 RPM
Service Factor : 1 Phase : 1
Efficiency : 81.1 % Duty : Continous
Insulation Class : B Design Code : N
KVA Code : K Frame : 56
Enclosure : Totally Enclosed Non Ventilated Overload Protector : Automatic Lock Rotor Only
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Rigid Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : T
Overall Length : 11.44 in Frame Length : 7.56 in
Shaft Diameter : 0.625 in Shaft Extension : 2.32 in
Assembly/Box Mounting : F1 Only UPC : 722856028099
Weight : 32.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 17.70 129.00 1,514 3.40 1.00
Pull-Up 36.60 91.40 164 6.80 1.00
Locked-Rotor 36.60 117.80 0 6.80 1.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.95
  • 0.130
  • 0.0
  • 29.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 2.27
  • 0.308
  • 60.8
  • 59.0
  • 1,789
  • 0.0
  • 11.80
  • 50 %
  • 2.93
  • 0.499
  • 75.0
  • 74.0
  • 1,778
  • 0.0
  • 23.70
  • 75 %
  • 3.72
  • 0.702
  • 79.8
  • 82.0
  • 1,767
  • 0.0
  • 35.70
  • 100 %
  • 4.63
  • 0.918
  • 81.1
  • 86.2
  • 1,755
  • 0.0
  • 47.80
  • 115 %
  • 5.00
  • 0.972
  • 77.0
  • 86.0
  • 1,748
  • 0.0
  • 55.68
  • 125 %
  • 5.68
  • 1.150
  • 81.0
  • 88.0
  • 1,741
  • 0.0
  • 60.30
  • 150 %
  • 6.89
  • 1.410
  • 79.3
  • 89.0
  • 1,723
  • 0.0
  • 73.10
  • 175 %
  • 8.33
  • 1.710
  • 76.4
  • 89.3
  • 1,700
  • 0.0
  • 86.60
  • 200 %
  • 10.20
  • 2.100
  • 71.1
  • 89.5
  • 1,665
  • 0.0
  • 101.00
