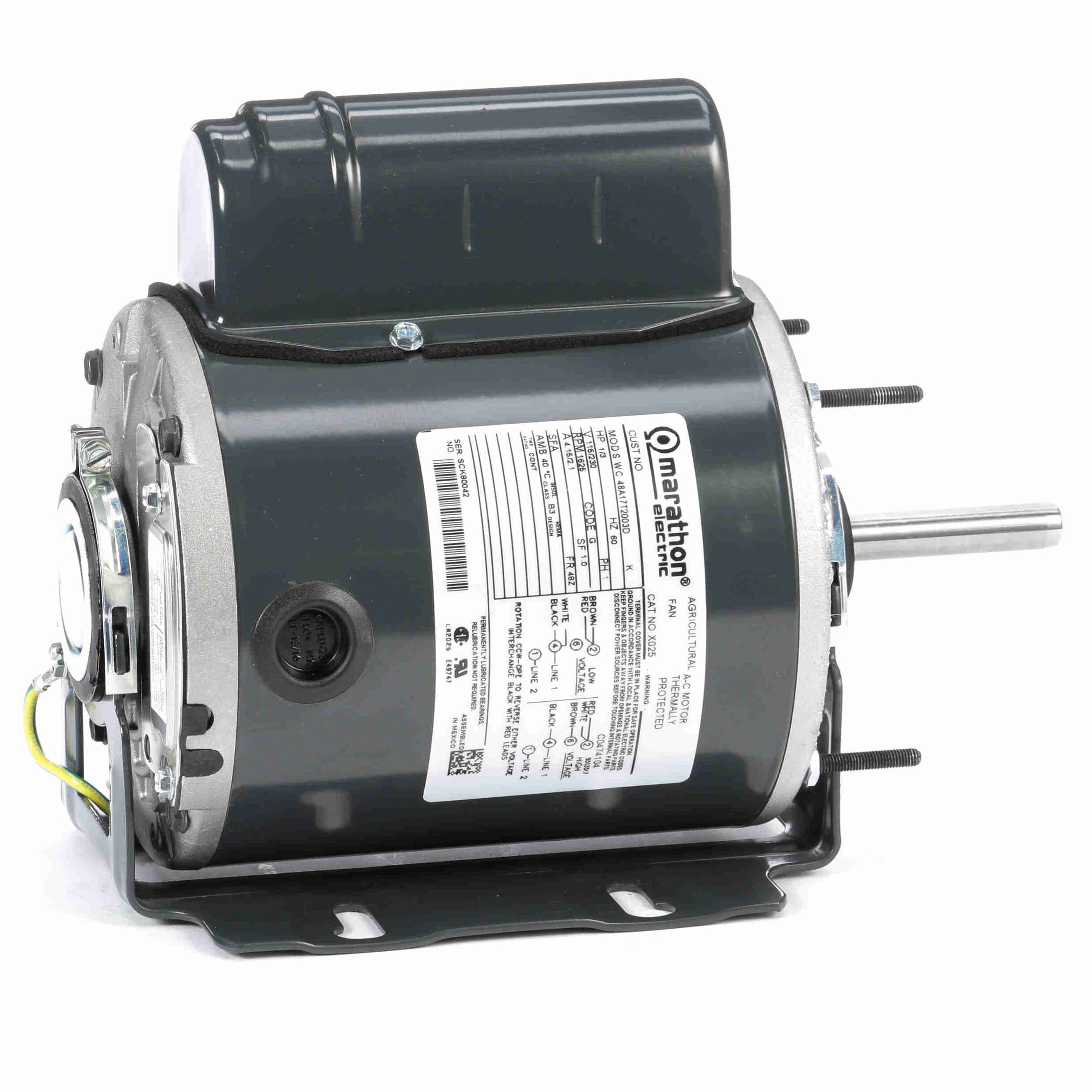

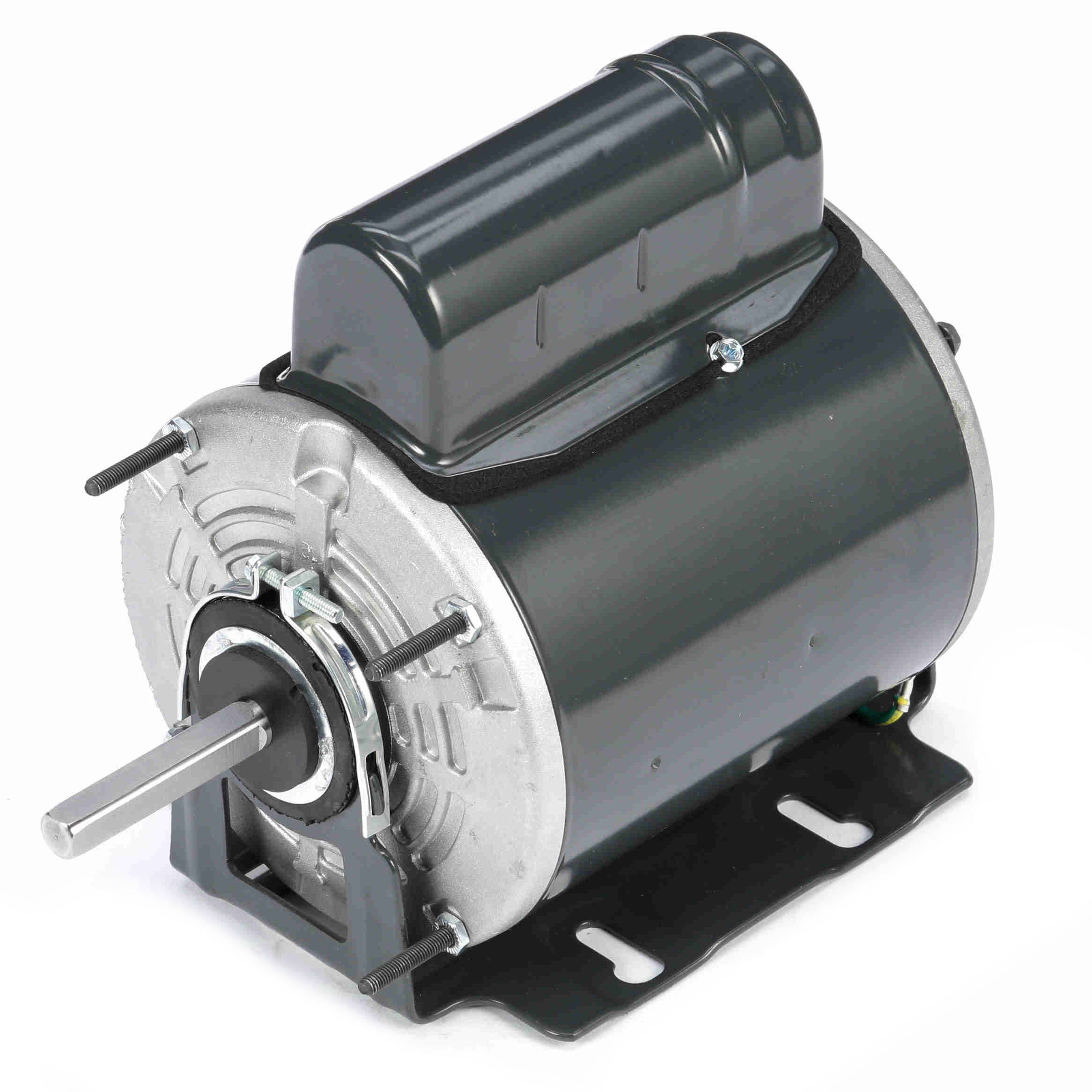

Features
Features
- Extended thru-bolts
- Fully gasketed
- 48/56 Frame mounting holes
- Continuous duty
- Automatic reset thermal protector
- 1/2” dia. x 2-1/2” long shaft with two flats, 90º apart
General Specifications
General Specifications
| Model : | 048A17T2003 | Catalog No : | X025 |
| Part Description : | 1/3,1625,TENV,48Z,1/60/115/230 | Category : | Single Phase |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.33 HP | Output KW : | 0.25 kW |
| Frequency : | 60 Hz | Voltage : | 115/230 V |
| Current : | 4.2/2.1 A | Speed : | 1625 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 68.5 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | NO DESIGN CODE |
| KVA Code : | G | Frame : | 48Z |
| Enclosure : | Totally Enclosed Air Over | Overload Protector : | Automatic Lock Rotor Only |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 43 |
Technical Specifications
Technical Specifications
| Electrical Type : | Permanent Split Capacitor | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Resilient Base - Extended Studs | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | Single Special Extension |
| Overall Length : | 10.09 in | Frame Length : | 5.50 in |
| Shaft Diameter : | 0.500 in | Shaft Extension : | 2.56 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 722856028006 |
| Weight : | 18.00 LB |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 5.60 | 269.0 | 42.40 | 259.0 | 1,336 | 1.13 | 0.0 | 0.33 |
| Pull-Up | 8.50 | 409.0 | 8.79 | 54.0 | 33 | 1.57 | 0.0 | 0.33 |
| Locked-Rotor | 8.40 | 404.0 | 9.57 | 58.0 | 0 | 1.57 | 0.0 | 0.33 |
| Full Load | 2.08 | 100.0 | 16.40 | 100.0 | 1,712 | 0.36 | 0.0 | 0.33 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 1.47
- 0.106
- 1,800
- 0.00
- 25 %
- 1.52
- 0.164
- 1,778
- 3.98
- 50 %
- 1.65
- 0.226
- 1,758
- 7.97
- 75 %
- 1.85
- 0.293
- 1,736
- 12.20
- 100 %
- 2.20
- 0.364
- 70.0
- 79.0
- 1,712
- 0.0
- 16.40
- 125 %
- 2.38
- 0.444
- 1,683
- 20.80
- 150 %
- 2.76
- 0.538
- 1,644
- 25.60
- 175 %
- 3.26
- 0.652
- 1,593
- 30.80
