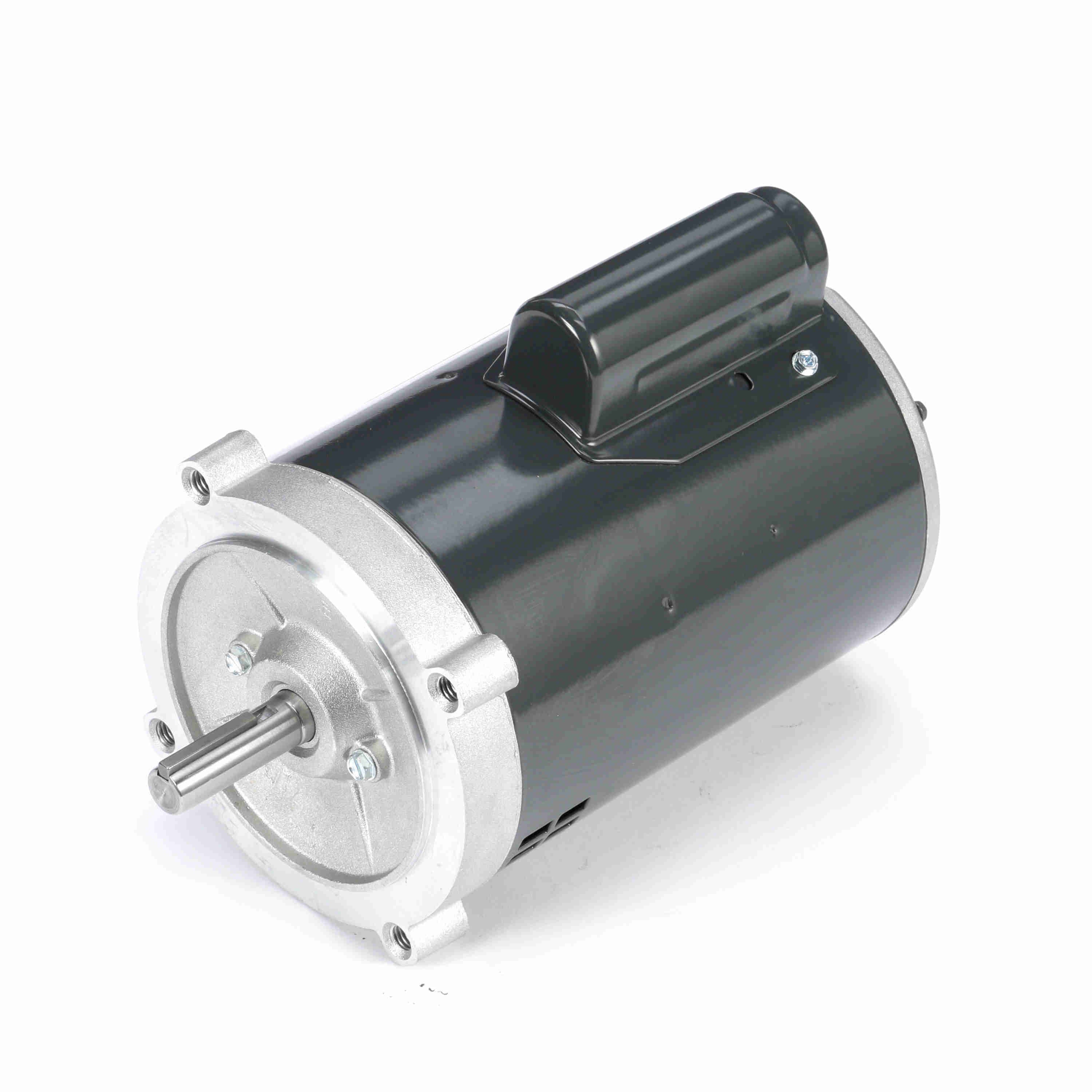

Features
Features
- Moderate starting torque
- Capacitor start induction run design
- NEMA 56C direct mounting
- NEMA Jet Pump Service Factors
General Specifications
General Specifications
| Model : | 056C34D2104 | Catalog No : | O214 |
| Part Description : | 3/4,3450,DP,56C,1/60/115/208-230 | Category : | Single Phase |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.75 Hp | Output KW : | 0.56 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 9.8/4.8-4.9 A | Speed : | 3450 rpm |
| Service Factor : | 1.5 | Phase : | 1 |
| Efficiency : | 70 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | NO DESIGN CODE |
| KVA Code : | J | Frame : | 56C |
| Enclosure : | Drip Proof | Overload Protector : | Automatic |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 22 |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Induction Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Selective Counterclockwise |
| Mounting : | Round | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 10.94 in | Frame Length : | 7.00 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.06 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 722856041685 |
| Weight : | 20.00 LB |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 14.40 | 46.40 | 3,129 | 2.80 | 0.75 | |||
| Pull-Up | 25.60 | 32.10 | 243 | 4.60 | 0.75 | |||
| Locked-Rotor | 25.60 | 35.10 | 0 | 4.60 | 0.75 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 3.20
- 0.190
- 0.0
- 25.9
- 3,600
- 0.0
- 0.00
- 25 %
- 3.40
- 0.305
- 45.8
- 40.4
- 3,576
- 0.0
- 4.40
- 50 %
- 3.60
- 0.455
- 61.9
- 55.3
- 3,559
- 0.0
- 8.90
- 75 %
- 4.10
- 0.620
- 68.3
- 66.6
- 3,540
- 0.0
- 13.40
- 100 %
- 4.90
- 0.800
- 70.0
- 74.0
- 3,520
- 40.0
- 17.90
- 125 %
- 5.40
- 0.990
- 71.5
- 79.6
- 3,494
- 0.0
- 22.60
- 150 %
- 6.60
- 1.190
- 70.5
- 82.9
- 3,460
- 75.0
- 27.30
- 175 %
- 7.40
- 1.440
- 68.0
- 85.4
- 3,425
- 0.0
- 32.20
- 200 %
- 8.80
- 1.750
- 63.9
- 86.5
- 3,370
- 0.0
- 37.40
