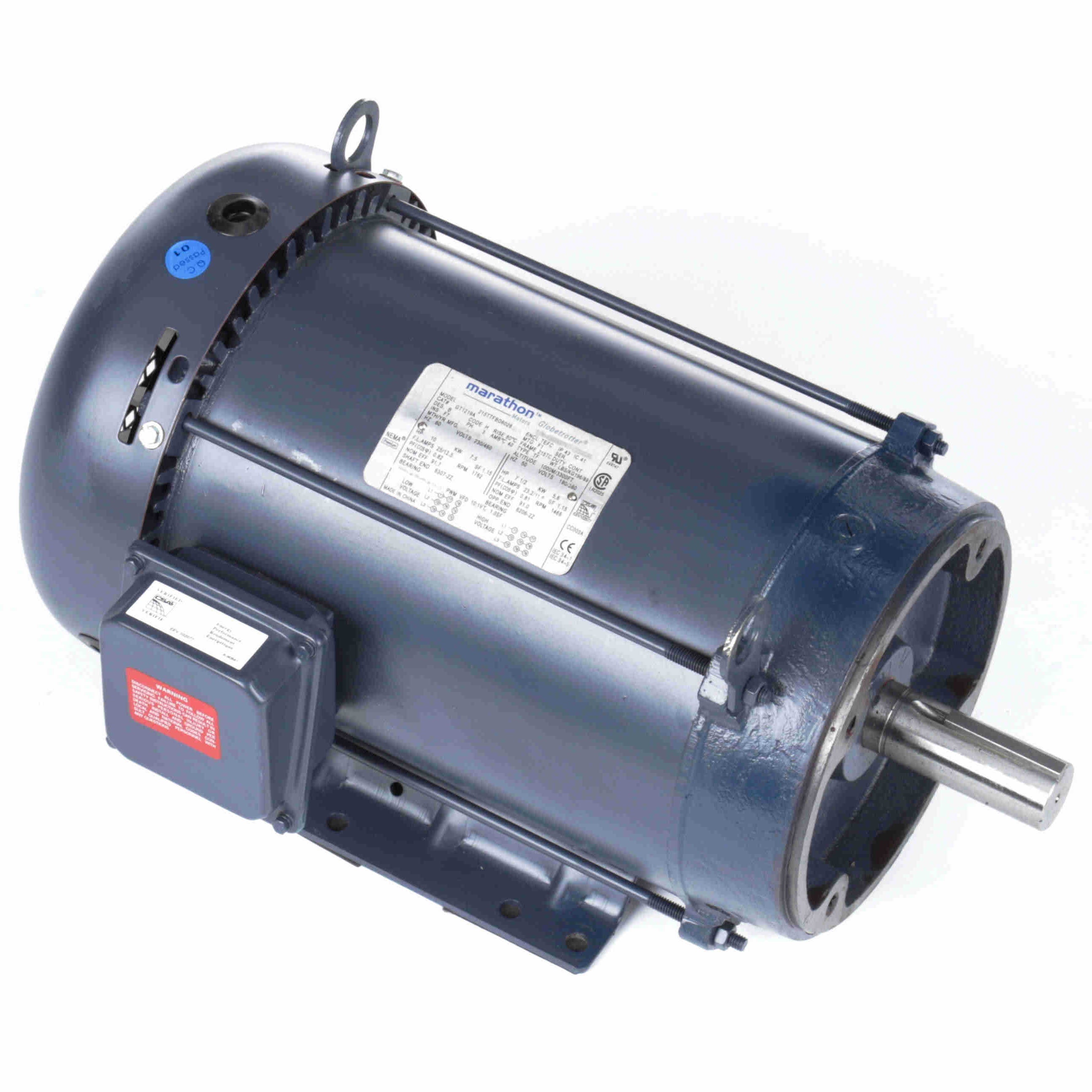

GT1219A Marathon 10HP Globetrotter Electric Motor, 1800RPM-1

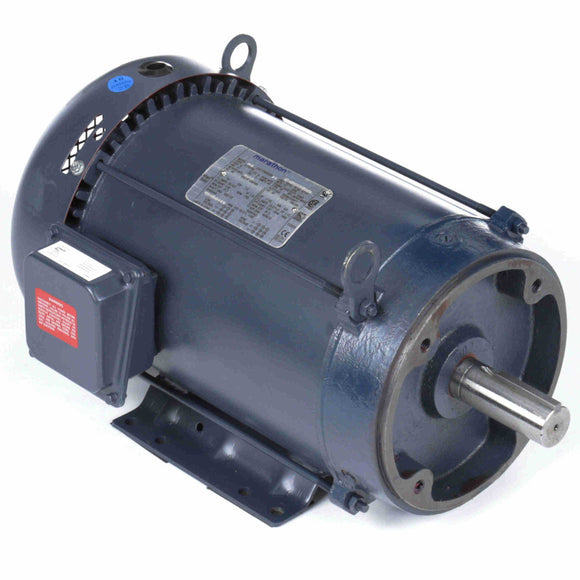

GT1219A Marathon 10HP Globetrotter Electric Motor, 1800RPM-2

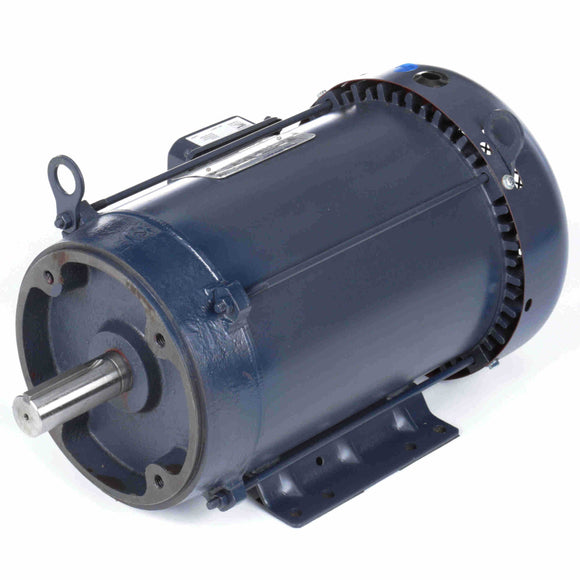

GT1219A Marathon 10HP Globetrotter Electric Motor, 1800RPM-3

GT1219A Marathon 10HP Globetrotter Electric Motor, 1800RPM

$1,599.97

Shipping calculated at checkout

Marathon Electric (Regal Beloit Corp) SKU: GT1219A Barcode: 722856061874

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • CONSTANT 10:1/VARIABLE 20:1
  • IP55 enclosure on cast iron frames
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Inverter Duty 20:1 Variable Torque and 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

General Specifications

UPC: 722856061874 Weight: 165.00 LB
Packaged Length: 23.7 IN Packaged Width: 16.07 IN
Packaged Height: 14 IN

Nameplate Specifications

Output HP: 10 Hp Output KW: 7.5 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 27.3-25.0/12.5 A Speed: 1762 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 91.7 % Power Factor: 81.3
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: H
Frame: 215TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6307 Opp Drive End Bearing Size: 6206
UL: Listed CSA: Y
CE: Y IP Code: 43
Hazardous Location: DIVISION 2 T2B

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 1.155 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 20.70 in
Frame Length: 21.26 in Shaft Diameter: 1.375 in
Shaft Extension: 3.38 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 79.00 632.0 59.00 198.0 0 0.00 44.0 10.00
Full Load 12.50 100.0 29.80 100.0 1,762 0.00 81.5 10.00
Pull-Up 73.00 584.0 51.00 171.0 900 0.00 0.0 10.00
Break-Down 45.00 360.0 74.00 248.0 1,565 0.00 68.0 10.00
No Load 6.00 48.0 0.00 0.0 1,800 0.00 6.0 10.00
2/3 65.00 520.0 62.00 208.0 1,200 0.00 0.0 10.00
1/3 76.00 608.0 49.00 164.0 600 0.00 0.0 10.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 5.60 6.20 7.80 10.00 12.50 14.30 15.50
Rated Output (KW) 0.40 2.10 4.10 6.10 8.10 9.50 10.40
Efficiency (%) 0.0 88.5 90.8 91.6 92.1 90.3 89.5
Power Factor (%) 9.0 42.5 66.0 76.6 81.3 83.4 84.2
Speed (RPM) 1,800 1,792 1,782 1,772 1,762 1,756 1,752
Temp. Rise @ FL 0.0 0.0 0.0 0.0 70.0 90.0 0.0
Torque (LB-FT) 0.00 7.30 14.70 22.20 29.80 34.40 37.40
