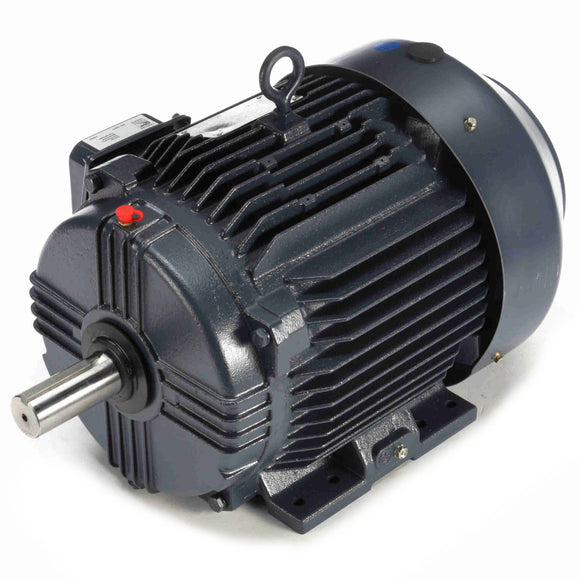

GT1018A Marathon 10HP Globetrotter Electric Motor, 3600RPM-1

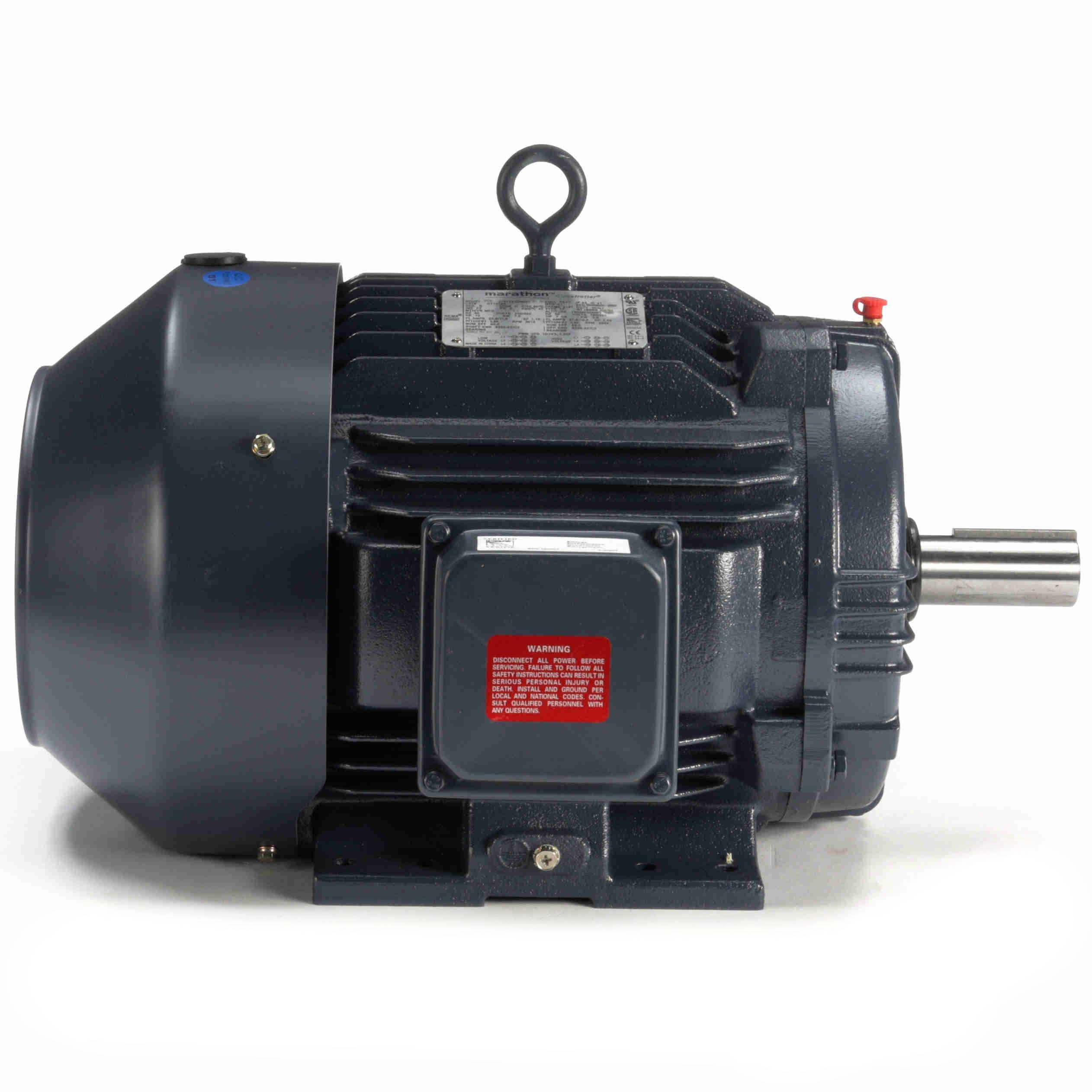

GT1018A Marathon 10HP Globetrotter Electric Motor, 3600RPM-2

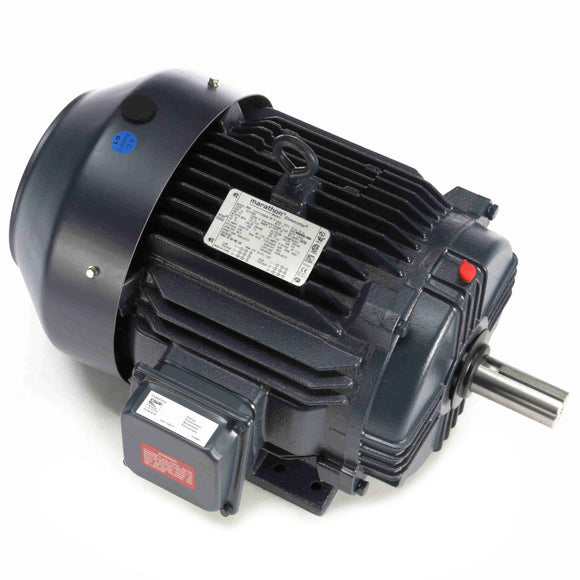

GT1018A Marathon 10HP Globetrotter Electric Motor, 3600RPM-3

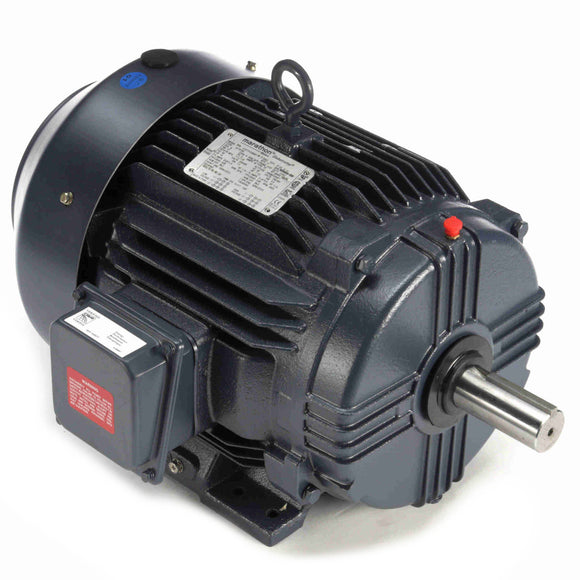

GT1018A Marathon 10HP Globetrotter Electric Motor, 3600RPM

$1,699.97

Shipping calculated at checkout

Marathon Electric (Regal Beloit Corp) SKU: GT1018A Barcode: 722856066893

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2011
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.
  • C-face addition may result in non-NEMA "BA" dim. For new "BA" dim consult chart found in modificaiton section

General Specifications

UPC: 722856066893 Weight: 171.00 LB
Packaged Length: 23 IN Packaged Width: 17.25 IN
Packaged Height: 16 IN

Nameplate Specifications

Output HP: 10 Hp Output KW: 7.5 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 23.6/11.8 A Speed: 3518 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 90.2 % Power Factor: 88
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 215T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6308 Opp Drive End Bearing Size: 6208
UL: Listed CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 1.218 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 20.03 in
Shaft Diameter: 1.375 in Shaft Extension: 3.38 in
Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 11.80 100.0 14.90 100.0 3,518 0.00 89.0 10.00
Pull-Up 67.00 568.0 24.00 161.0 1,800 0.00 0.0 10.00
No Load 3.90 33.0 0.00 0.0 3,600 0.00 10.5 10.00
Locked-Rotor 79.00 669.0 28.00 188.0 0 0.00 45.0 10.00
1/3 72.00 610.0 23.00 154.0 1,200 0.00 0.0 10.00
2/3 60.00 508.0 30.00 201.0 2,400 0.00 0.0 10.00
Break-Down 44.00 373.0 41.00 275.0 3,125 0.00 74.0 10.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 3.90 4.80 6.80 9.20 11.80 13.50 14.70
Rated Output (KW) 0.40 2.20 4.10 6.20 8.30 9.50 10.40
Efficiency (%) 0.0 85.5 91.4 89.9 90.2 89.9 89.9
Power Factor (%) 12.9 57.5 76.0 84.5 88.0 88.0 88.5
Speed (RPM) 3,600 3,580 3,560 3,540 3,518 3,502 3,492
Temp. Rise @ FL 0.0 0.0 0.0 0.0 55.0 75.0 0.0
Torque (ft-lbs) 0.00 3.70 7.40 11.10 14.90 17.30 18.90
