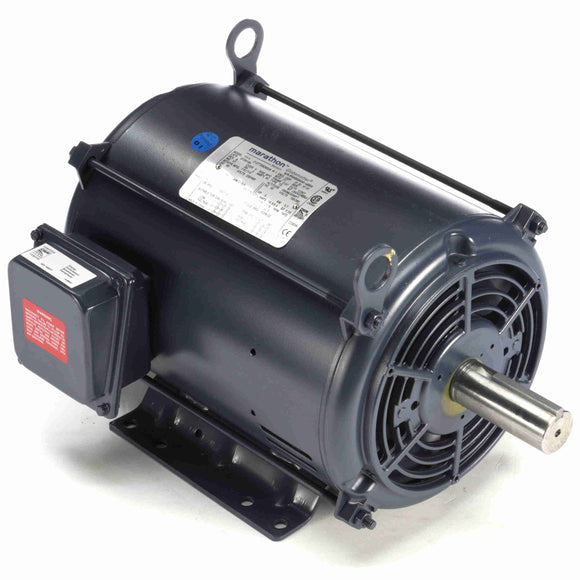

GT0016A Marathon 7.5HP Globetrotter Electric Motor, 1800RPM

$1,349.97 USD

Shipping calculated at checkout

Marathon Electric SKU: GT0016A Barcode: 722856060150

30 Day
Return Policy

Ships Fast
in 24 hours

DP, 213T Frame, 230/460VAC 3-Phase 60Hz, 213TTDBD6026, Foot Mount, Rolled Steel, 1-3/8" Shaft

Description Product Specs Manufacturer





Features




Features


  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007

  • 182T-365T models steel frame, 404T-449T models cast iron frame

  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque

  • Class F Insulation

  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.






General Specifications





General Specifications






























Model :
213TTDBD6026
Catalog No :
GT0016A

Part Description :
7 1/2,1800,DP,213T,3/60/230/460
Category :
Open Drip Proof (ODP)

Stock :
Yes






Nameplate Specifications





Nameplate Specifications








































































Output HP :
7.50 HP
Output KW :
5.6 kW

Frequency :
60 Hz
Voltage :
230/460 V

Current :
19.8/9.9 A
Speed :
1766 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
91 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
H
Frame :
213T

Enclosure :
Drip Proof
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6307

Opp Drive End Bearing Size :
6206
UL :
Recognized

CSA :
Y
CE :
Y

IP Code :
22






Technical Specifications





Technical Specifications






















































Electrical Type :
Squirrel Cage Inverter Rated
Starting Method :
Line Or Inverter

Poles :
4
Rotation :
Reversible

Mounting :
Rigid Base
Motor Orientation :
Horizontal

Drive End Bearing :
Ball
Opp Drive End Bearing :
Ball

Frame Material :
Rolled Steel
Shaft Type :
T

Overall Length :
17.52 in
Shaft Diameter :
1.375 in

Shaft Extension :
3.38 in
Assembly/Box Mounting :
F1/F2 CAPABLE

UPC :
722856060150
Weight :
133.00 LB






Speed & Load Characteristics





Speed Characteristics
































































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Pull-Up
54.00 545.0 37.50 168.0 900 0.00 0.0 7.50

2/3
49.00 495.0 46.00 206.0 1,200 0.00 0.0 7.50

No Load
5.00 51.0 0.00 0.0 1,800 0.00 6.0 7.50

Full Load
9.90 100.0 22.30 100.0 1,766 0.00 79.0 7.50

Break-Down
34.00 343.0 57.00 256.0 1,585 0.00 68.0 7.50

1/3
57.00 576.0 37.00 166.0 600 0.00 0.0 7.50

Locked-Rotor
60.00 606.0 44.00 197.0 0 0.00 45.0 7.50





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 5.00

  • 0.450

  • 0.0

  • 11.3

  • 1,800

  • 0.0

  • 0.00





  • 25 %

  • 5.40

  • 1.600

  • 87.5

  • 37.2

  • 1,792

  • 0.0

  • 5.50





  • 50 %

  • 6.40

  • 3.100

  • 90.0

  • 60.8

  • 1,785

  • 0.0

  • 11.00





  • 75 %

  • 8.00

  • 4.600

  • 91.5

  • 72.2

  • 1,775

  • 0.0

  • 16.70





  • 100 %

  • 9.90

  • 6.100

  • 91.0

  • 77.3

  • 1,766

  • 40.0

  • 22.30





  • 115 %

  • 11.20

  • 7.100

  • 90.8

  • 79.6

  • 1,760

  • 55.0

  • 25.80





  • 125 %

  • 12.10

  • 7.800

  • 89.5

  • 80.9

  • 1,755

  • 65.0

  • 28.00








  • Electric Motor
  • 213T
  • DP
  • 3-Phase
  • 7.5HP
  • 1800RPM
