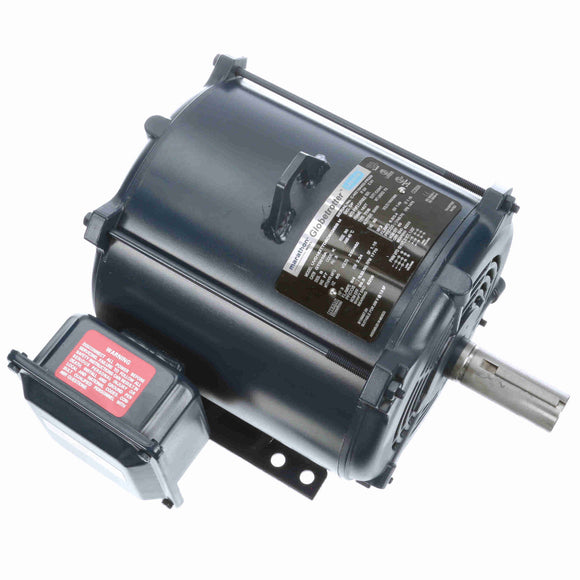

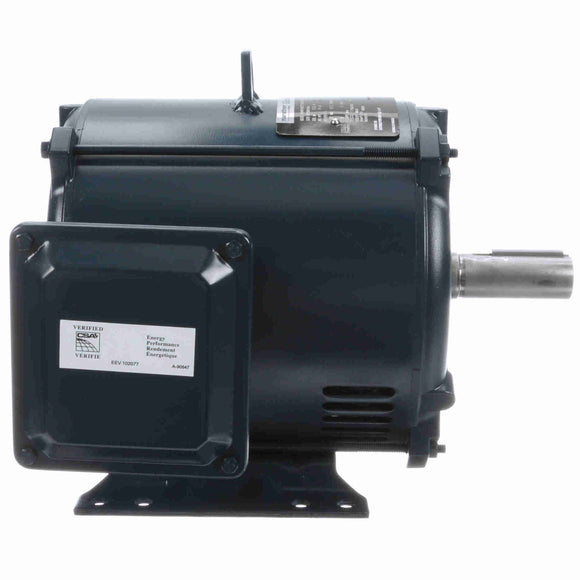

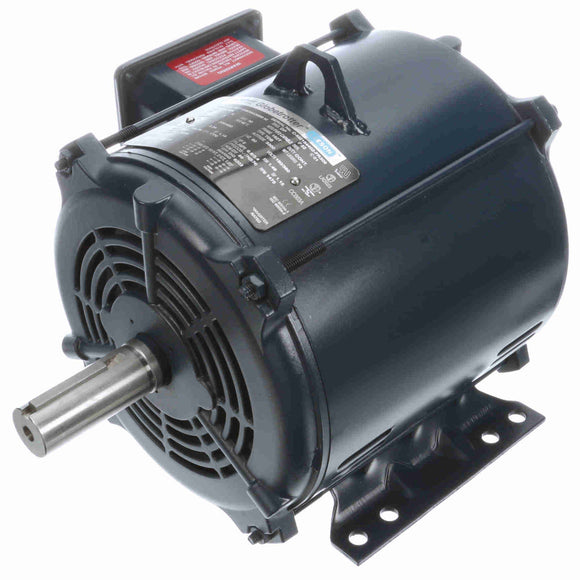

GT0010A Marathon 3HP Globetrotter Electric Motor, 1800RPM

$879.97

Shipping calculated at checkout

Marathon Electric (Regal Beloit Corp) SKU: GT0010A Barcode: 722856068804

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Meets or exceeds NEMA Premium® efficiencies
  • Inverter duty 10:1 variable torque and 2:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Class F insulation
  • Standard assembly F1, reversible to F2 assembly
  • Dual frame mounting holes

General Specifications

UPC: 722856068804 Weight: 73.00 LB
Packaged Length: 15.07 IN Packaged Width: 14.37 IN
Packaged Height: 12.83 IN

Nameplate Specifications

Output HP: 3 Hp Output KW: 2.2 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 8.0/4.0 A Speed: 1770 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 89.5 % Power Factor: 78.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 182T Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 4.12 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Shaft Diameter: 1.125 in
Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
1/3 28.00 700.0 15.00 170.0 600 0.00 0.0 3.00
2/3 23.00 575.0 19.00 215.0 1,200 0.00 0.0 3.00
Full Load 4.00 100.0 8.90 100.0 1,770 0.00 78.5 3.00
Break-Down 18.50 460.0 26.70 300.0 1,550 0.00 72.0 3.00
Pull-Up 26.00 650.0 15.30 175.0 900 0.00 0.0 3.00
No Load 2.20 56.0 0.00 0.0 1,800 0.00 7.2 3.00
Locked-Rotor 32.00 800.0 18.20 205.0 0 0.00 49.0 3.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 2.20 2.40 2.80 3.30 4.00 4.50 4.80
Rated Output (KW) 0.12 0.68 1.20 1.90 2.50 2.90 3.10
Efficiency (%) 0.0 81.5 88.0 89.5 89.5 89.5 89.5
Power Factor (%) 7.2 37.0 58.0 71.0 78.5 81.5 82.5
Speed (RPM) 1,800 1,790 1,785 1,776 1,770 1,762 1,760
Temp. Rise @ FL 0.0 0.0 0.0 0.0 30.0 40.0 50.0
Torque (ft-lbs) 0.00 2.20 4.40 6.70 9.00 10.30 11.30
