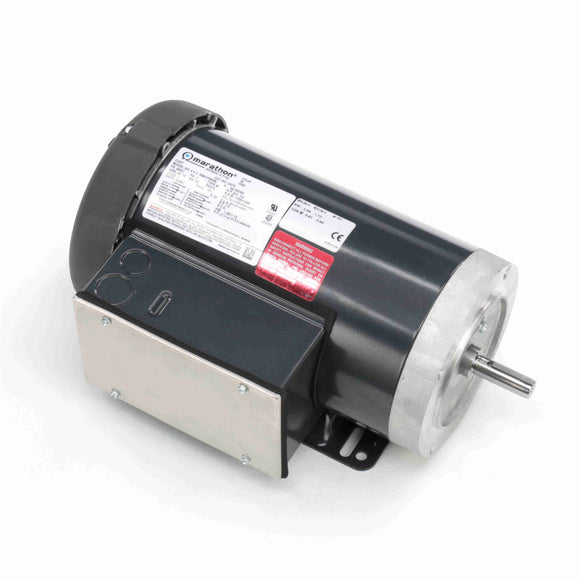

G575 Marathon 2HP Electric Motor, 1800RPM-1
G575 Marathon 2HP Electric Motor, 1800RPM-2

G575 Marathon 2HP Electric Motor, 1800RPM

$1,618.00

Shipping calculated at checkout

Marathon Electric (Regal Beloit Corp) SKU: G575 Barcode: 722856009500

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Double sealed ball bearings, mechanically locked on shaft end
  • Heavy gauge steel constructions
  • Bolt-on, removable rigid base
  • Suitable for horizontal or vertical mounting
  • Capacitor start design for high starting torque
  • Capacitor start/capacitor run design for higher efficiency, as noted
  • Will accept brake kits, see Accessory section
  • Will accept drip cover kits, see Accessories section

General Specifications

General Specifications
Model : 056B17F5306 Catalog No : G575
Part Description : 2,1725,TEFC,56HC,1/60/115/208-230 Category : Totally Enclosed Fan Cooled (TEFC)
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 2 Hp Output KW : 1.5 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 20.0/10.8-10.0 A Speed : 1725 rpm
Service Factor : 1 Phase : 1
Efficiency : 80 % Duty : Continous
Insulation Class : F Design Code : N
KVA Code : L Frame : 56HC
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : Y
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Bolt-on Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 14.81 in Frame Length : 9.56 in
Shaft Diameter : 0.625 in Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 Only UPC : 722856009500
Weight : 51.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 10.00 100.0 6.02 100.0 1,745 1.87 0.0 2.00
Locked-Rotor 68.00 680.0 19.40 322.0 0 13.50 0.0 2.00
Pull-Up 49.00 490.0 11.80 196.0 1,221 8.50 0.0 2.00
Break-Down 37.70 377.0 15.70 261.0 1,507 7.10 0.0 2.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.97
  • 0.229
  • 0.0
  • 20.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 5.49
  • 0.575
  • 64.3
  • 45.5
  • 1,784
  • 0.0
  • 1.46
  • 50 %
  • 6.69
  • 0.980
  • 76.2
  • 63.7
  • 1,771
  • 0.0
  • 2.97
  • 75 %
  • 8.28
  • 1.390
  • 80.2
  • 73.0
  • 1,760
  • 0.0
  • 4.46
  • 100 %
  • 10.00
  • 1.865
  • 80.0
  • 81.0
  • 1,745
  • 80.0
  • 6.02
  • 115 %
  • 11.40
  • 2.160
  • 79.2
  • 82.4
  • 1,738
  • 115.0
  • 6.93
  • 125 %
  • 12.40
  • 2.370
  • 78.4
  • 83.1
  • 1,730
  • 0.0
  • 7.56
  • 150 %
  • 15.10
  • 2.920
  • 76.6
  • 84.1
  • 1,709
  • 0.0
  • 9.22
  • 175 %
  • 18.20
  • 3.620
  • 72.0
  • 86.5
  • 1,684
  • 0.0
  • 10.90
  • 200 %
  • 22.70
  • 4.480
  • 66.6
  • 85.8
  • 1,642
  • 0.0
  • 12.80
