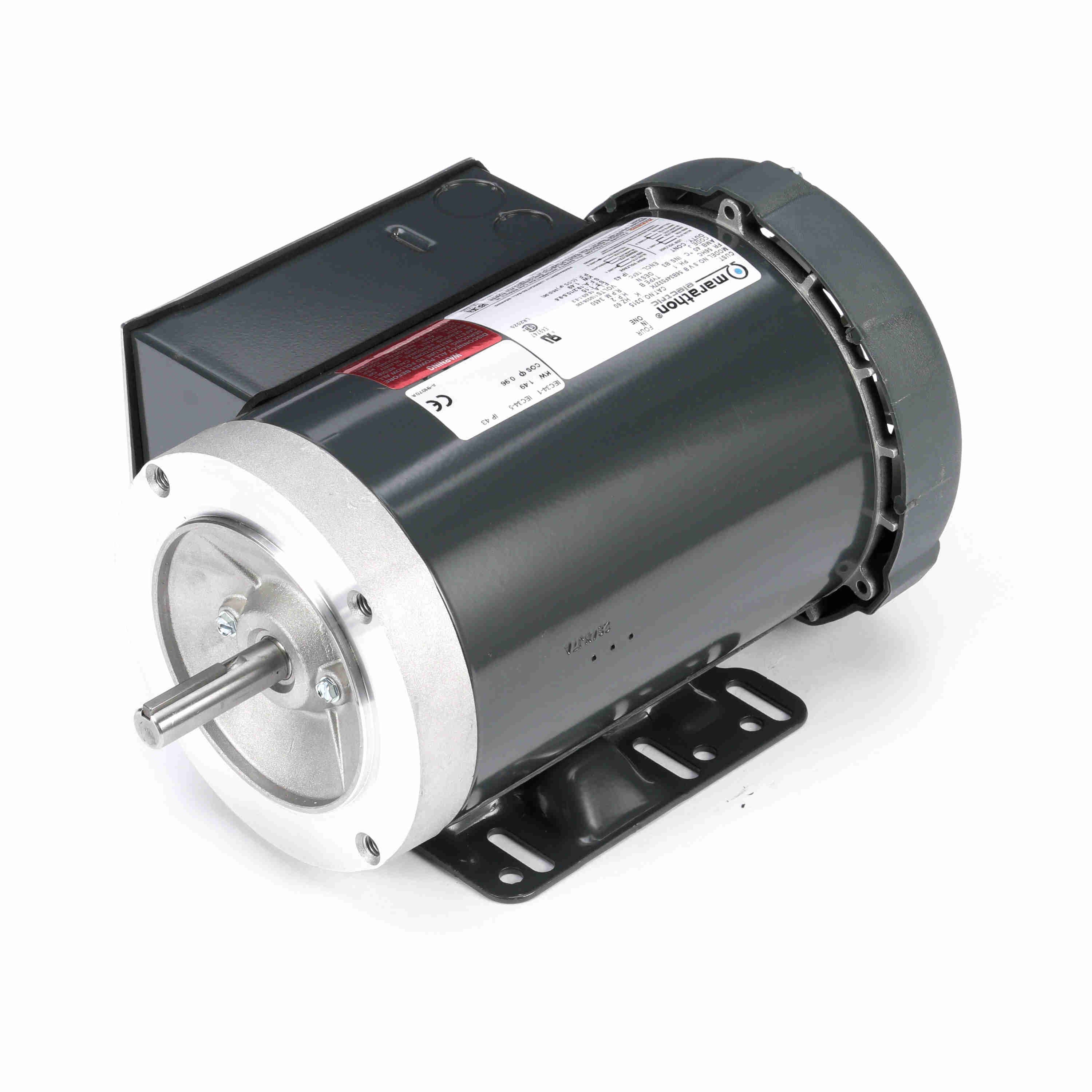

D315 Marathon 2HP General Purpose Electric Motor, 3600RPM-1

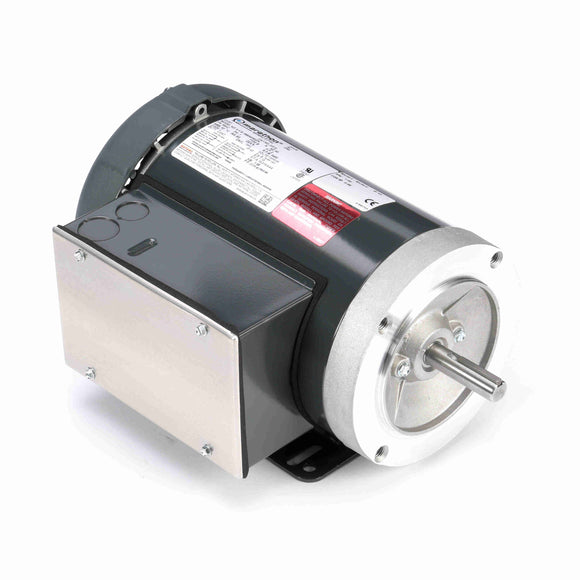

D315 Marathon 2HP General Purpose Electric Motor, 3600RPM-2

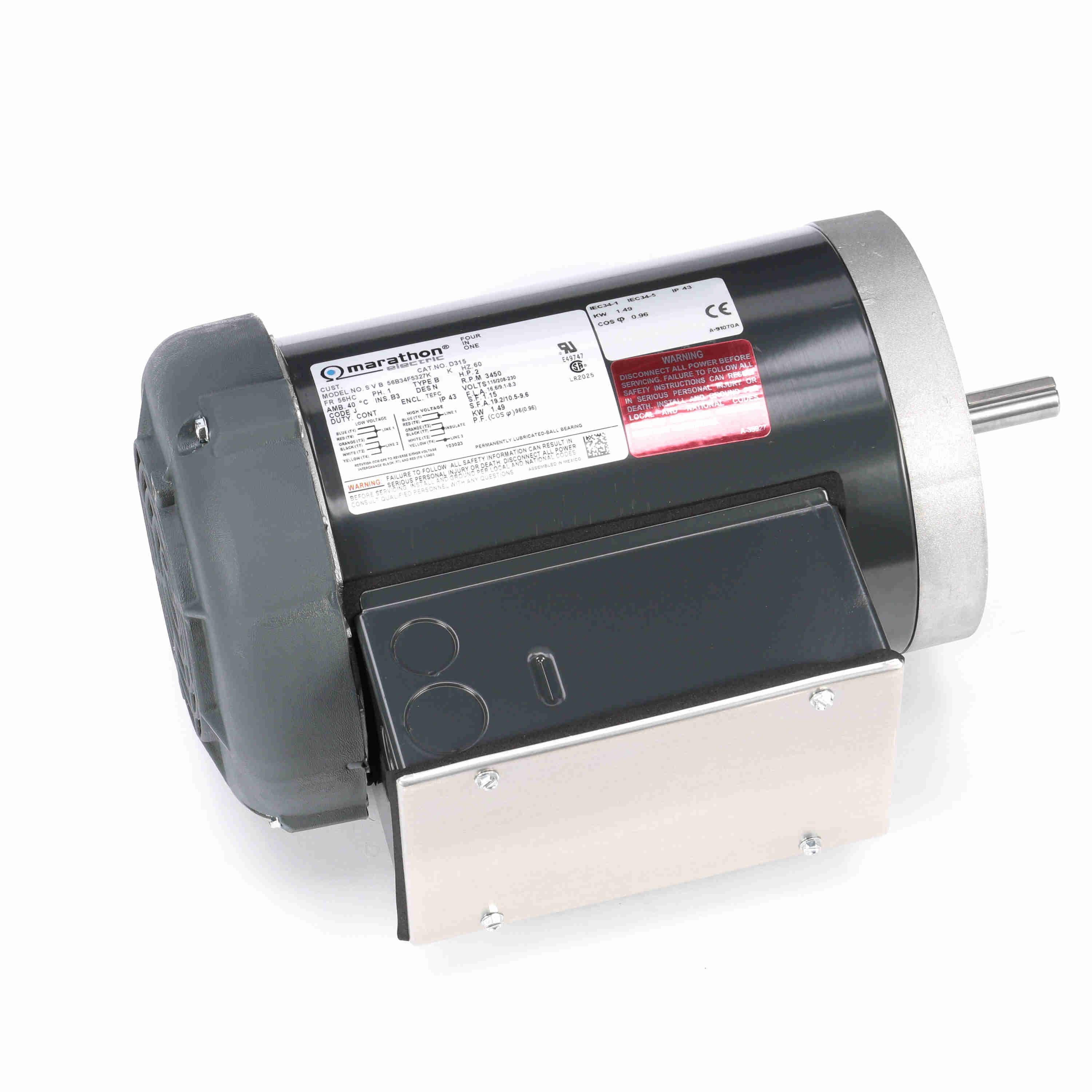

D315 Marathon 2HP General Purpose Electric Motor, 3600RPM-3
D315 Marathon 2HP General Purpose Electric Motor, 3600RPM-4

D315 Marathon 2HP General Purpose Electric Motor, 3600RPM

$1,345.00

Shipping calculated at checkout

Marathon Electric (Regal Beloit Corp) SKU: D315 Barcode: 722856009432

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Double sealed ball bearings, mechanically locked on shaft end
  • Heavy gauge steel constructions
  • Bolt-on, removable rigid base
  • Suitable for horizontal or vertical mounting
  • Capacitor start design for high starting torque
  • Capacitor start/capacitor run design for higher efficiency, as noted
  • Will accept brake kits, see Accessory section
  • Will accept drip cover kits, see Accessories section

General Specifications

General Specifications
Model : 056B34F5327 Catalog No : D315
Part Description : 2,3450,TEFC,56HC,1/60/115/208-230 Category : Totally Enclosed Fan Cooled (TEFC)
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 2 HP Output KW : 1.5 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 16.6/9.4-8.3 A Speed : 3450 RPM
Service Factor : 1.15 Phase : 1
Efficiency : 79 % Duty : Continous
Insulation Class : B Design Code : N
KVA Code : J Frame : 56HC
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : Y
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 2 Rotation : Selective Counterclockwise
Mounting : Bolt-on Base Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 13.31 in Frame Length : 8.06 in
Shaft Diameter : 0.625 in Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 Only UPC : 722856009432
Weight : 38.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 61.10 736.0 6.72 226.0 229 11.40 0.0 2.00
Locked-Rotor 61.30 739.0 7.37 247.0 0 11.30 0.0 2.00
Break-Down 32.10 387.0 7.73 259.0 3,114 6.50 0.0 2.00
Full Load 8.30 100.0 2.98 100.0 3,500 1.89 0.0 2.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.10
  • 0.315
  • 0.0
  • 65.2
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 3.30
  • 0.670
  • 56.1
  • 88.3
  • 3,577
  • 0.0
  • 0.74
  • 50 %
  • 4.90
  • 1.050
  • 70.8
  • 93.2
  • 3,555
  • 0.0
  • 1.47
  • 75 %
  • 6.65
  • 1.460
  • 76.4
  • 95.5
  • 3,530
  • 0.0
  • 2.22
  • 100 %
  • 8.30
  • 1.890
  • 78.5
  • 96.0
  • 3,510
  • 59.0
  • 2.98
  • 115 %
  • 9.60
  • 2.170
  • 79.0
  • 98.3
  • 3,500
  • 80.0
  • 3.45
  • 125 %
  • 10.70
  • 2.360
  • 79.2
  • 95.9
  • 3,489
  • 0.0
  • 3.77
  • 150 %
  • 13.10
  • 2.880
  • 77.7
  • 95.6
  • 3,456
  • 0.0
  • 4.56
  • 175 %
  • 16.00
  • 3.490
  • 74.7
  • 94.8
  • 3,413
  • 0.0
  • 5.38
  • 200 %
  • 20.10
  • 4.300
  • 69.4
  • 93.0
  • 3,341
  • 0.0
  • 6.29
