Features
- Double sealed ball bearings, mechanically locked on shaft end
- Capacitor start/capacitor run design for higher efficiency, as noted
- Fixed CW rotation, viewed opposite shaft end
- Automatic reset thermal protector
- 56J = 416 stainless steel threaded shaft with slinger
- Drip cover not included, see Accessories Section
General Specifications

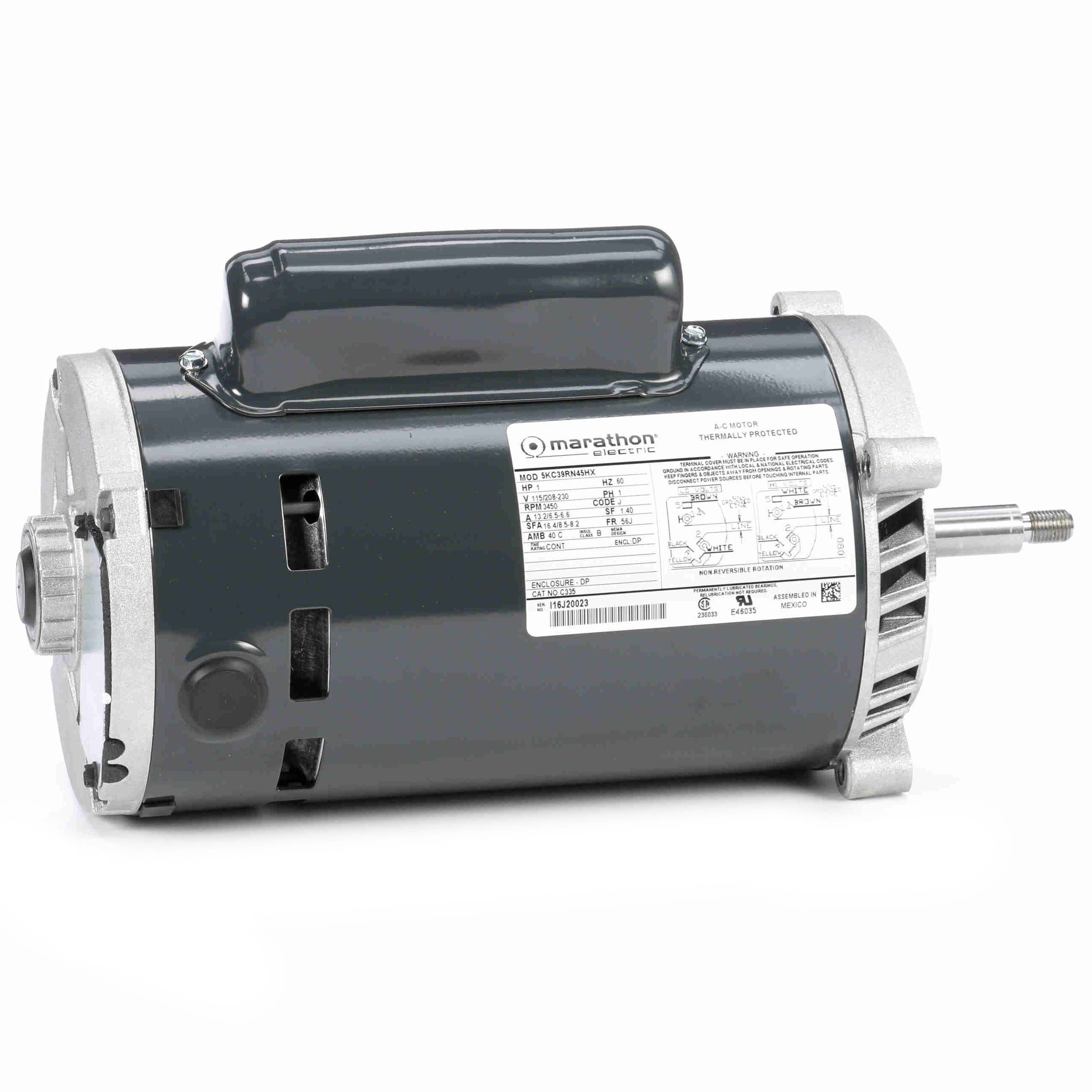

| Model : | 5KC39RN45X | Catalog No : | C335 |
| Part Description : | 1,3450,DP,56J,1/60/115/230 | Category : | Single Phase |
| Stock : | Yes |
Nameplate Specifications
| Output HP : | 1 Hp | Output KW : | 0.75 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 13.2,6.5-6.6 A | Speed : | 3450 rpm |
| Service Factor : | 1.4 | Phase : | 1 |
| Efficiency : | 68.1 % | Duty : | Continous |
| Insulation Class : | B | KVA Code : | J |
| Frame : | 56J | Enclosure : | Drip Proof |
| Overload Protector : | AUTO | Ambient Temperature : | 40 °C |
| Drive End Bearing Size : | 6203 | Opp Drive End Bearing Size : | 6203 |
| UL : | Recognized | CSA : | Yes |
| CE : | N |
Technical Specifications
| Electrical Type : | Capacitor start(CSIR) | Starting Method : | SM |
| Poles : | 2 | Rotation : | Clockwise |
| Mounting : | Round | Motor Orientation : | Any |
| Drive End Bearing : | LOCKED | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Overall Length : | 13.14 in |
| Frame Length : | 8.50 in | Shaft Diameter : | 0.630 in |
| Shaft Extension : | 2.39 in | UPC : | 722856032119 |
| Weight : | 22.00 LB |
