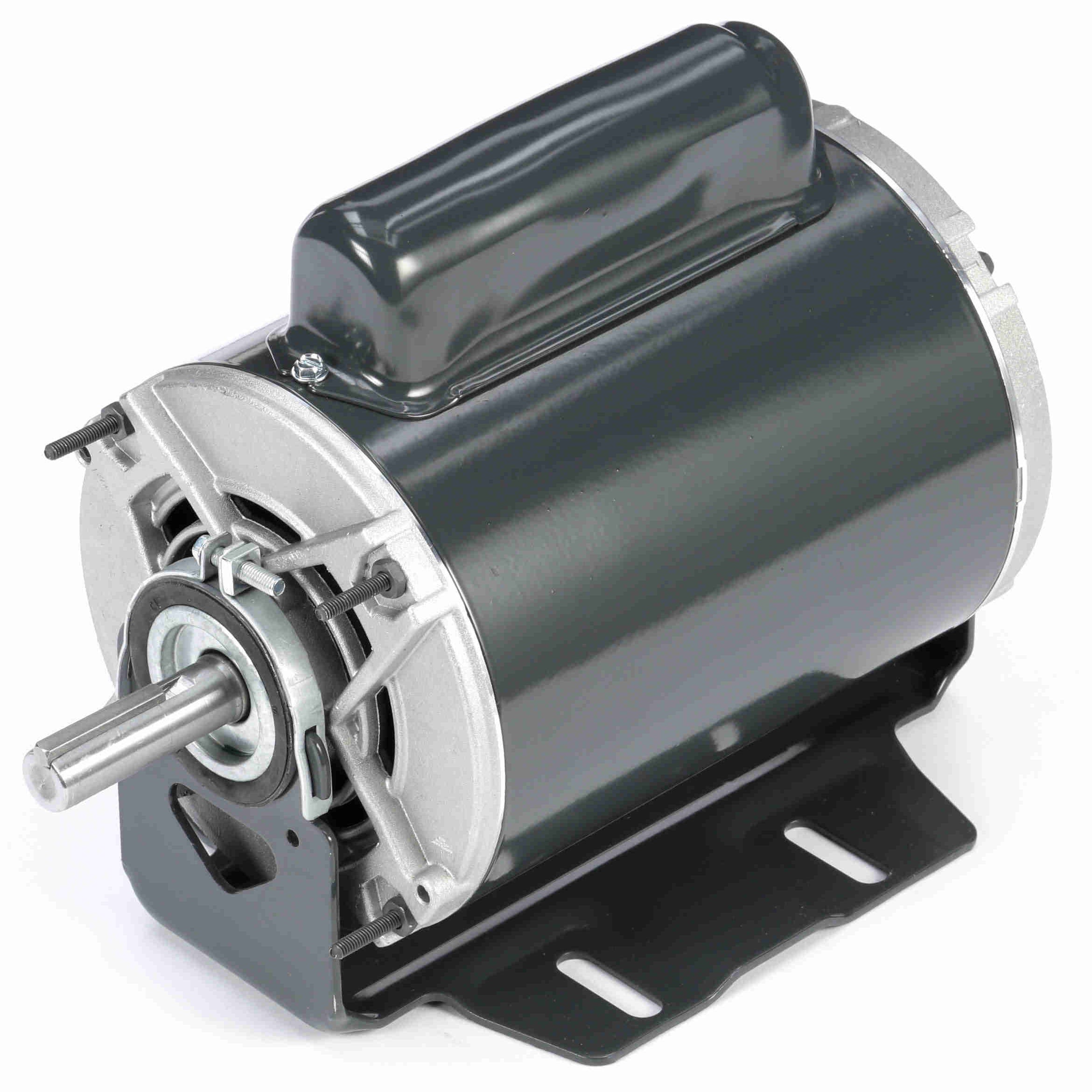

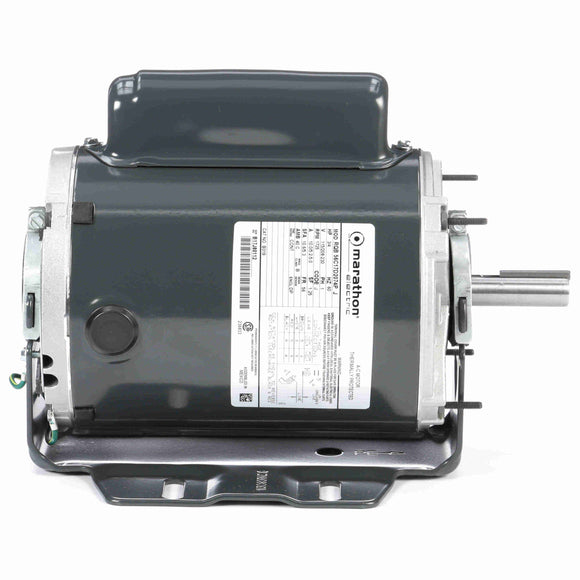

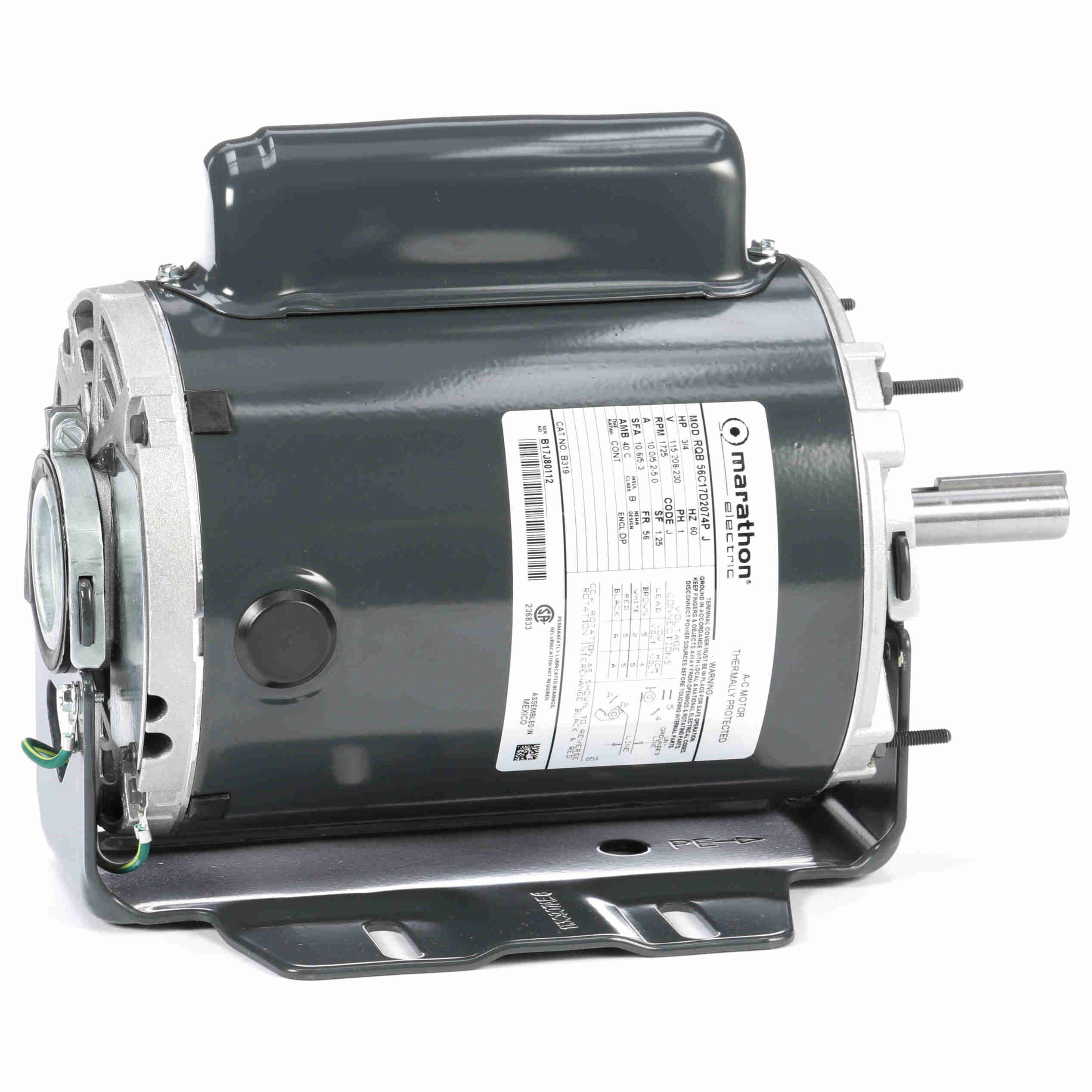

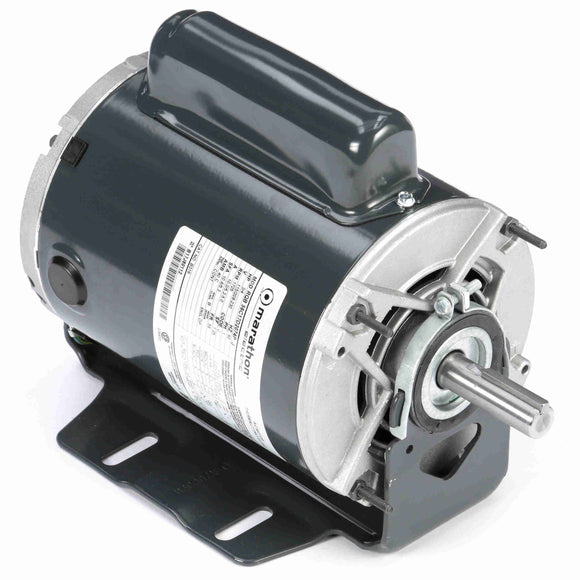

Features
- Heavy gauge steel frame and base
- Thermal protection, as noted
- Capacitor start design for high starting torque
- Capacitor start/capacitor run design for higher efficiency, as noted
- 48Y and 48YZ frame have 48/56 frame mounting holes
General Specifications
|
Model : |
056C17D2074 |
Catalog No : |
B319 |
|
Part Description : |
3/4,1800,DP,56,1/60/115/208-230 |
Category : |
Open Drip Proof (ODP) |
|
Stock : |
Yes |
Nameplate Specifications
|
Output HP : |
0.75 Hp |
Output KW : |
0.56 kW |
|
Frequency : |
60 Hz |
Voltage : |
115/208-230 V |
|
Current : |
10.0/5.2-5.0 A |
Speed : |
1725 rpm |
|
Service Factor : |
1.25 |
Phase : |
1 |
|
Efficiency : |
70.1 % |
Duty : |
Continous |
|
Insulation Class : |
B |
Design Code : |
NO DESIGN CODE |
|
KVA Code : |
J |
Frame : |
56 |
|
Enclosure : |
Drip Proof |
Overload Protector : |
Automatic |
|
Ambient Temperature : |
40 °C |
Drive End Bearing Size : |
6203 |
|
Opp Drive End Bearing Size : |
6203 |
UL : |
Recognized |
|
CSA : |
Y |
CE : |
Y |
|
IP Code : |
22 |
Technical Specifications
|
Electrical Type : |
Capacitor Start Induction Run |
Starting Method : |
Across The Line |
|
Poles : |
4 |
Rotation : |
Selective Counterclockwise |
|
Mounting : |
Resilient Base - Extended Studs |
Motor Orientation : |
Horizontal |
|
Drive End Bearing : |
Ball |
Opp Drive End Bearing : |
Ball |
|
Frame Material : |
Rolled Steel |
Shaft Type : |
T |
|
Overall Length : |
10.72 in |
Shaft Diameter : |
0.625 in |
|
Shaft Extension : |
1.87 in |
Assembly/Box Mounting : |
F1 Only |
|
UPC : |
722856023193 |
Weight : |
23.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|
Full Load |
5.00 | 100.0 | 36.50 | 100.0 | 1,731 | 0.00 | 0.0 | 0.75 |
|
Locked-Rotor |
22.10 | 442.0 | 49.40 | 135.0 | 0 | 4.18 | 0.0 | 0.75 |
|
Break-Down |
0.00 | 0.0 | 79.00 | 216.0 | 1,460 | 0.00 | 0.0 | 0.75 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 3.20
- 0.140
- 0.0
- 19.0
- 1,800
- 0.0
- 0.00
- 25 %
- 3.60
- 0.290
- 49.0
- 35.0
- 1,780
- 0.0
- 9.13
- 50 %
- 3.90
- 0.440
- 64.0
- 49.0
- 1,765
- 0.0
- 18.26
- 75 %
- 4.40
- 0.620
- 68.0
- 61.0
- 1,750
- 0.0
- 27.40
- 100 %
- 5.00
- 0.800
- 70.1
- 69.6
- 1,731
- 75.0
- 36.50
- 125 %
- 5.30
- 1.000
- 69.8
- 82.0
- 1,725
- 100.0
- 45.60
