Features
Features
- Heavy gauge steel frame and base
- Ball bearings
- Consult factory for accessory kit and/or modification selection
- 48Y and 48YZ Frame have 48/56 Frame mounting holes
- 5/8" thru-bolts, shaft end
- 1/2" x 1-7/8" shaft with 1-5/8" flat
General Specifications
General Specifications

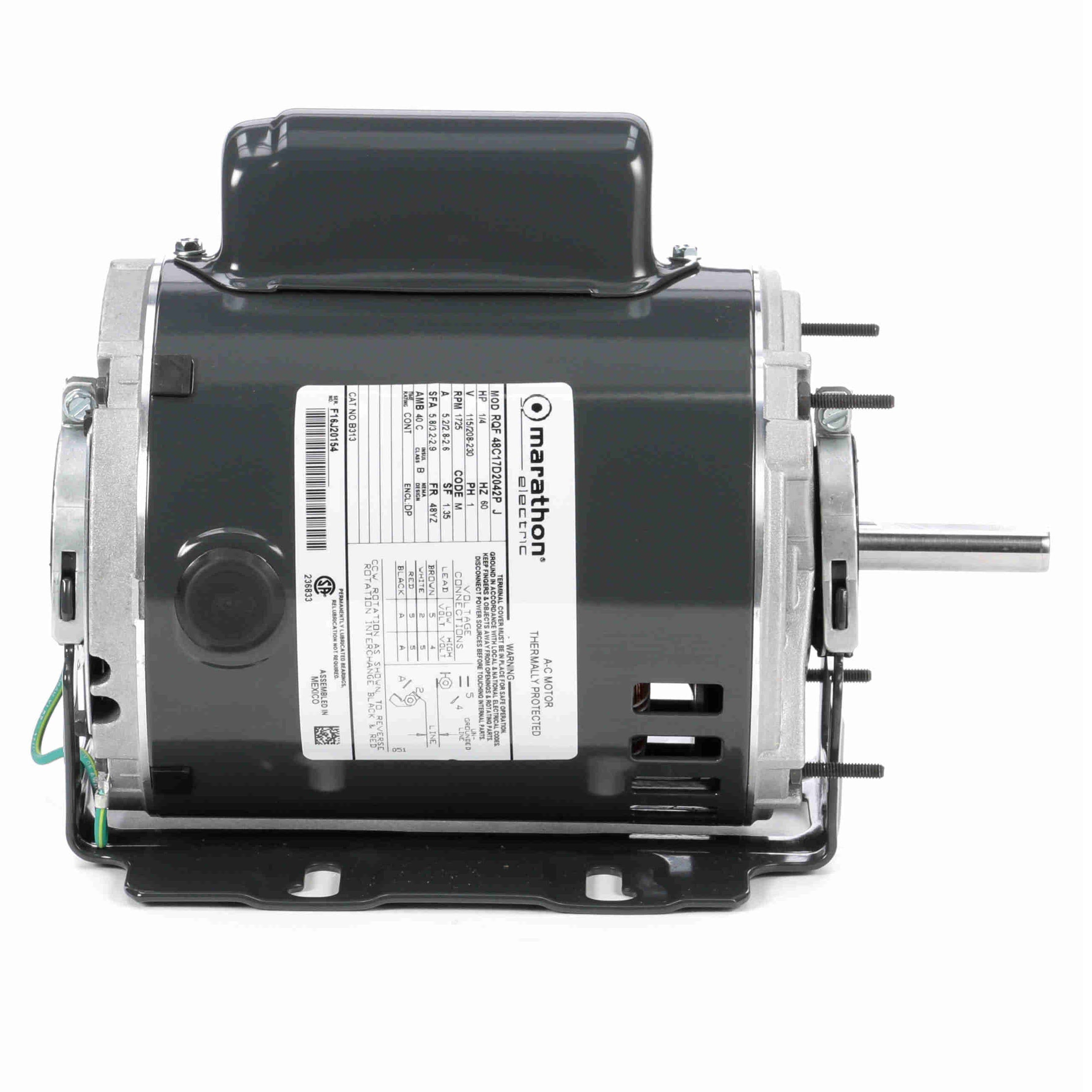

| Model : | 048C17D2042 | Catalog No : | B313 |
| Part Description : | 1/4,1800,DP,48Y,1/60/115/230 | Category : | Fan and Blower |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.25 HP | Output KW : | 0.19 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 5.2/2.8-2.6 A | Speed : | 1725 RPM |
| Service Factor : | 1.35 | Phase : | 1 |
| Efficiency : | 57.5 % | Duty : | Continous |
| Insulation Class : | B | Design Code : | NO DESIGN CODE |
| KVA Code : | M | Frame : | 48Y |
| Enclosure : | Drip Proof | Overload Protector : | Automatic |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 22 |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Resilient Base - Extended Studs | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | Single Special Extension |
| Overall Length : | 9.95 in | Shaft Diameter : | 0.500 in |
| Shaft Extension : | 2.01 in | Assembly/Box Mounting : | F1 Only |
| UPC : | 722856062031 | Weight : | 16.00 LB |
