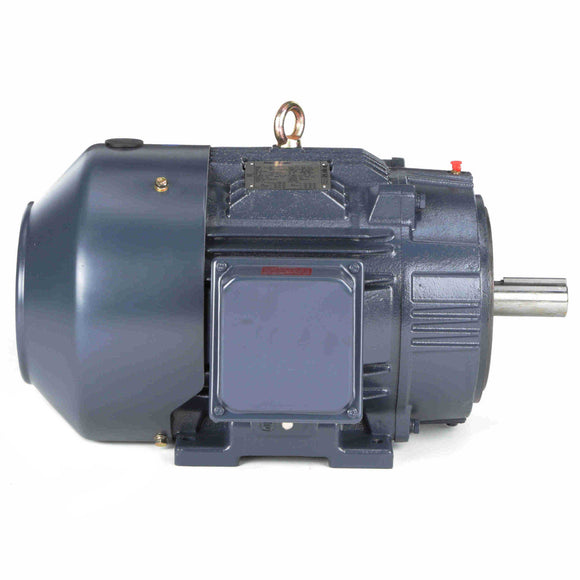

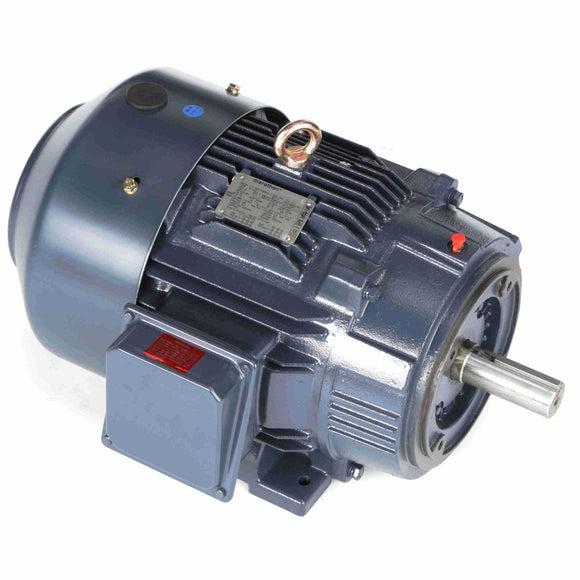

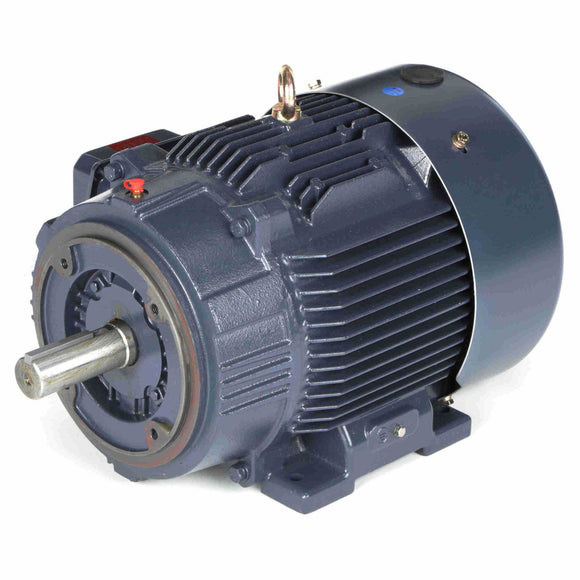

Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
- CONSTANT 10:1/VARIABLE 20:1
- IP55 enclosure on cast iron frames
- IP55 enclosure on cast iron frames
- Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
- Inverter Duty 20:1 Variable Torque and 10:1 Constant Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
General Specifications
| UPC: | 722856063854 | Weight: | 265.00 LB |
| Packaged Length: | 31.77 IN | Packaged Width: | 28.03 IN |
| Packaged Height: | 28.14 IN |
Nameplate Specifications
| Output HP: | 15 Hp | Output KW: | 11.2 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 37.5/18.8 A | Speed: | 1772 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 92.4 % | Power Factor: | 82 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | G |
| Frame: | 254TC | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6309 | Opp Drive End Bearing Size: | 6209 |
| UL: | Listed | CSA: | Y |
| CE: | Y | IP Code: | 55 |
| Hazardous Location: | DIVISION 2 T2B |
Technical Specifications
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 4 | Rotation: | Selective Clockwise |
| Resistance Main: | .61 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 24.65 in |
| Frame Length: | 10.00 in | Shaft Diameter: | 1.626 in |
| Shaft Extension: | 4 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (LB-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 18.80 | 100.0 | 44.50 | 100.0 | 1,772 | 82.0 | 15.00 | |
| Break-Down | 66.00 | 351.0 | 118.00 | 265.0 | 1,622 | 69.0 | 15.00 | |
| 1/3 | 105.00 | 559.0 | 75.50 | 170.0 | 600 | 0.0 | 15.00 | |
| Locked-Rotor | 113.00 | 601.0 | 91.00 | 204.0 | 0 | 41.0 | 15.00 | |
| No Load | 8.50 | 45.0 | 0.00 | 0.0 | 1,800 | 5.0 | 15.00 | |
| Pull-Up | 100.00 | 532.0 | 76.50 | 172.0 | 900 | 0.0 | 15.00 | |
| 2/3 | 91.00 | 484.0 | 95.00 | 213.0 | 1,200 | 0.0 | 15.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 8.50 | 9.50 | 11.80 | 15.00 | 18.80 | 21.00 | 22.80 |
| Rated Output (KW) | 0.50 | 3.20 | 6.10 | 9.00 | 12.10 | 14.00 | 15.20 |
| Efficiency (%) | 0.0 | 87.5 | 91.7 | 92.4 | 92.4 | 92.4 | 91.7 |
| Power Factor (%) | 5.0 | 42.5 | 65.5 | 76.5 | 82.0 | 83.5 | 84.0 |
| Speed (RPM) | 1,800 | 1,792 | 1,785 | 1,780 | 1,772 | 1,768 | 1,762 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 50.0 | 65.0 | 80.0 |
| Torque (LB-FT) | 0.00 | 11.00 | 22.00 | 33.50 | 44.50 | 51.50 | 56.00 |
