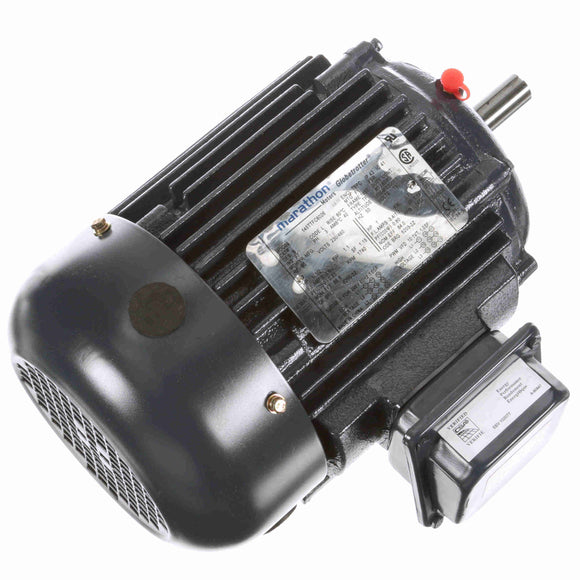

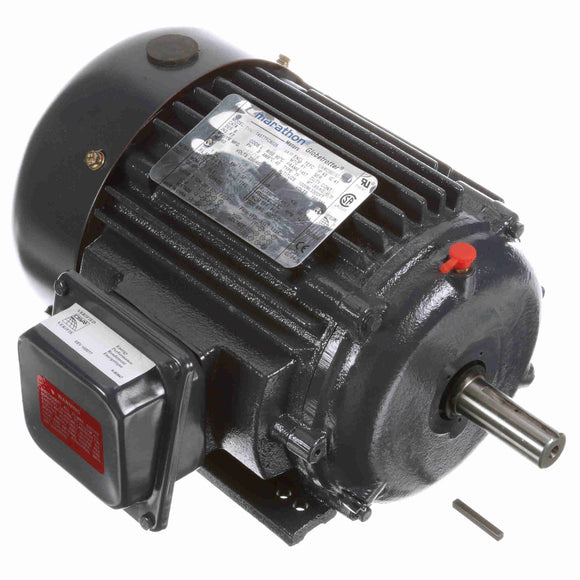

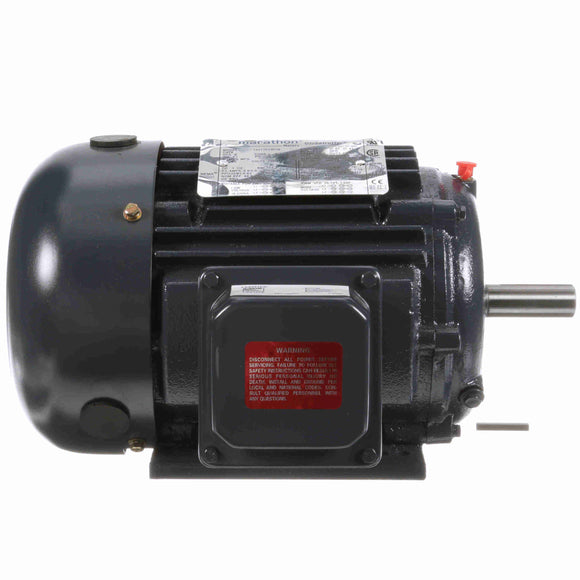

Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Standard assembly F1, reversible to F2 assembly
- Inverter Duty 10:1 Variable Torque and 10:1 Constant Torque
- Class F Insulation
- Cast iron frame material
- 1.15 service factor on sinewave, 1.0 service factor on IGBT power
- UL recognized, CSA certified and CE mark
General Specifications
| UPC: | 722856049612 | Weight: | 62.00 LB |
| Packaged Length: | 14.96 IN | Packaged Width: | 12.79 IN |
| Packaged Height: | 9.8 IN |
Nameplate Specifications
| Output HP: | 1.50 Hp | Output KW: | 1.1 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 4.0/2.0 A | Speed: | 1740 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 86.5 % | Power Factor: | 83 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | L |
| Frame: | 145T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 43 |
Technical Specifications
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Mounting: | Rigid base | Motor Orientation: | Horizontal |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Cast Iron | Shaft Type: | T |
| Overall Length: | 14.20 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 2.25 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| No Load | 0.95 | 48.5 | 0.00 | 0.0 | 1,800 | 9.0 | 1.50 | |
| 1/3 | 16.50 | 692.0 | 13.00 | 280.0 | 600 | 1.50 | ||
| Full Load | 2.00 | 100.0 | 4.50 | 100.0 | 1,740 | 83.0 | 1.50 | |
| 2/3 | 13.00 | 615.0 | 14.00 | 311.0 | 1,200 | 1.50 | ||
| Locked-Rotor | 17.50 | 875.0 | 14.60 | 320.0 | 0 | 67.0 | 1.50 | |
| Break-Down | 10.00 | 513.0 | 17.50 | 385.0 | 1,650 | 81.0 | 1.50 | |
| Pull-Up | 15.00 | 667.0 | 12.00 | 267.0 | 900 | 1.50 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 0.95 | 1.05 | 1.30 | 1.60 | 2.00 | 2.20 | 2.35 |
| Rated Output (KW) | 0.15 | 0.37 | 0.67 | 1.00 | 1.30 | 1.50 | 1.60 |
| Efficiency (%) | 0.0 | 76.5 | 84.0 | 86.5 | 86.5 | 86.5 | 85.5 |
| Power Factor (%) | 9.0 | 44.0 | 66.0 | 78.0 | 83.0 | 85.0 | 86.0 |
| Speed (RPM) | 1,800 | 1,785 | 1,770 | 1,756 | 1,740 | 1,730 | 1,725 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 65.0 | 85.0 | 105.0 |
| Torque (ft-lbs) | 0.00 | 1.10 | 2.20 | 3.40 | 4.50 | 5.20 | 5.70 |
