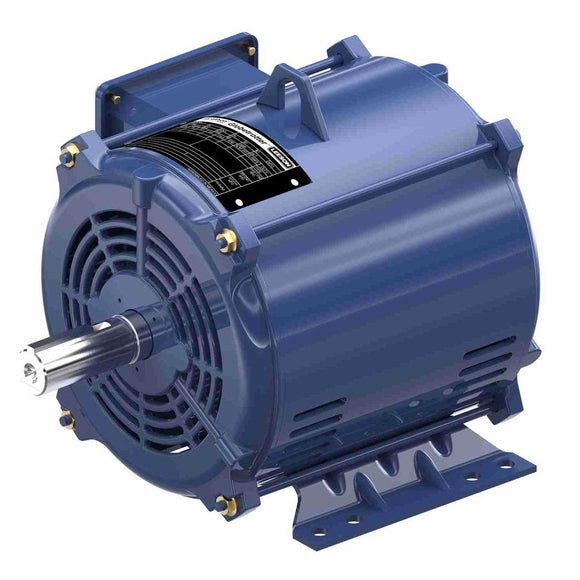

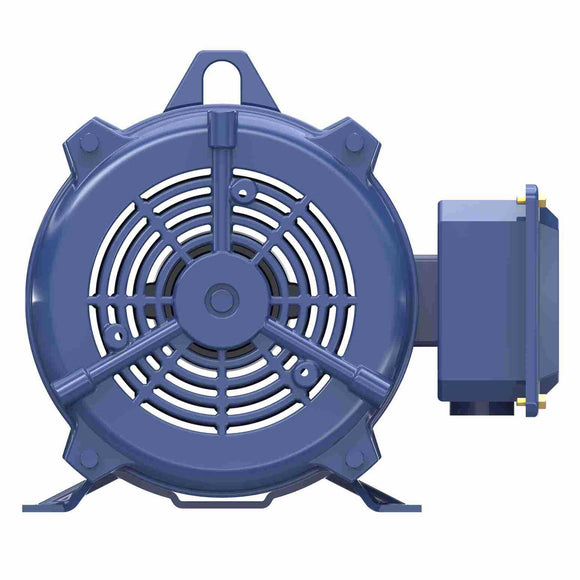

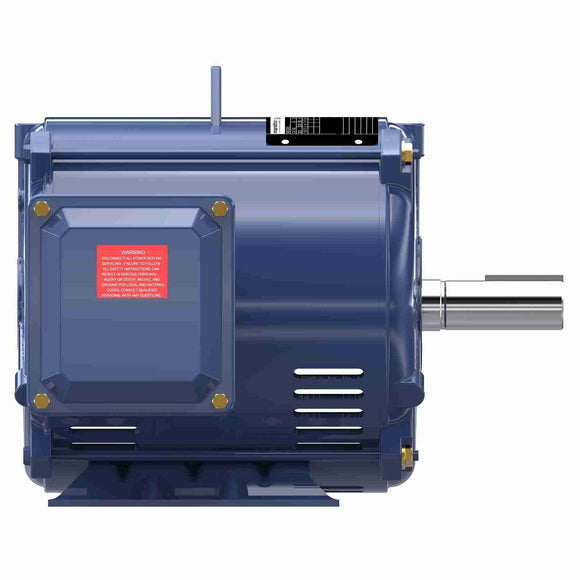

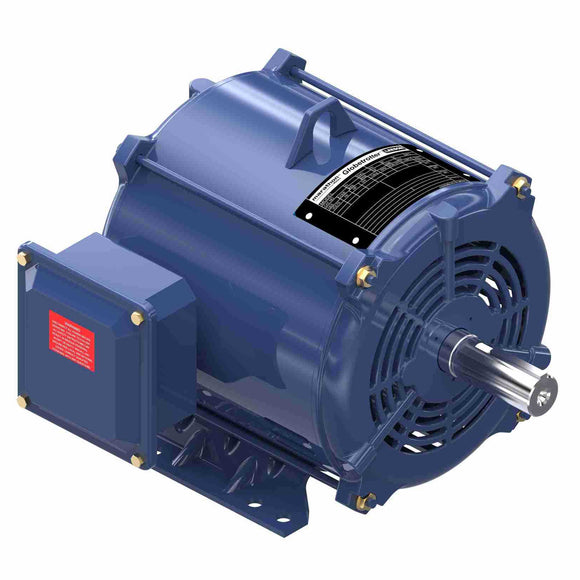

Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- 182T-365T models steel frame, 404T-449T models cast iron frame
- VARIABLE 20:1
- Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
- Inverter Duty 20:1 Variable Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
General Specifications
| UPC: | 722856068835 | Weight: | 63.95 LB |
| Packaged Length: | 15.25 IN | Packaged Width: | 15 IN |
| Packaged Height: | 13 IN |

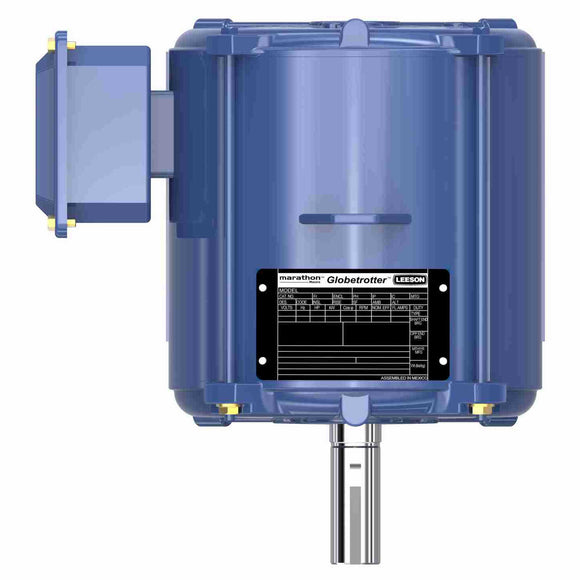

Nameplate Specifications
| Output HP: | 7.50 Hp | Output KW: | 5.6 kW |
| Frequency: | 60 Hz | Voltage: | 208-230/460 V |
| Current: | 19.6-18.4/9.2 A | Speed: | 3510 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 88.5 % | Power Factor: | 86 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | A | KVA Code: | J |
| Frame: | 184T | Enclosure: | Drip Proof |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
Technical Specifications
| Electrical Type: | Squirrel Cage Inverter Rated | Starting Method: | Line Or Inverter |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | 2.455 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 13.25 in |
| Frame Length: | 8.26 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (LB-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| 2/3 | 55.00 | 485.0 | 22.50 | 205.0 | 2,400 | 7.50 | ||
| No Load | 4.30 | 37.0 | 0.00 | 0.0 | 3,600 | 9.0 | 7.50 | |
| Full Load | 9.20 | 100.0 | 11.20 | 100.0 | 3,510 | 86.0 | 7.50 | |
| Locked-Rotor | 66.00 | 675.0 | 23.00 | 205.0 | 0 | 59.0 | 7.50 | |
| Pull-Up | 60.00 | 540.0 | 18.00 | 162.0 | 1,800 | 7.50 | ||
| 1/3 | 64.00 | 585.0 | 18.50 | 160.0 | 1,200 | 7.50 | ||
| Break-Down | 40.00 | 395.0 | 34.00 | 300.0 | 2,925 | 78.0 | 7.50 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 4.30 | 4.80 | 5.80 | 7.40 | 9.20 | 10.50 | 11.40 |
| Rated Output (KW) | 0.30 | 1.70 | 3.20 | 4.60 | 6.30 | 7.30 | 8.00 |
| Efficiency (%) | 0.0 | 81.5 | 87.5 | 88.5 | 88.5 | 87.5 | 86.5 |
| Power Factor (%) | 8.0 | 46.0 | 68.0 | 80.0 | 86.0 | 88.0 | 88.5 |
| Speed (RPM) | 3,600 | 3,575 | 3,555 | 3,535 | 3,510 | 3,495 | 3,485 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 65.0 | 85.0 | 105.0 |
| Torque (LB-FT) | 0.00 | 2.75 | 5.50 | 8.40 | 11.20 | 13.00 | 14.20 |
