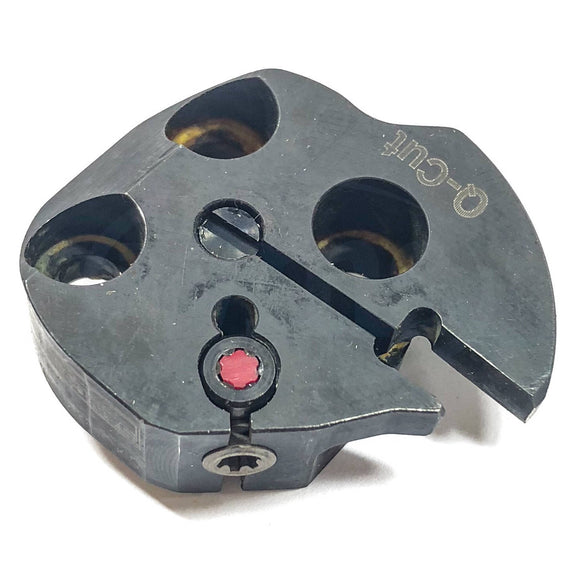

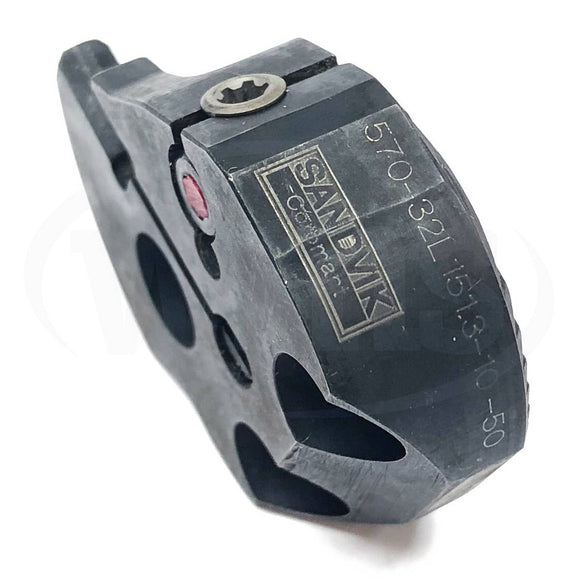

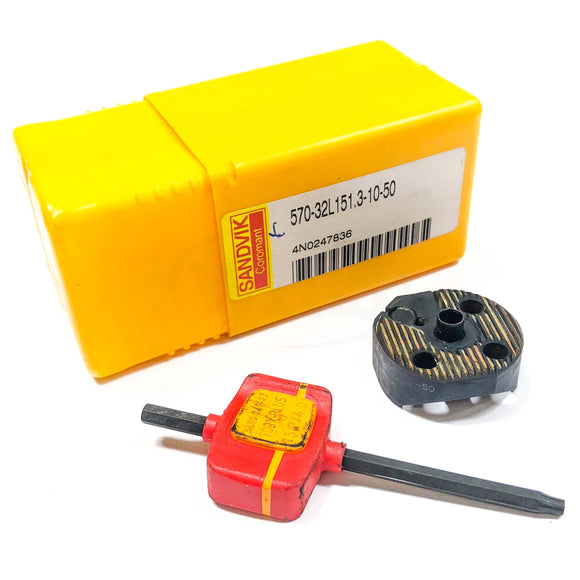

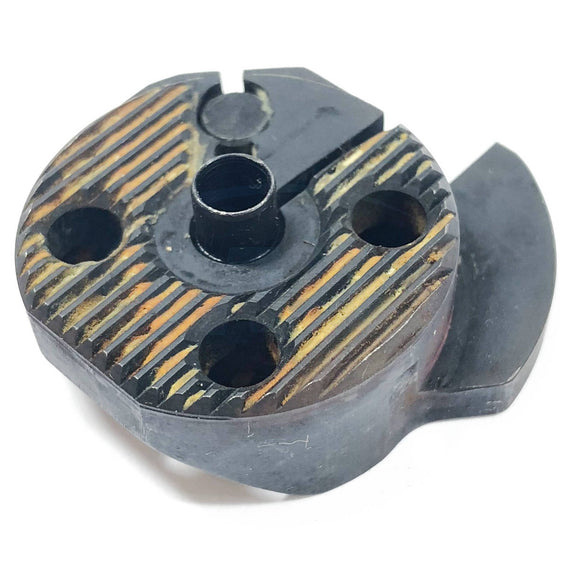

Sandvik 570-32L151.3-10-50 T-Max Q-Cut Grooving Head

Connection size code
(CZC)


32

Cutting depth maximum
(CDX)


10 mm

Part 2 of cutting item interface identifiers
(CUTINTMASTER)


Q-Cut -size 50 (N151.3-600-50-7G)

Adaptive interface machine direction
(ADINTMS)


SL head (screw mounted) -size 32

Minimum bore diameter
(DMIN1)


48.8 mm

Workpiece side body angle
(BAWS)


90 deg

Coolant entry style code
(CNSC)


1: axial concentric entry

Connection diameter
(DCON)


32 mm

Maximum overhang
(OHX)


11 mm

Hand
(HAND)


L

Coolant exit style code
(CXSC)


5: axial inclined exit with nozzle, adjustable

Coolant pressure
(CP)


10 bar

Functional length
(LF)


14 mm

Functional width
(WF)


27.6 mm

Functional height
(HF)


0 mm

Master insert identification
(MIIDM)


N151.3-600-50- 7G

Torque
(TQ)


3 Nm

Weight of item
(WT)


0.11 kg

Sensor embedded property
(SEP)


0

Life cycle state
(LCS)


Released

Release pack id
(RELEASEPACK)


04.2
