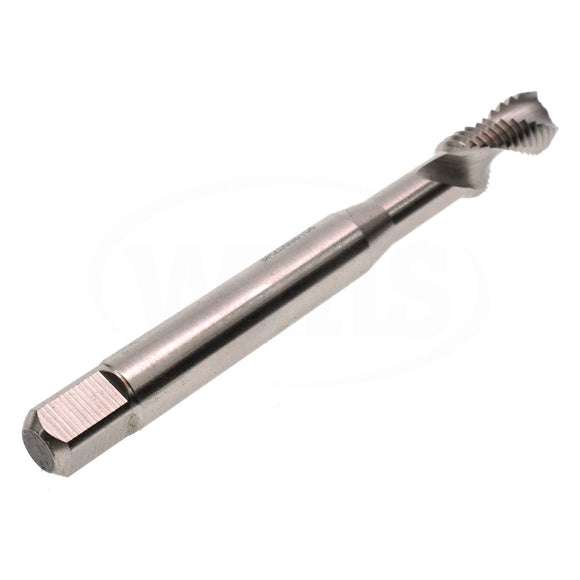

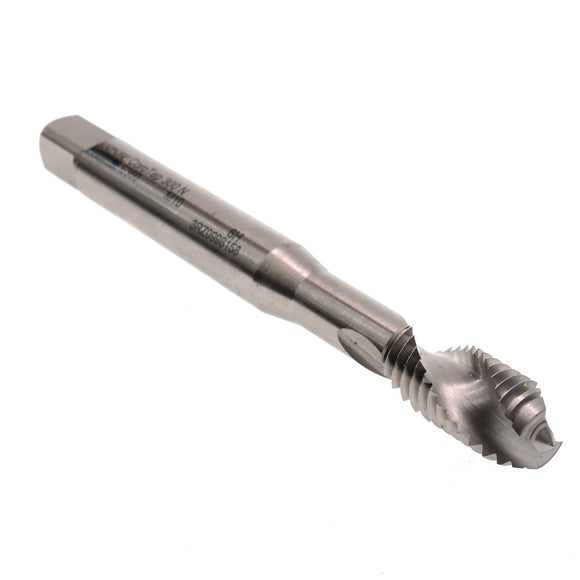

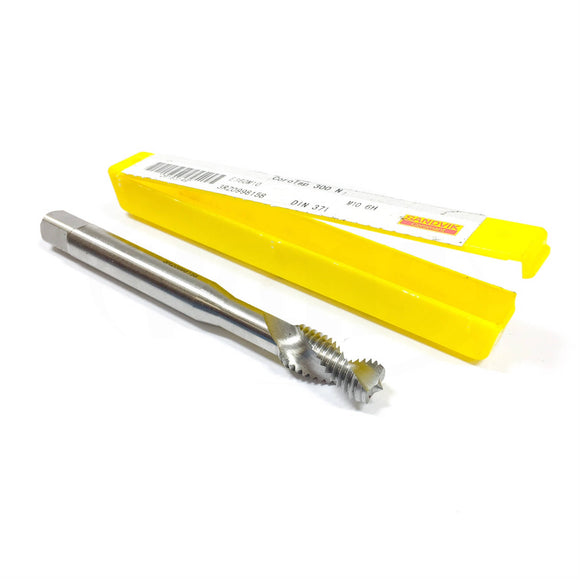

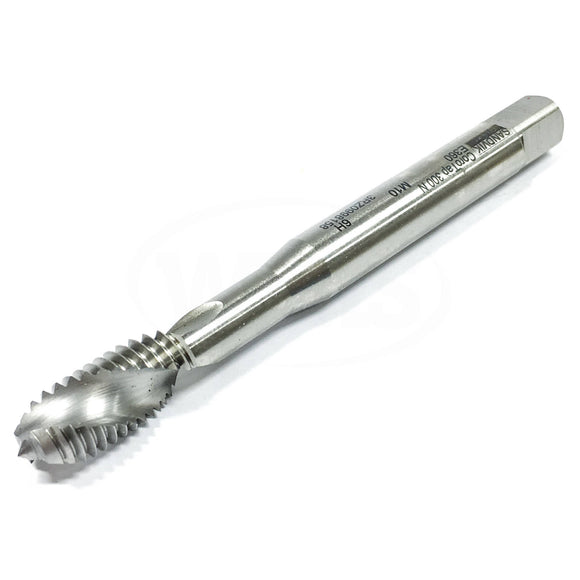

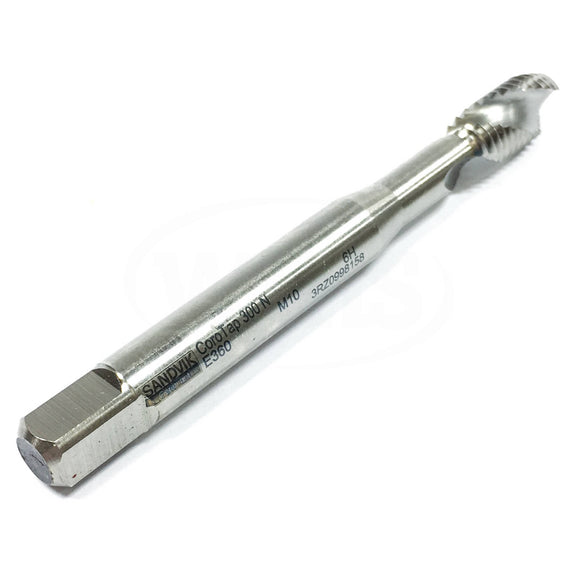

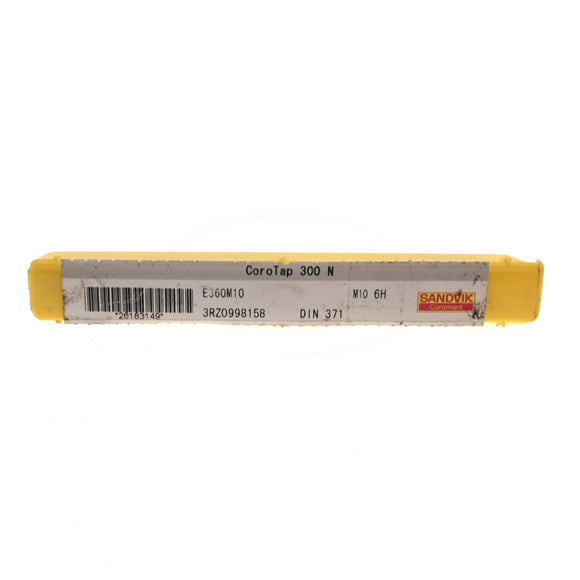

E360M10 Sandvik CoroTap 300 Spiral Flute Tap

Suboperation
(SUBOP)

Thread Cutting with Tap

Thread diameter size
(TDZ)

M 10

Thread pitch
(TP)

1.5 mm

Thread diameter
(TD)

10 mm

Premachined hole diameter
(PHD)

8.5 mm

Blind hole function property
(BHFP)

true

Thread tolerance class
(TCTR)

6H

Basic standard group
(BSG)

DIN 371

Usable length
(LU)

39 mm

Adaptive interface machine direction
(ADINTMS)

Tap shank DIN -metric: 10.00 x 8.00

Substrate
(SUBSTRATE)

HSS-E

Coating
(COATING)

UNCOAT

Coolant entry style code
(CNSC)

0: without coolant

Connection diameter
(DCON)

10 mm

Maximum regrinds
(NORGMX)

0

Functional length
(LF)

100 mm

Neck diameter
(DN)

7.75 mm

Flute count
(NOF)

2

Flute helix angle
(FHA)

35 deg

Threading length
(THL)

20 mm

Thread back taper property
(THBTP)

false

Threading chamfer type
(THCHT)

C

Weight of item
(WT)

0.054 kg

Life cycle state
(LCS)

Phasing out

Release pack id
(RELEASEPACK)

11.2
