Material |
Tin-Plated Copper |
Conductor Material |
Copper |
Product Type |

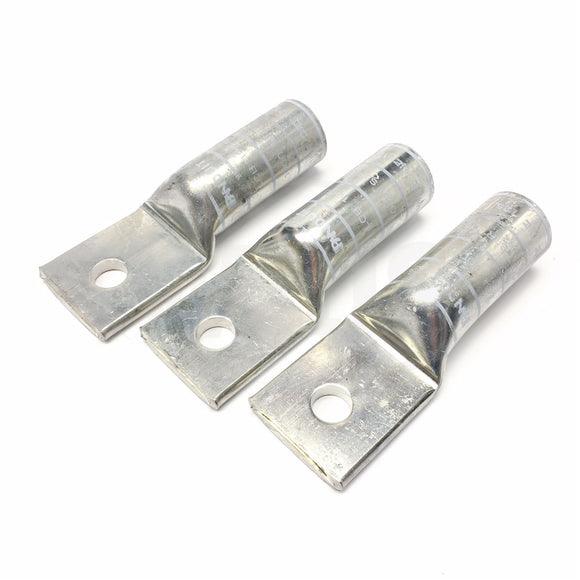

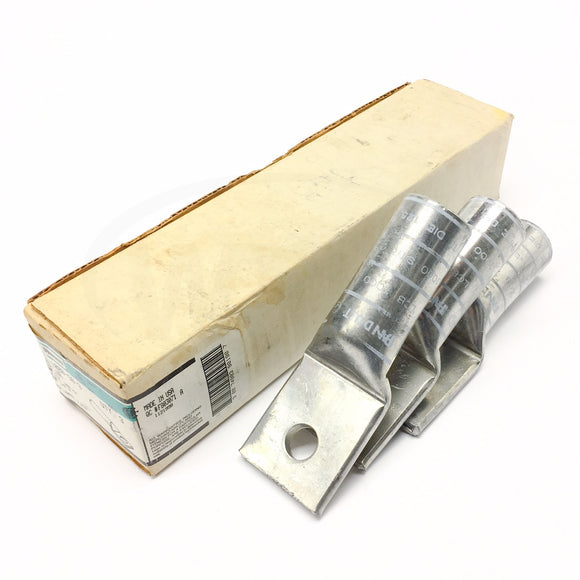

Tin-Plated Copper Compression Connectors - Lugs |
Barrel Type |
Long Barrel Length without Inspection Window |
Tongue Angle |
Straight |
Stud Hole Size In. (mm) |
5/8 (15.9) |
Barrel Length In. (mm) |
3.00 (76.2) |
Length In (mm) |
3.82 |
Tongue Thickness In. (mm) |
0.32 (8.1) |
Tongue Width In. (mm) |
2.17 (55.1) |
Panduit Color Code |
White |
Panduit Die Index No. |
P125 |
Wire Strip Length In. (mm) |
3 1/16 (77.8) |
Burndy Die Index No. |
27 |
T&B Die Index No. |
125 |
Copper Conductor Size |
1000 kcmil |
American Bureau Shipping Approved |
Yes |
CSA Certified |
C22.2 No. 65-13 |
Tested by Telcordia-Meets NEBS Level 3 |
Yes |
Tin-Plating Meets ASTM B545-97, Class C |
320µ-in (8 µm) |
UL Listed |
486A-486B File #E52164 |
UL and CSA Temperature Rating |
90°C |
UL and CSA Voltage Rating |
35kV |
Part Number Series |
LCB |
Technical Information |
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
Barrel Style |
Long |
Part Features |
Tin plated to inhibit corrosion,color coded barrel, NEBS level 3. |
Sub Brand |
Pan-Lug |
Wire Strip Length (mm) |
77.8 |
RoHS Compliancy Status |
Compliant |
Min. Order Qty. |
1 |
