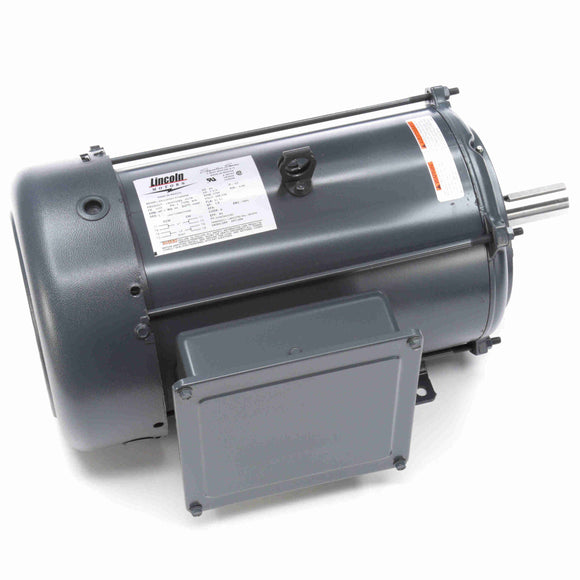

LM24720 Lincoln 7.5HP General Purpose Electric Motor, 1800RPM-1

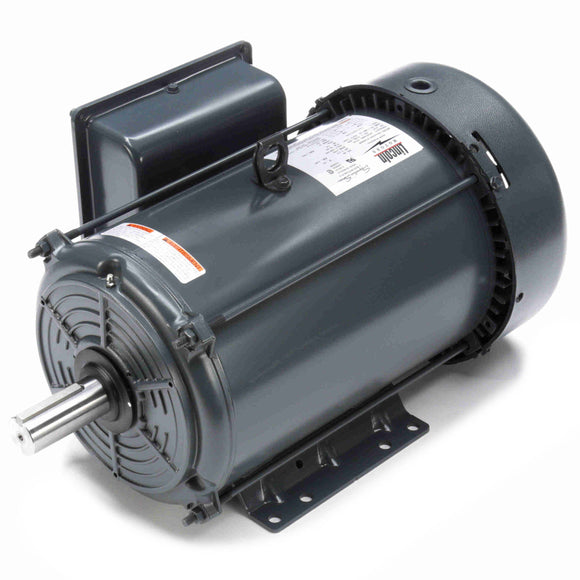

LM24720 Lincoln 7.5HP General Purpose Electric Motor, 1800RPM-2

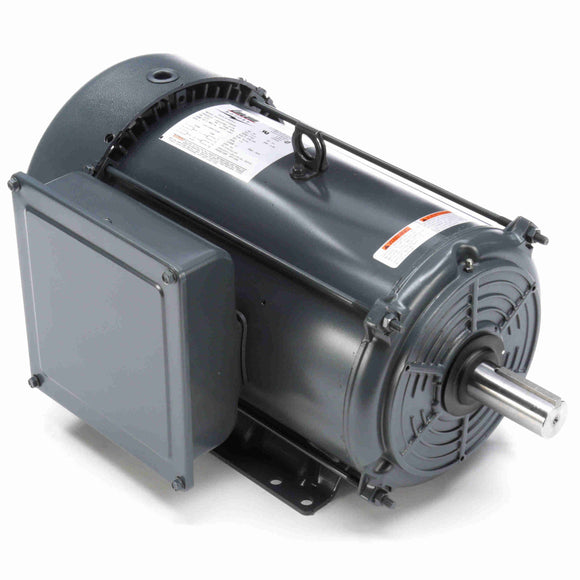

LM24720 Lincoln 7.5HP General Purpose Electric Motor, 1800RPM-3

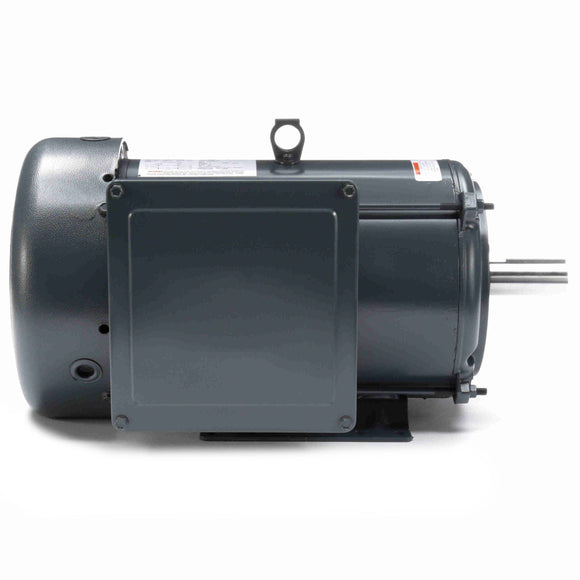

LM24720 Lincoln 7.5HP General Purpose Electric Motor, 1800RPM-4

LM24720 Lincoln 7.5HP General Purpose Electric Motor, 1800RPM

$1,699.97 USD $3,218.00 USD Save $1,518.03 USD

Shipping calculated at checkout

Lincoln Motors SKU: LM24720 Barcode: 691720024171

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Durable rolled steel construction
  • NEMA Design B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720024171 Weight: 89.00 LB
Packaged Length: 22.5 IN Packaged Width: 16.81 IN
Packaged Height: 14 IN

Nameplate Specifications

Output HP: 7.50 Hp Output KW: 5.6 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 35.0-30.0 A Speed: 1740 rpm
Service Factor: 1 Phase: 1
Efficiency: 84 % Power Factor: 96
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: G
Frame: 215T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 307 Opp Drive End Bearing Size: 206
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: T Overall Length: 21.09 in
Frame Length: 12.40 in Shaft Diameter: 1.375 in
Shaft Extension: 3.38 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 198.00 660.0 50.00 222.0 0 35.50 78.5 7.50
Full Load 30.00 100.0 22.50 100.0 1,740 6.65 0.0 7.50
Pull-Up 196.00 653.0 46.50 207.0 50 36.00 0.0 7.50
Break-Down 102.00 340.0 51.00 227.0 1,515 20.00 0.0 7.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 5.00 9.50 15.50 22.20 30.00 35.50 38.00 48.60
Rated Output (KW) 0.70 1.90 3.40 4.98 6.65 7.85 8.35 10.60
Efficiency (%) 0.0 71.0 82.5 84.5 84.0 81.5 81.0 76.0
Power Factor (%) 60.5 89.0 95.0 95.8 96.0 96.5 96.0 94.0
Speed (RPM) 1,800 1,777 1,765 1,755 1,740 1,715 1,710 1,690
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 115.0 0.0 0.0
Torque (ft-lbs) 0.00 5.60 11.10 16.70 22.50 26.00 28.30 34.60
