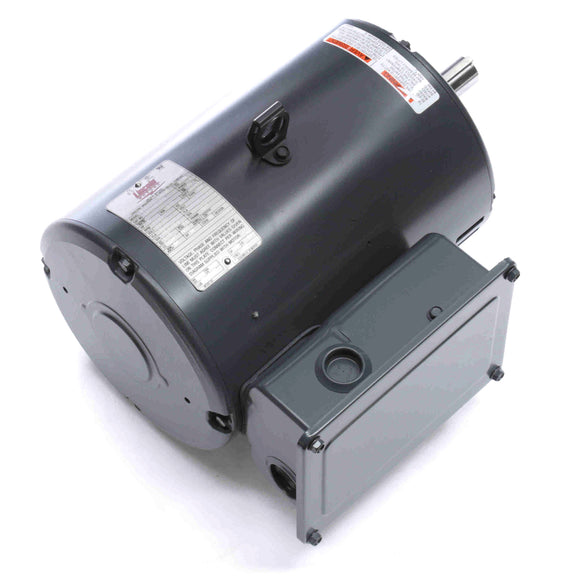

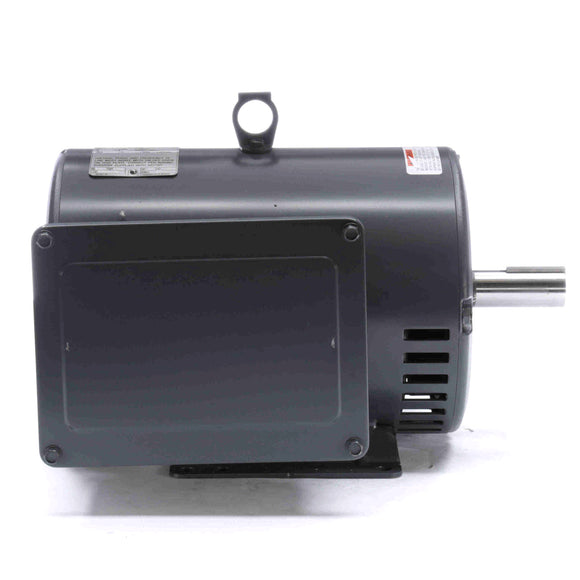

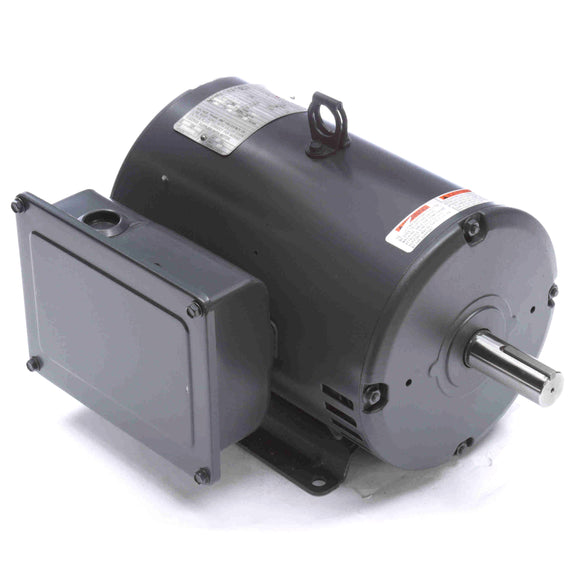

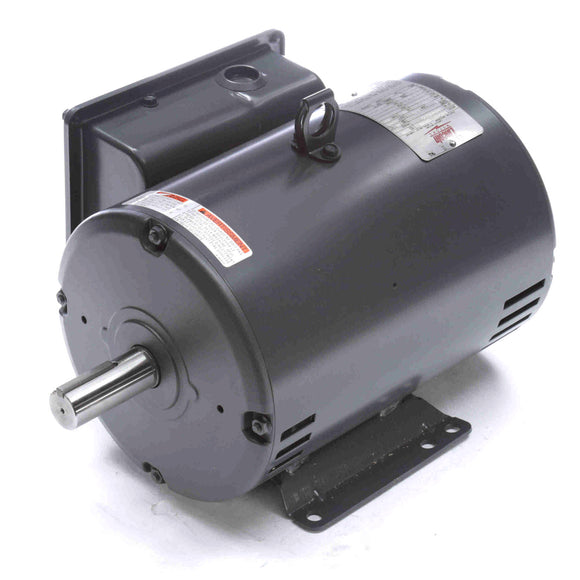

LM24682 Lincoln 5HP Electric Motor, 1800RPM

$824.90 USD

Shipping calculated at checkout

Lincoln Motors SKU: LM24682 Barcode: 691720017166

30 Day
Return Policy

Ships Fast
in 24 hours

Compressor Duty, DP, 184T Frame, 208-230VAC

Description Product Specs Manufacturer



Features


  • Double shielded ball bearings

  • Designed for belted loads

  • High efficient copper windings

  • High starting and breakdown torque

  • Dual rotation







General Specifications






























Model :
SSD4S5T1B6008
Catalog No :
LM24682

Part Description :
5,1800,DP,184T,1/60/208-230
Category :
Air Compressor

Stock :
No







Nameplate Specifications








































































Output HP :
5 Hp
Output KW :
3.7 kW

Frequency :
60 Hz
Voltage :
208-230 V

Current :
22-20 A
Speed :
1750 rpm

Service Factor :
1.15
Phase :
1

Efficiency :
84 %
Duty :
CONTINUOUS

Insulation Class :
F
Design Code :
NO DESIGN CODE

KVA Code :
G
Frame :
184T

Enclosure :
DP
Overload Protector :
NOT

Ambient Temperature :
40 °C
Drive End Bearing Size :
6206

Opp Drive End Bearing Size :
6205
UL :
Recognized

CSA :
Y
CE :
Y

IP Code :
22







Technical Specifications

























































Electrical Type :
CAP START CAP RUN
Starting Method :
ACROSS THE LINE

Poles :
4
Rotation :
SELECTIVE CCW

Mounting :
RIGID
Motor Orientation :
HORIZONTAL

Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL

Frame Material :
ROLLED STEEL
Shaft Type :
T

Overall Length :
15.21 in
Frame Length :
11 in

Shaft Diameter :
1.13 in
Shaft Extension :
2.75 in

Assembly/Box Mounting :
F1 ONLY
UPC :
691720017166

Weight :
89.00 LB







Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Full Load
22.00 100.0 15.00 100.0 1,750 4.42 98.0 5.00

Break-Down
74.30 338.0 39.00 260.0 1,550 16.18 75.7 5.00

Pull-Up
133.20 605.0 29.30 195.0 200 26.75 87.3 5.00

Locked-Rotor
131.50 598.0 34.90 233.0 0 26.75 87.3 5.00





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 2.90

  • 0.500

  • 0.0

  • 75.0

  • 1,800

  • 0.0

  • 0.00





  • 25 %

  • 6.50

  • 1.360

  • 68.4

  • 91.0

  • 1,785

  • 0.0

  • 3.67





  • 50 %

  • 10.60

  • 2.300

  • 80.8

  • 94.3

  • 1,775

  • 0.0

  • 7.37





  • 75 %

  • 14.85

  • 3.300

  • 84.3

  • 96.6

  • 1,765

  • 0.0

  • 11.10





  • 100 %

  • 20.00

  • 4.420

  • 84.0

  • 98.0

  • 1,750

  • 60.0

  • 15.00





  • 115 %

  • 22.90

  • 5.100

  • 83.4

  • 96.8

  • 1,740

  • 75.0

  • 17.20





  • 125 %

  • 24.90

  • 5.575

  • 83.1

  • 97.3

  • 1,735

  • 0.0

  • 18.80





  • 150 %

  • 30.40

  • 6.805

  • 81.8

  • 97.3

  • 1,718

  • 0.0

  • 22.82
