Features
Features
- Premium efficient ratings
- Inverter-rated; Continuous duty
- Class F insulation system – 140 frame and higher
- Class F insulation system – 140 frame and higher
- Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
- Dynamically balanced rotors
- Torques exceed NEMA performance standards; UL recognized and CSA certified

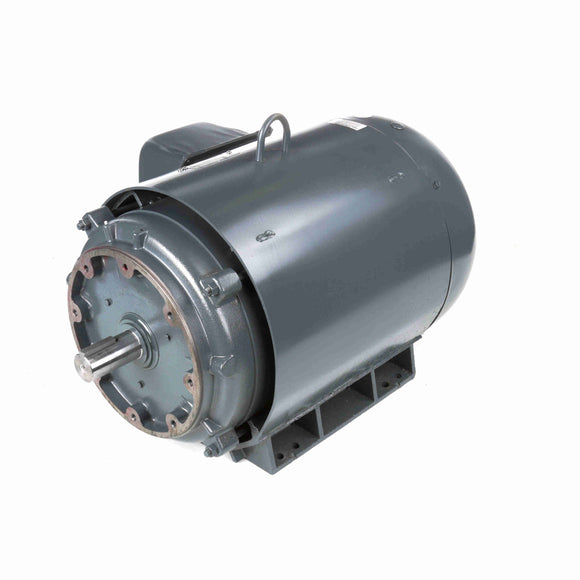

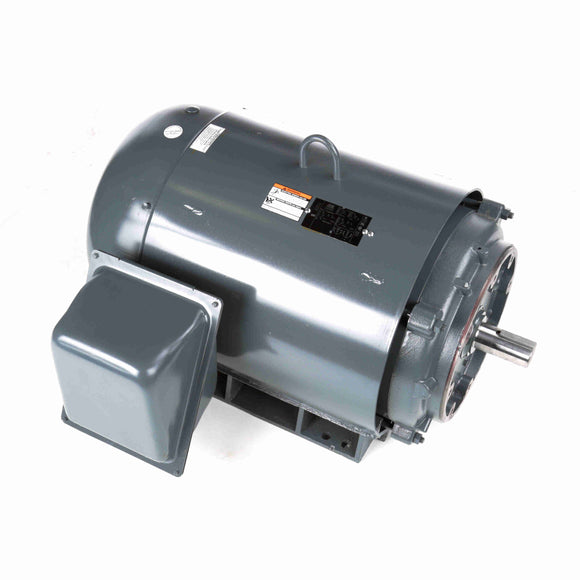

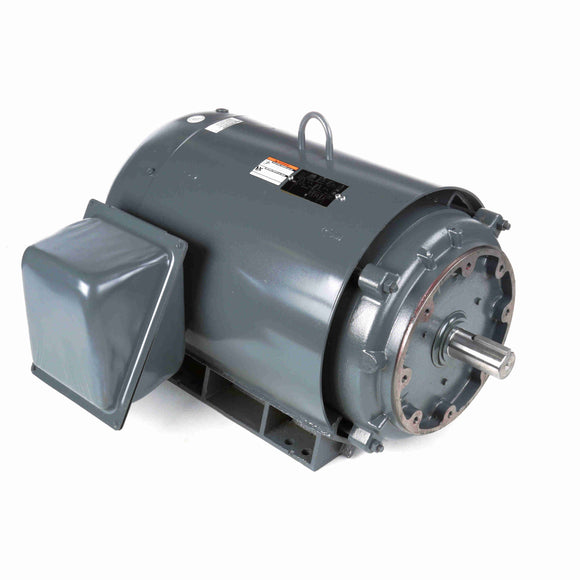

General Specifications
General Specifications
| Model : | SF4B200TSC64Y | Catalog No : | LM32660 |
| Part Description : | ..200HP..1800RPM.445TSC.TEFC.460V.3PH.60HZ.CONT.40C..RIGID-C.............. | Category : | Totally Enclosed Fan Cooled (TEFC) |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 200 HP | Output KW : | 149.0 kW |
| Frequency : | 60 Hz | Voltage : | 460 V |
| Current : | 227.0 A | Speed : | 1788 RPM |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 96.2 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | G | Frame : | 445TSC |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 318 |
| Opp Drive End Bearing Size : | 315 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 43 |
Technical Specifications
Technical Specifications
| Electrical Type : | Squirrel Cage Induction Run | Starting Method : | Wye Start Delta Run |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | TS |
| Overall Length : | 39.74 in | Frame Length : | 23.17 in |
| Shaft Diameter : | 2.375 in | Shaft Extension : | 4.75 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720065839 |
| Weight : | 1,555.00 LB |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| No Load | 70.00 | 31.0 | 0.00 | 0.0 | 1,800 | 200.00 | ||
| Pull-Up | 1,300.00 | 573.0 | 1,260.00 | 215.0 | 900 | 200.00 | ||
| 2/3 | 1,240.00 | 546.0 | 1,470.00 | 250.0 | 1,200 | 200.00 | ||
| Locked-Rotor | 1,450.00 | 639.0 | 1,400.00 | 239.0 | 0 | 36.0 | 200.00 | |
| Break-Down | 800.00 | 352.0 | 1,460.00 | 249.0 | 1,715 | 64.0 | 200.00 | |
| 1/3 | 1,380.00 | 608.0 | 1,190.00 | 203.0 | 600 | 200.00 | ||
| Full Load | 227.00 | 100.0 | 587.00 | 100.0 | 1,785 | 200.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 70.00
- 3.200
- 0.0
- 5.5
- 1,800
- 0.0
- 0.00
- 25 %
- 89.50
- 41.000
- 90.2
- 57.5
- 1,797
- 0.0
- 146.00
- 50 %
- 128.00
- 79.000
- 95.0
- 77.0
- 1,795
- 0.0
- 293.00
- 75 %
- 175.00
- 117.000
- 95.4
- 84.0
- 1,790
- 0.0
- 440.00
- 100 %
- 227.00
- 156.000
- 96.2
- 86.0
- 1,788
- 60.0
- 587.00
- 115 %
- 261.00
- 179.000
- 95.8
- 86.0
- 1,785
- 80.0
- 677.00
- 125 %
- 284.00
- 195.000
- 95.4
- 86.0
- 1,783
- 95.0
- 736.00
