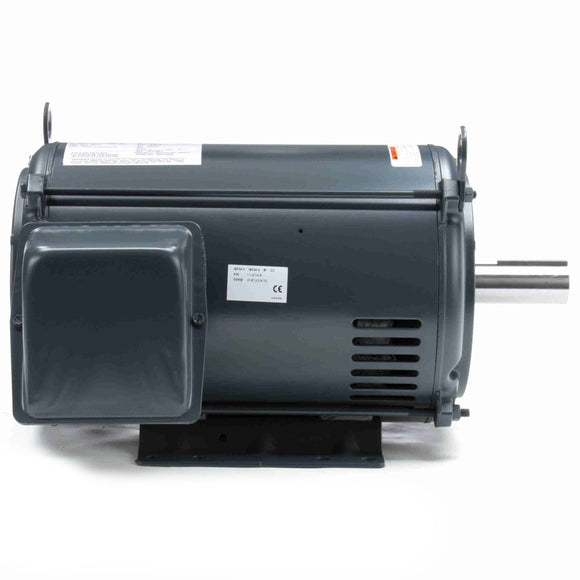

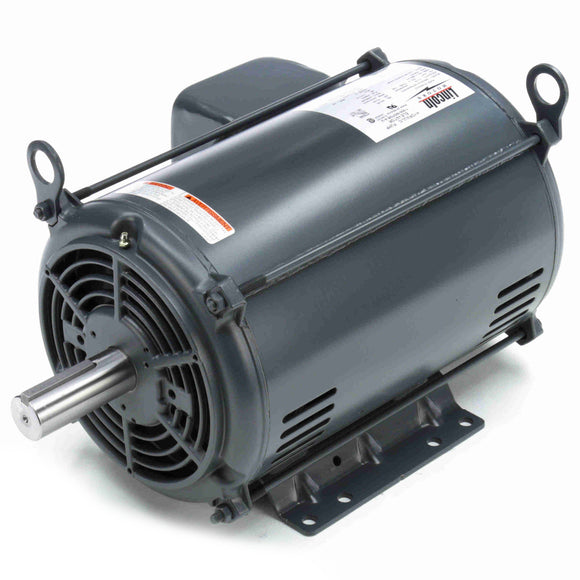

Features
- Dual rated nameplates for 80 & 120 starts/hour
- Designed for belt driven pumps
- Wye Start/Delta Run
- Class F Insulated; 40° C ambient
- F-1 mounting
- Ball bearings with grease fittings and automatic relief
- NEMA® dimensions
- UL recognized component listing and CSA approved
- Constructed for low noise and low vibration
General Specifications
| UPC: | 691720020722 | Weight: | 135.00 LB |
| Packaged Length: | 22.5 IN | Packaged Width: | 16.81 IN |
| Packaged Height: | 14 IN |
Nameplate Specifications
| Output HP: | 15 Hp | Output KW: | 11.2 kW |
| Frequency: | 60 Hz | Voltage: | 200 V |
| Current: | 39.0 A | Speed: | 3510 rpm |
| Service Factor: | 1 | Phase: | 3 |
| Efficiency: | 90.2 % | Power Factor: | 91 |
| Duty: | 120/80 Starts/Hour | Insulation Class: | F |
| Design Code: | INV | KVA Code: | G |
| Frame: | 215T | Enclosure: | Drip Proof |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6307 | Opp Drive End Bearing Size: | 6206 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
Technical Specifications
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Wye Start Delta Run |
| Poles: | 2 | Rotation: | Reversible |
| Resistance Main: | 0 Ohms | Mounting: | Rigid base |
| Motor Orientation: | HORIZONTAL | Drive End Bearing: | BALL |
| Opp Drive End Bearing: | BALL | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 18.54 in |
| Frame Length: | 12.40 in | Shaft Diameter: | 1.375 in |
| Shaft Extension: | 3.38 in | Assembly/Box Mounting: | F1 ONLY |
Load Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 116.00 | 682.0 | 34.50 | 153.0 | 0 | 42.0 | 15.00 | |
| Break-Down | 73.50 | 432.0 | 65.50 | 291.0 | 3,025 | 75.0 | 15.00 | |
| No Load | 4.10 | 24.0 | 0.00 | 0.0 | 3,600 | 15.00 | ||
| Pull-Up | 100.00 | 588.0 | 31.00 | 138.0 | 1,200 | 15.00 | ||
| 1/3 | 110.00 | 647.0 | 33.00 | 147.0 | 600 | 15.00 | ||
| Full Load | 17.00 | 100.0 | 22.50 | 100.0 | 3,510 | 15.00 | ||
| 2/3 | 90.00 | 529.0 | 33.00 | 147.0 | 1,800 | 15.00 |
Speed Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 9.43 | 13.80 | 20.70 | 29.90 | 39.10 | 44.85 | 49.45 |
| Rated Output (KW) | 0.50 | 3.20 | 6.10 | 9.20 | 12.50 | 14.50 | 15.50 |
| Efficiency (%) | 0.0 | 88.5 | 91.0 | 91.7 | 90.2 | 90.2 | 89.5 |
| Power Factor (%) | 9.0 | 69.0 | 84.5 | 89.5 | 91.0 | 91.5 | 91.5 |
| Speed (RPM) | 3,600 | 3,580 | 3,560 | 3,535 | 3,510 | 3,495 | 3,485 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 35.0 | 45.0 | 55.0 |
| Torque (ft-lbs) | 0.00 | 5.50 | 11.00 | 16.70 | 22.50 | 26.00 | 28.50 |
