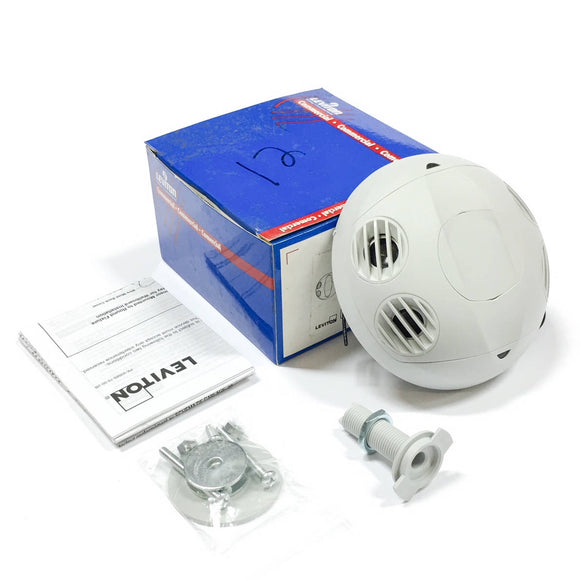

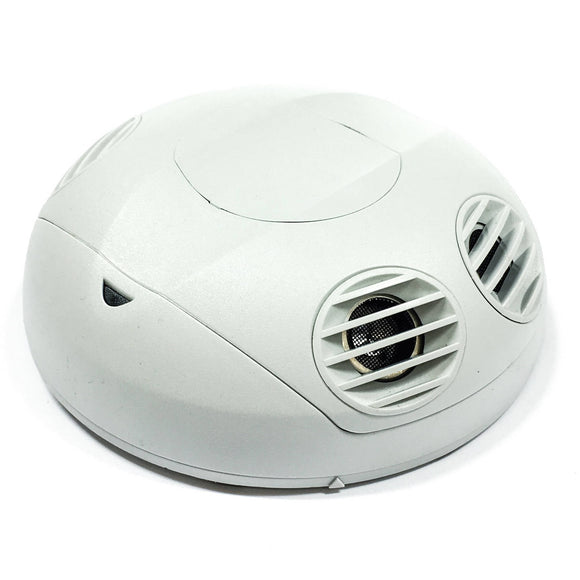

OSC20-U0W Leviton Ultrasonic Ceiling Occupancy Sensor

Occupancy Sensor, Ceiling Mounted, Ultrasonic only, 24VDC, 30mA power consumption, 2000 sq ft: 64'Lx32'W, minor motion: 45'Lx23'W), green LED, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', PIR, cUL/NOM/ANCE listed, CEC Title 24 compliant. Color: off-white.

BRAND FEATURES
Microprocessor based, the OSCXX-U has a self adapting feature that compensates for air flow, giving it excellent immunity to air currents and other interference.

Product Features
Coverage (Sq.Ft.): 2000
Sensor Type: Ceiling Mount
Technology: Ultrasonic
Product Line: OSC20
Color: White

Electrical Specifications
Voltage: 24 VDC

Standards and Certifications
Title 24 Compliant: Yes

Material Specifications
Color: White

Mechanical Specifications
Coverage (Sq.Ft.): 2000

Product Features
Color: White
Coverage (Sq.Ft.): 2000
Technology: Ultrasonic
