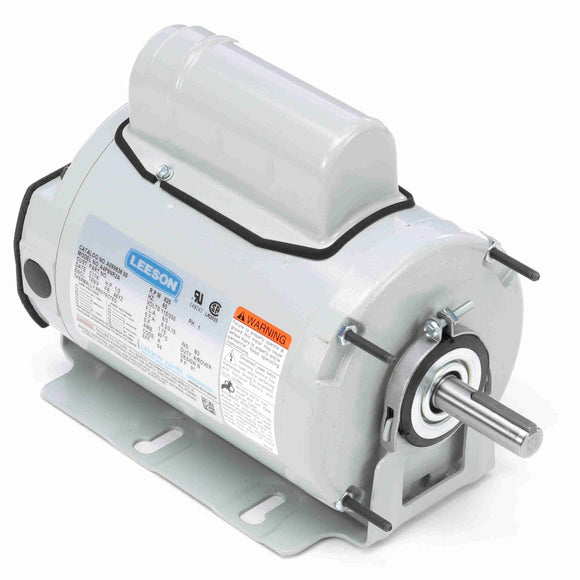

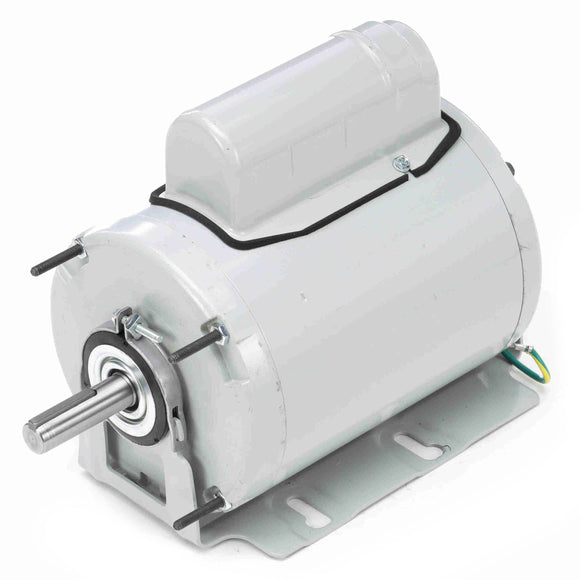

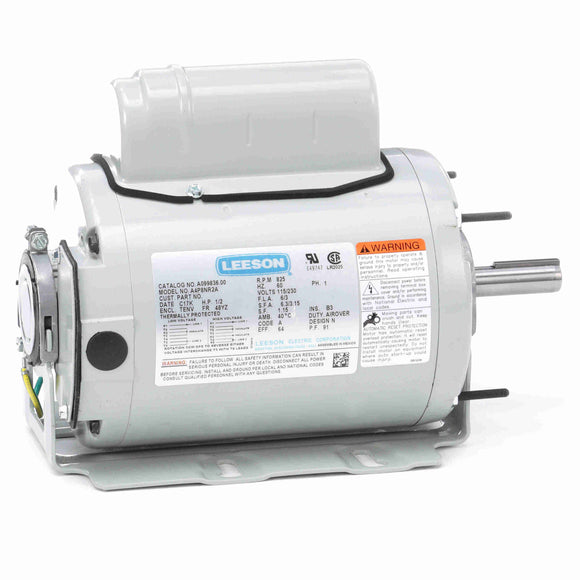

A099836.00 Leeson 1/2HP 2-Winding Agricultural Fan Duty Electric Motor, 850RPM

$326.20 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: A099836.00 Barcode: 691720102909

30 Day
Return Policy

Ships Fast
in 24 hours

TEAO, 48YZ Frame, 115/230VAC Single Phase 60Hz, A4P8NR2A, Resilient Base

Description Product Specs Manufacturer
Volts 115   Volts 230   Volts
FL Amps 6   FL Amps 3   FL Amps
SF Amps 6.3   SF Amps 3.15   SF Amps
RPM 825   Hertz 60
HP 1/2   Duty AIROVER   Type PN
KW 0.37   SF 1.15   Phase 1
Frame 48YZ   Design N   KVA Code A
Ambient 40   Protection AUT LCK RTR ONLY   Therm.Prot. A-A56227-52
Insulation Class B   Eff(75%)   PF 91
Eff(100%) 64   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE N   Bearing PE 6203
CC Number EXEMPT   Inverter Type   Speed Range NONE
LOad Type
Motor Wt. 22 LB   Enclosure TENV   Lubrication VERIFY
Nameplate 92005-6   Mounting RESILIENT BASE   Rotation SELECTIVE CCW
Shaft Diam.   Cust Part No.   Packaging F
    Winding PE488252   Carton Label
    Group 3   Iris
Paint VERIFY   Hazardous Location NONE   Test Card
  • Electric Motor
  • 48YZ
  • TEAO
  • Single Phase
  • 1/2HP
  • 850RPM

Leeson Electric (Regal Rexnord)
