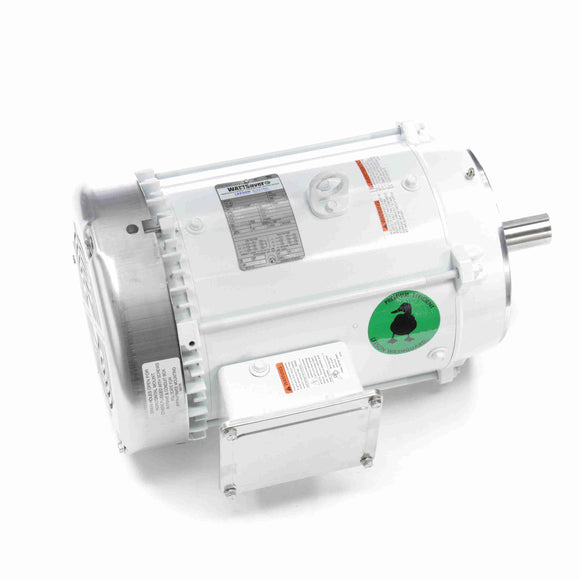

Features
- USDA-approved epoxy painted motors
- NEMA motors
- AC washdown
- Rigid base and C face mount types
- BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- UL recognized and CSA certified
- Double lip contact seals and v-ring seals used for shaft seals
- 3-year warranty on encapsulated and premium efficient models
- Washdown brakemotors and pump motors available
General Specifications
| Model : | C215T34WC8A | Catalog No : | 141357.00 |
| Part Description : | 15HP..3600RPM.215TC.TEFC.230/460V.3PH.60HZ.CONT.40C..RIGID-C.............. | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 15 Hp | Output KW : | 11.2 kW |
| Frequency : | 60 Hz | Voltage : | 230/460 V |
| Current : | 35.0/17.6 A | Speed : | 3495 rpm |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 91 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | B |
| KVA Code : | G | Frame : | 215TC |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6309 |
| Opp Drive End Bearing Size : | 6206 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Squirrel Cage Inverter Rated | Starting Method : | Line Or Inverter |
| Poles : | 2 | Rotation : | Reversible |
| Mounting : | Round | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 20.58 in | Frame Length : | 11.15 in |
| Shaft Diameter : | 1.375 in | Shaft Extension : | 3.12 in |
| Assembly/Box Mounting : | F1/F2 CAPABLE | UPC : | 691720991442 |
| Weight : | 156.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 70.54 | 249.4 | 61.80 | 364.7 | 3,120 | 0.00 | 0.0 | 15.00 |
| Pull-Up | 110.60 | 628.8 | 42.69 | 189.4 | 632 | 0.00 | 0.0 | 15.00 |
| No Load | 5.43 | 30.9 | 0.00 | 0.0 | 3,600 | 0.00 | 0.0 | 15.00 |
| Locked-Rotor | 109.40 | 621.9 | 42.81 | 189.9 | 0 | 0.00 | 45.6 | 15.00 |
| Full Load | 17.42 | 100.0 | 22.30 | 100.0 | 3,533 | 0.00 | 0.0 | 15.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 5.44
- 0.790
- 0.0
- 18.2
- 3,600
- 0.0
- 0.00
- 25 %
- 6.80
- 3.187
- 87.7
- 58.0
- 3,576
- 0.0
- 5.50
- 50 %
- 9.78
- 6.170
- 90.6
- 79.1
- 3,552
- 0.0
- 11.08
- 75 %
- 13.53
- 9.310
- 90.7
- 86.3
- 3,524
- 0.0
- 16.87
- 100 %
- 17.60
- 12.460
- 91.0
- 89.0
- 3,495
- 80.0
- 22.54
- 115 %
- 20.25
- 14.460
- 89.0
- 89.6
- 3,475
- 110.0
- 26.07
- 125 %
- 22.24
- 15.910
- 88.2
- 89.8
- 3,461
- 0.0
- 28.57
