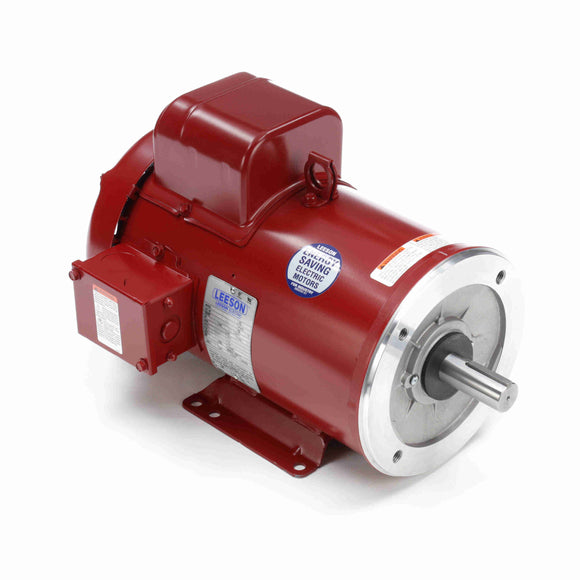

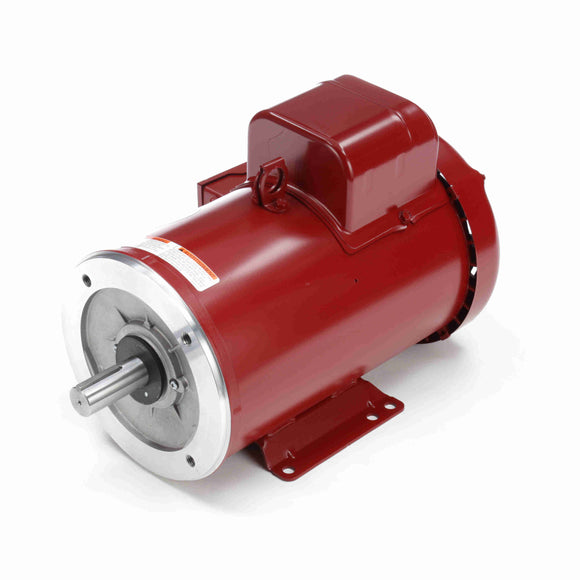

Features
- Gasketed capacitor cases and conduit box covers
- Meets or exceeds NEMA ® service factors
- Manual rest overload protection
- UL recognized component listing and CSA certified
General Specifications
General Specifications
| UPC: | 691720328804 | Weight: | 100.00 LB |
| Packaged Length: | 20.13 IN | Packaged Width: | 14.63 IN |
| Packaged Height: | 12.38 IN |
Nameplate Specifications
Nameplate Specifications
| Output HP: | 5 Hp | Output KW: | 3.7 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 20.5 A | Speed: | 1740 rpm |
| Service Factor: | 1.15 | Phase: | 1 |
| Efficiency: | 82.5 % | Power Factor: | 93 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | L | KVA Code: | H |
| Frame: | 184TC | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | Manual | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
| Number of Speeds: | 1 |
Technical Specifications
Technical Specifications
| Electrical Type: | Capacitor Start Capacitor Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Selective Counterclockwise |
| Resistance Main: | .47 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 17.47 in |
| Frame Length: | 12.00 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1 ONLY |
Speed Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (LB-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 150.00 | 43.50 | 290.0 | 0 | 5.00 | |||
| Break-Down | 0.00 | 35.50 | 237.0 | 0 | 5.00 | |||
| Full Load | 20.50 | 15.00 | 100.0 | 1,753 | 5.00 | |||
| Pull-Up | 0.00 | 26.50 | 177.0 | 0 | 5.00 |
Load Characteristics
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % | 150 % |
| Current (Amps) | 5.50 | 7.70 | 11.50 | 15.90 | 20.50 | 23.60 | 25.70 | 31.40 |
| Rated Output (KW) | 0.60 | 1.47 | 2.44 | 3.45 | 4.51 | 0.00 | 5.64 | 6.89 |
| Efficiency (%) | 0.0 | 64.9 | 77.9 | 82.4 | 82.8 | 0.0 | 82.8 | 80.3 |
| Power Factor (%) | 47.4 | 83.0 | 92.1 | 94.4 | 95.7 | 0.0 | 95.3 | 95.4 |
| Speed (RPM) | 1,795 | 1,790 | 1,781 | 1,771 | 1,755 | 0 | 1,747 | 1,731 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 85.0 | 0.0 | 0.0 | 0.0 |
| Torque (LB-FT) | 0.00 | 3.75 | 7.50 | 11.30 | 15.00 | 0.00 | 18.80 | 22.50 |
