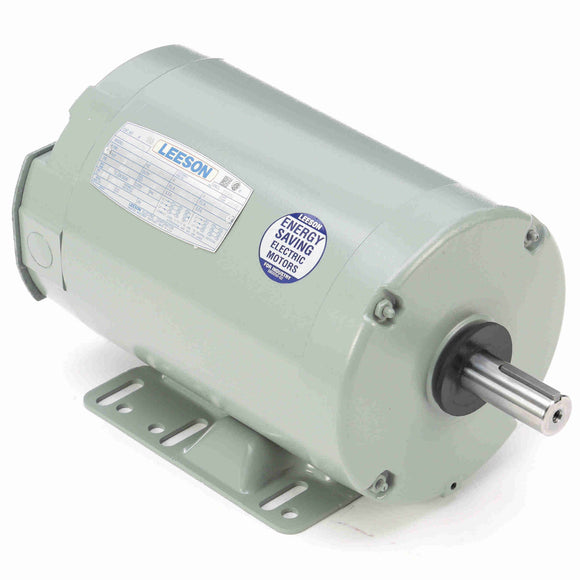

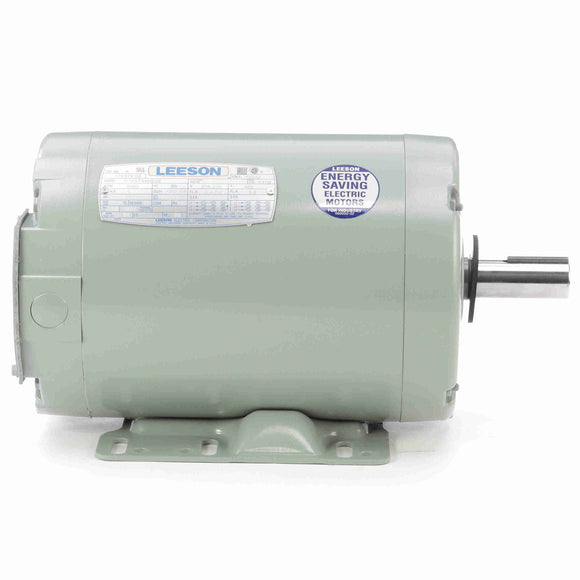

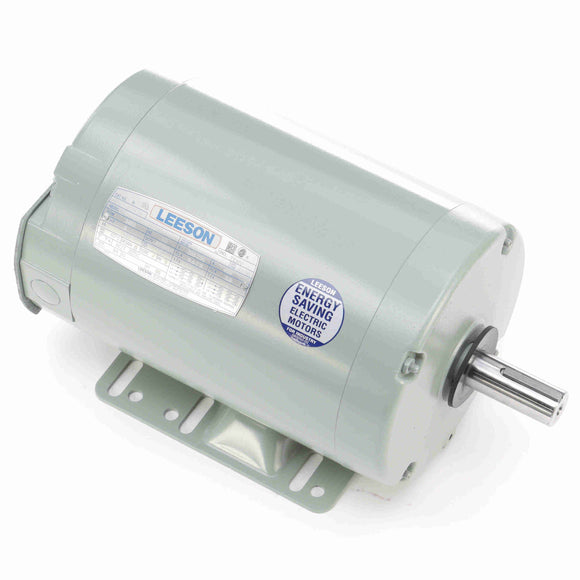

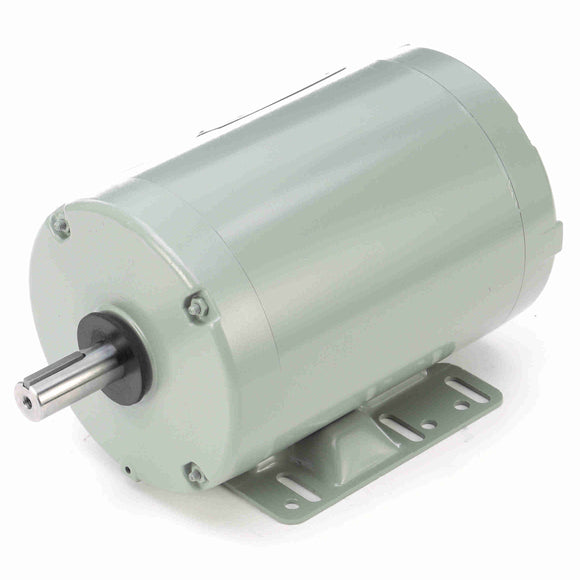

Features
Features
- Air over motor designs
- Double sealed full contact ball bearings
- Epoxy paint
- Non-standard shaft extension
- Belt driven fans or fan on shaft applications
- Must be mounted in airstream for proper cooling
General Specifications
General Specifications
|
Model : |
C145T34NB2E |
Catalog No : |
120379.00 |
|
Part Description : |
..3HP..3450RPM.145T.TENV.208-230/460V.3PH.60HZ.AIROVER.40C.1.0SF.RIGID.C145T34NB2E.....AG - FAN & BLOWER.NOT....... |
Category : |
Aeration Fan |
|
Stock : |
No |
Nameplate Specifications
Nameplate Specifications
|
Output HP : |
3 HP |
Output KW : |
2.2 kW |
|
Frequency : |
60 Hz |
Voltage : |
208-230/460 V |
|
Current : |
8.4-7.6/3.8 A |
Speed : |
3450 RPM |
|
Service Factor : |
1 |
Phase : |
3 |
|
Efficiency : |
84 % |
Duty : |
Continuous |
|
Insulation Class : |
F |
Design Code : |
B |
|
KVA Code : |
J |
Frame : |
145T |
|
Enclosure : |
Totally Enclosed Air Over |
Overload Protector : |
No |
|
Ambient Temperature : |
40 °C |
Drive End Bearing Size : |
6205 |
|
Opp Drive End Bearing Size : |
6203 |
UL : |
Recognized |
|
CSA : |
Y |
CE : |
N |
|
IP Code : |
43 |
Technical Specifications
Technical Specifications
|
Electrical Type : |
Squirrel Cage Induction Run |
Starting Method : |
Across The Line |
|
Poles : |
2 |
Rotation : |
Reversible |
|
Mounting : |
Rigid base |
Motor Orientation : |
HORIZONTAL |
|
Drive End Bearing : |
BALL |
Opp Drive End Bearing : |
BALL |
|
Frame Material : |
Rolled Steel |
Shaft Type : |
T |
|
Overall Length : |
12.34 in |
Frame Length : |
7.00 in |
|
Shaft Diameter : |
0.875 in |
Shaft Extension : |
2.25 in |
|
Assembly/Box Mounting : |
F1 ONLY |
UPC : |
691720015476 |
|
Weight : |
41.00 LB |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|
Break-Down |
0.00 | 15.20 | 338.0 | 2,300 | 3.00 | |||
|
Locked-Rotor |
30.00 | 13.00 | 289.0 | 0 | 3.00 | |||
|
Pull-Up |
0.00 | 12.70 | 282.0 | 400 | 3.00 | |||
|
Full Load |
3.80 | 4.50 | 100.0 | 3,486 | 3.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 1.70
- 0.160
- 0.0
- 11.8
- 3,598
- 0.0
- 0.00
- 25 %
- 2.01
- 0.847
- 67.7
- 52.9
- 3,569
- 0.0
- 1.13
- 50 %
- 2.38
- 1.320
- 85.9
- 69.6
- 3,547
- 0.0
- 2.25
- 75 %
- 3.03
- 1.975
- 85.6
- 81.8
- 3,519
- 0.0
- 3.38
- 100 %
- 3.80
- 2.630
- 84.8
- 86.9
- 3,486
- 82.0
- 4.50
- 125 %
- 4.63
- 3.238
- 85.3
- 87.8
- 3,452
- 0.0
- 5.63
- 150 %
- 5.50
- 3.927
- 83.3
- 89.6
- 3,411
- 0.0
- 6.75
