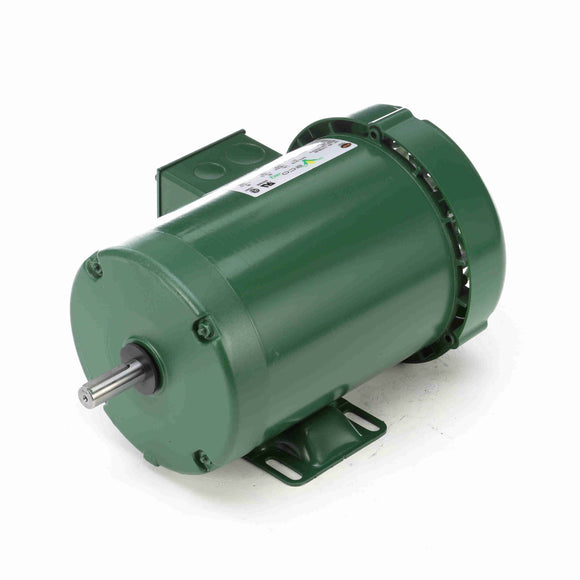

117760.00 1HP Leeson Farm Duty Electric Motor

$494.05 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 117760.00 Barcode: 691720003572

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 1800RPM, 56 Frame, 3Ph, 230/460V

Description Product Specs Manufacturer

Volts 230   Volts 460   Volts 190/380
FL Amps 3.2   FL Amps 1.6   FL Amps 3.4/1.7
SF Amps 3.8   SF Amps 1.9   SF Amps 4/2
RPM 1800   Hertz 60/50
HP 1   Duty CONTINUOUS   Type TF
KW .75   SF 1.25   Phase 3
Frame 56   Design B   KVA Code N
Ambient 40   Protection NOT   Therm.Prot. 9700K46
Insulation Class F   Eff(75%)   PF 68.5
Eff(100%) 85.5   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE N   Bearing PE 6203
CC Number EXEMPT   Inverter Type   Speed Range NONE
LOad Type
Motor Wt. 34 LB   Enclosure TEFC   Lubrication POLYREX EM
Nameplate 993500   Mounting RIGID   Rotation REV
Shaft Diam. 5/8 IN   Cust Part No.   Packaging B
    Winding T634342   Carton Label LEESON ECO AG
    Group 3   Iris
Paint GREEN (ENAMEL)   Hazardous Location NONE   Test Card 03
  • Electric Motor
  • 56
  • TEFC
  • 1HP
  • 1800RPM
  • Farm Duty

Leeson Electric (Regal Rexnord)
