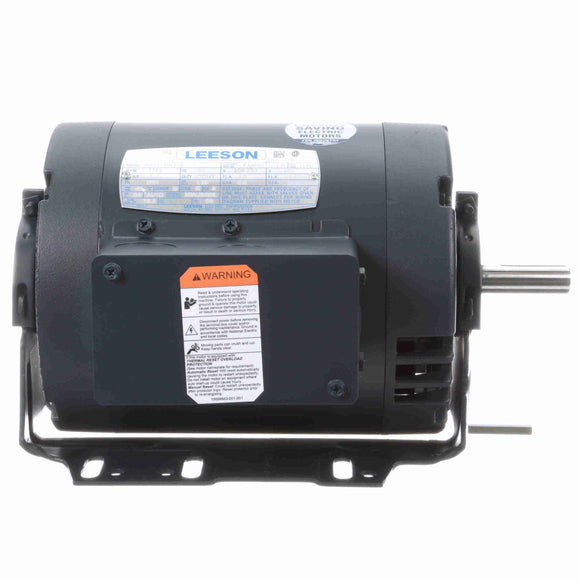

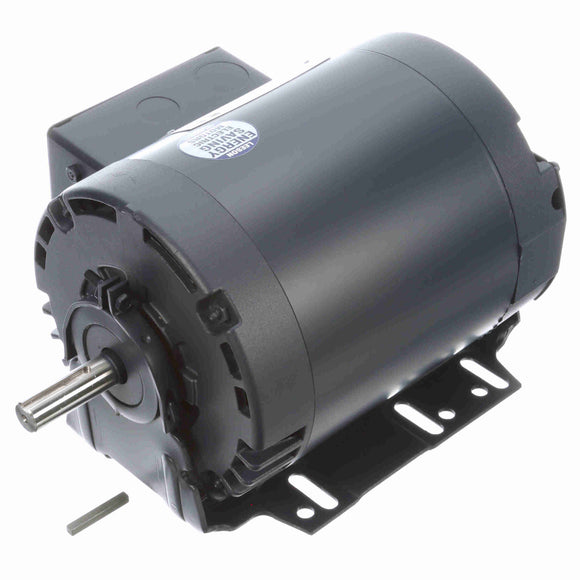

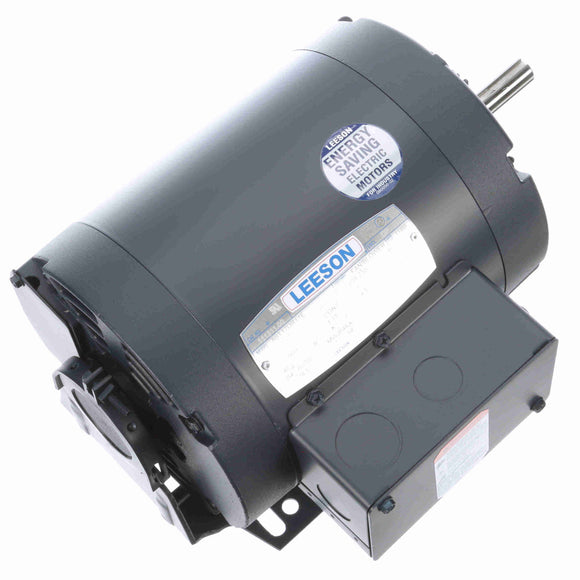

Features
- Designed for belted loads
- Ball bearing designs
- Durable rolled steel construction
- NEMA® Design B performance
- Continuous Duty
General Specifications
| UPC: | 691720009833 | Weight: | 30.00 LB |
| Packaged Length: | 14.44 IN | Packaged Width: | 10.44 IN |
| Packaged Height: | 10.88 IN |
Nameplate Specifications
| Output HP: | 1 Hp | Output KW: | 0.75 kW |
| Frequency: | 60 Hz | Voltage: | 208-230/460 V |
| Current: | 4.2/2.1 A | Speed: | 1725 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 78.5 % | Power Factor: | 58 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | B | KVA Code: | K |
| Frame: | 56H | Enclosure: | Drip Proof |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 22 |
Technical Specifications
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 0 Ohms | Mounting: | Resilient Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | NEMA 56 | Overall Length: | 11.32 in |
| Frame Length: | 5.50 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1.88 in | Assembly/Box Mounting: | F1 ONLY |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 22.00 | 9.50 | 317.0 | 0 | 1.00 | |||
| Break-Down | 0.00 | 11.80 | 393.0 | 0 | 1.00 | |||
| Pull-Up | 0.00 | 9.40 | 313.0 | 0 | 1.00 | |||
| Full Load | 4.20 | 3.00 | 100.0 | 0 | 1.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
| Current (Amps) | 1.83 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
| Rated Output (KW) | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
| Efficiency (%) | 0.0 | 50.0 | 66.5 | 71.5 | 78.5 | 0.0 | 0.0 |
| Power Factor (%) | 0.0 | 26.6 | 38.8 | 49.7 | 64.0 | 0.0 | 0.0 |
| Speed (RPM) | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
