Features
- Rugged die cast aluminum gear housing for maximum gear and bearing support
- Precision machined gearing, hardened for maximum load capability
- All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
- Oversized output bearings for greater overhung load capacity and long life
- High carbon alloy output shaft provides maximum strength and rigidity
- All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
- Heavy duty industrial oil seals keep lubricant in and dirt out
- Gears and bearings are splash lubricated with permanent, heavy duty gear oil
- Conduit box included as standard
General Specifications
| UPC: | 691720006573 | Weight: | 31.00 LB |
| Packaged Length: | 19.5 IN | Packaged Width: | 10.44 IN |
| Packaged Height: | 10.88 IN |

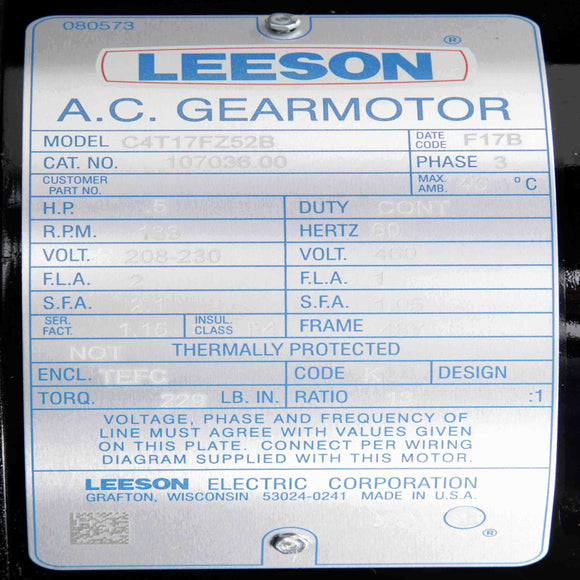

Nameplate Specifications
| Output HP: | 0.50 Hp | Output KW: | 0.37 kW |
| Frequency: | 60 Hz | Voltage: | 208-230/460 V |
| Current: | 2.0/1.0 A | Speed: | 133 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Duty: | Continuous | Insulation Class: | F |
| KVA Code: | K | Frame: | 48Y |
| Enclosure: | Totally Enclosed Fan Cooled | Thermal Protection: | No |
| Ambient Temperature: | 40 °C | Drive End Bearing Size: | 6203 |
| Opp Drive End Bearing Size: | 6203 | UL: | Recognized |
| CSA: | Y | CE: | N |
Technical Specifications
| Rotation: | Reversible | Mounting: | Special |
| Shaft Type: | Parallel | Overall Length: | 13.42 in |
| Frame Length: | 5.50 in | Shaft Diameter: | 0.750 in |
| Shaft Extension: | 1.5 in |
