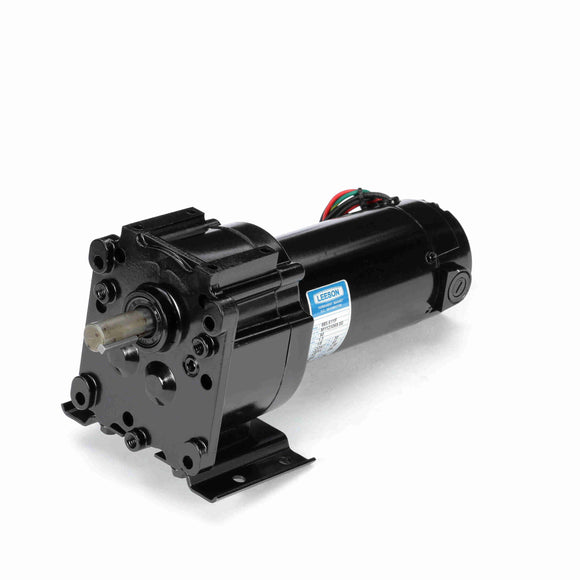

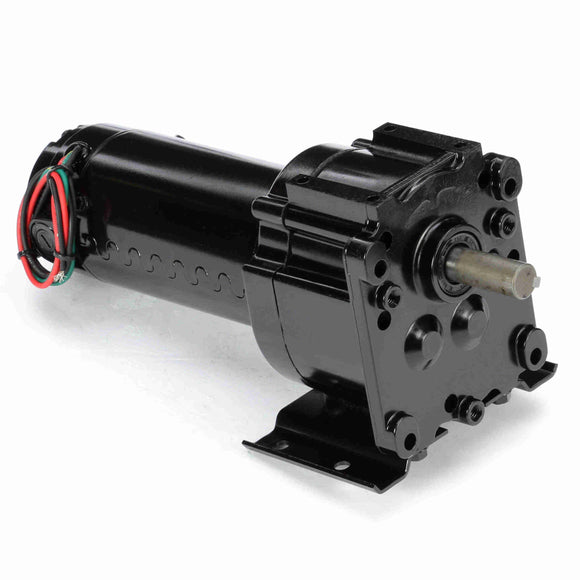

Features
Features
- Precision machined in-line steel gears
- First stage steel helical gear followed by spur-type gears
- Lubrication is permanent semi-fluid grease, reducing possibility of leakage
- Output shafts have needle bearings for high load capacities
- Shafts are hardened steel
- Optional conduit box available
General Specifications
General Specifications
| Model : | 985.611F | Catalog No : | M1125069.00 |
| Part Description : | ...76:1.24RPM.280LBIN.1/8HP.30...DC GEARMOTORS SUB-FHP.90V.DC.TENV | Category : | P300 Series |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.13 Hp | Output KW : | 0.10 kW |
| Voltage : | 90 V | Current : | 1.3 A |
| Speed : | 24 rpm | Service Factor : | 1 |
| Efficiency : | 67.2 % | Duty : | Continuous |
| Insulation Class : | F | Frame : | 30 |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6000 |
| Opp Drive End Bearing Size : | 6000 | UL : | Recognized |
| CSA : | Y | CE : | Y |
Technical Specifications
Technical Specifications
| Rotation : | Reversible | Mounting : | Special |
| Shaft Type : | Parallel | Overall Length : | 11.45 in |
| Frame Length : | 4.91 in | Shaft Diameter : | 0.625 in |
| Shaft Extension : | 1.5 in | UPC : | 691720091128 |
| Weight : | 14.00 LB |
