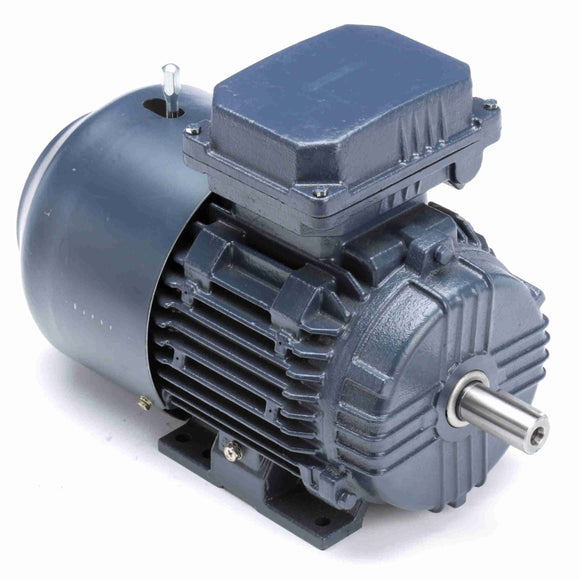

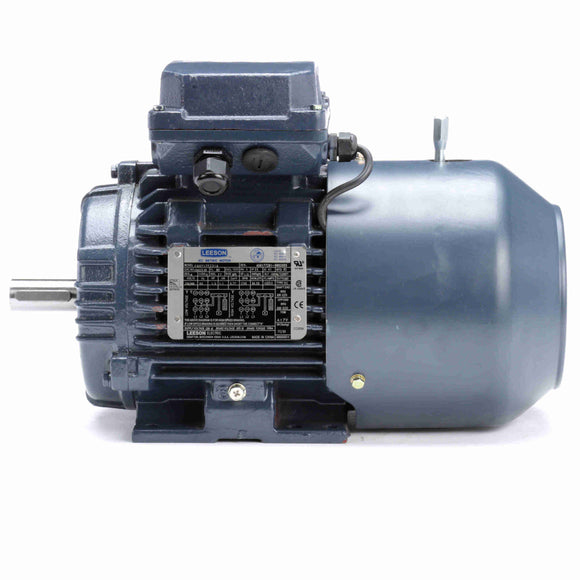

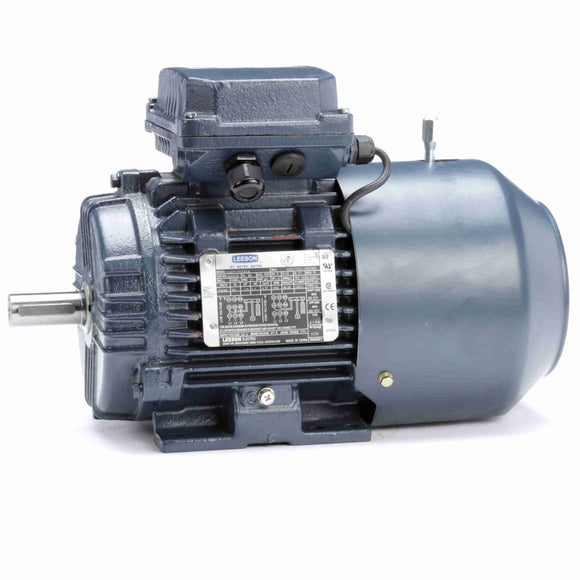

Features
- Cast iron construction
- 60/50 Hz interchangeability
- 230 volt brake coil
- IP55 enclosure
- B3 mounting
- B5 & B14 flange kits available
- UL listed and CSA certified
General Specifications
| UPC: | 691720992180 | Weight: | 81.00 LB |
| Packaged Length: | 14.96 IN | Packaged Width: | 12.8 IN |
| Packaged Height: | 9.8 IN |
Nameplate Specifications
| Output HP: | 1.50 Hp | Output KW: | 1.1 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 4.2/2.1 A | Speed: | 1745 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 86.5 % | Power Factor: | 77 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | No Design Code | KVA Code: | K |
| Frame: | 90S | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 55 |
Technical Specifications
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 0 Ohms | Mounting: | B3 |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | IEC | Overall Length: | 15.47 in |
| Frame Length: | 6.02 in | Shaft Diameter: | 1.000 in |
| Shaft Extension: | 1.96 in | Assembly/Box Mounting: | F3 |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 0.00 | 0.0 | 15.00 | 333.0 | 0 | 0.00 | 0.0 | 1.50 |
| Full Load | 2.00 | 100.0 | 4.50 | 100.0 | 1,747 | 0.00 | 0.0 | 1.50 |
| Locked-Rotor | 14.80 | 740.0 | 11.30 | 251.0 | 0 | 0.00 | 0.0 | 1.50 |
| No Load | 1.00 | 50.0 | 0.00 | 0.0 | 1,798 | 0.00 | 0.0 | 1.50 |
