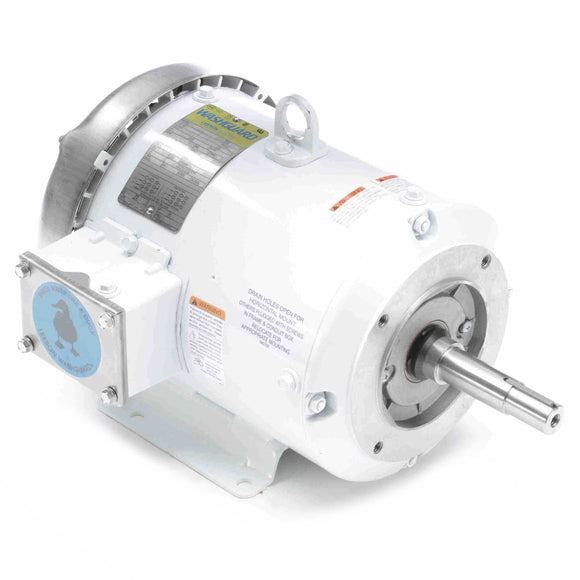

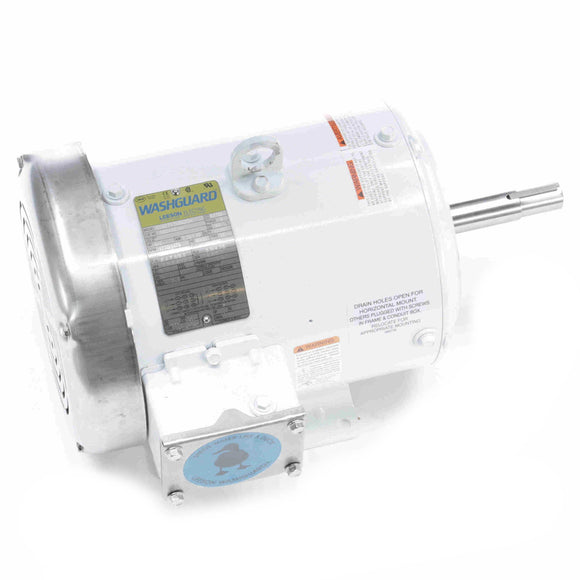

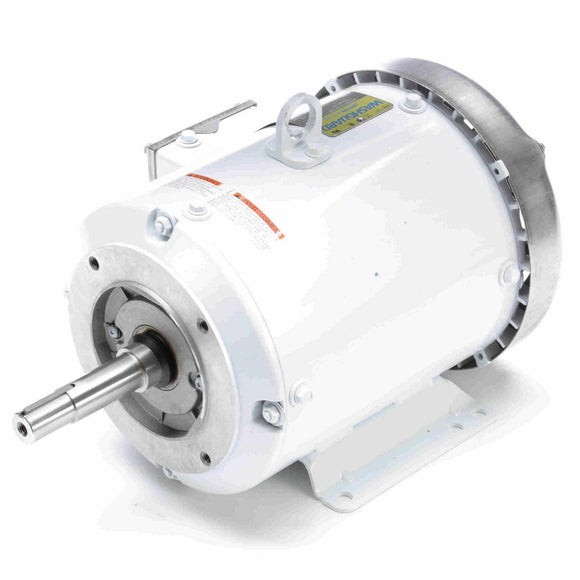

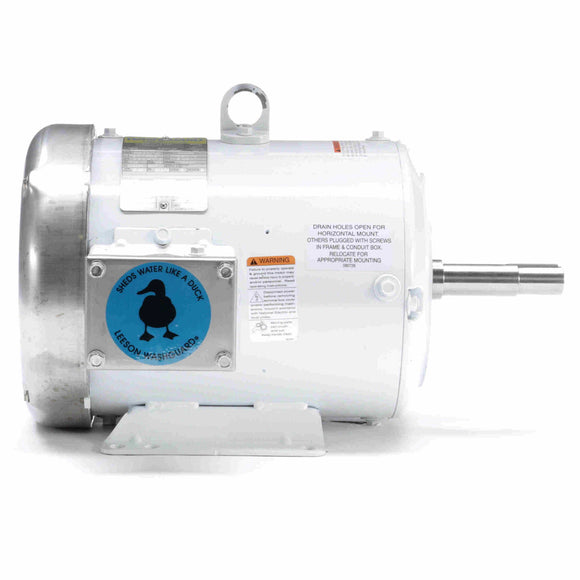

Features
- USDA-approved epoxy painted motors
- NEMA motors
- Rigid base and C face mount types
- UL recognized and CSA certified
- Double lip contact seals and v-ring seals used for shaft seals
General Specifications
| UPC: | 691720052099 | Weight: | 90.00 LB |
| Packaged Length: | 17.94 IN | Packaged Width: | 13.06 IN |
| Packaged Height: | 12.88 IN | Country of Origin: | Mexico |
Nameplate Specifications
| Output HP: | 3 Hp | Output KW: | 2.2 kW |
| Frequency: | 60 Hz | Voltage: | 208-230/460 V |
| Current: | 8.4-7.8/3.9 A | Speed: | 1770 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 89.5 % | Power Factor: | 80.5 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | K |
| Frame: | 182JM | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No Protection | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6207 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 55 |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 6.08 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | JM | Overall Length: | 16.13 in |
| Frame Length: | 9.00 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 4.28 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (LB-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 21.50 | 551.0 | 36.00 | 404.0 | 0 | 0.00 | 0.0 | 3.00 |
| Full Load | 3.90 | 100.0 | 8.90 | 100.0 | 1,770 | 0.00 | 80.5 | 3.00 |
| Pull-Up | 33.00 | 846.0 | 21.00 | 236.0 | 0 | 0.00 | 0.0 | 3.00 |
| Locked-Rotor | 33.50 | 859.0 | 22.50 | 253.0 | 0 | 0.00 | 0.0 | 3.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % | 150 % |
| Current (Amps) | 1.90 | 2.10 | 2.56 | 3.18 | 3.90 | 4.40 | 4.73 | 5.61 |
| Rated Output (KW) | 0.11 | 0.69 | 1.28 | 1.87 | 2.50 | 2.86 | 3.13 | 3.79 |
| Efficiency (%) | 0.0 | 80.8 | 87.7 | 89.6 | 89.5 | 89.9 | 89.5 | 88.5 |
| Power Factor (%) | 6.9 | 41.4 | 62.7 | 73.8 | 80.5 | 81.6 | 83.0 | 84.7 |
| Speed (RPM) | 1,798 | 1,792 | 1,785 | 1,777 | 1,770 | 1,766 | 1,755 | 1,750 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 40.0 | 47.0 | 60.0 | 0.0 |
| Torque (LB-FT) | 0.00 | 2.20 | 4.42 | 6.64 | 8.91 | 10.26 | 11.20 | 13.49 |
