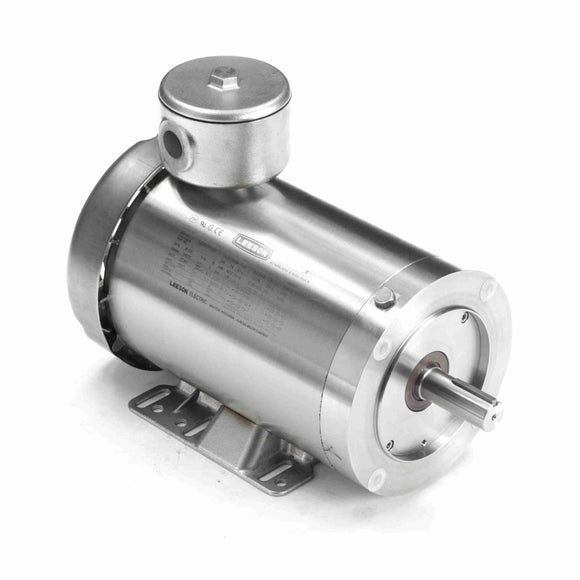

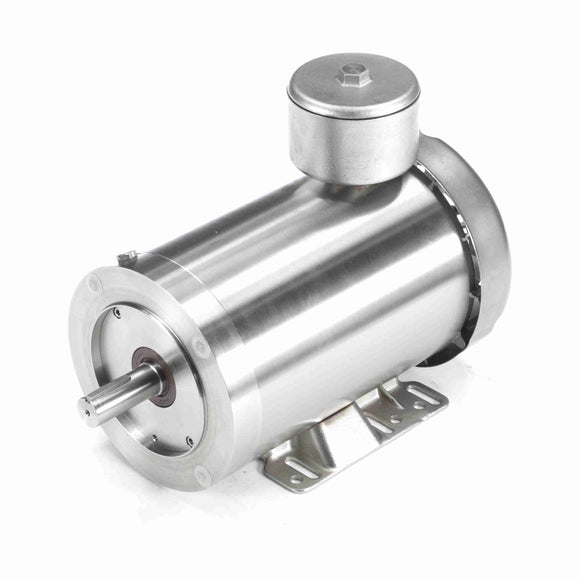

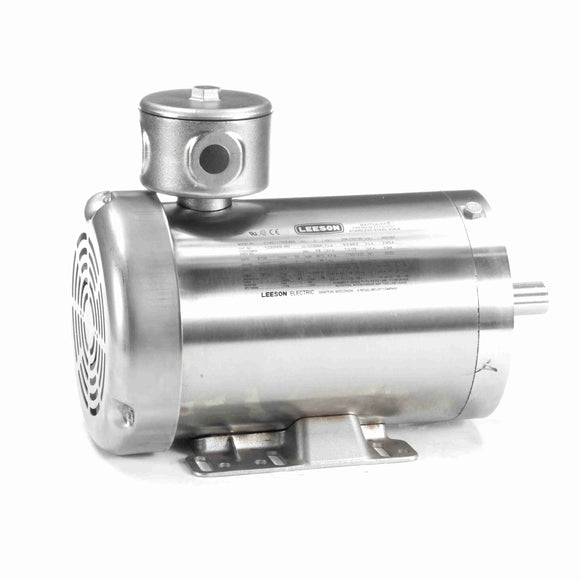

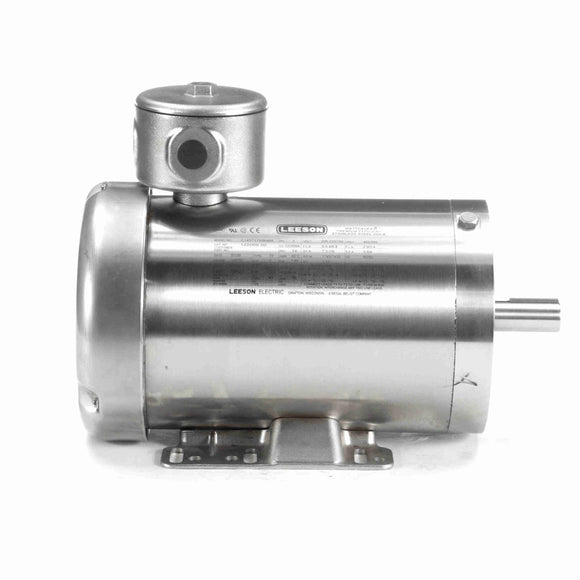

122009.00 Leeson 2HP Agriculture Duty Feather Picker Electric Motor, 1800RPM

$392.40 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 122009.00 Barcode: 691720263914

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 145T Frame, 208-230/460VAC 3-Phase 60Hz, C145T17WK49A, Rigid Base, Stainless Steel

Description Product Specs Manufacturer





Features




Features


  • Phosphatized or stainless steel shafts drilled and tapped metric shafts

  • All Stainless Construction

  • USDA approved food-safe paint

  • Extra high breakdown torques






General Specifications





General Specifications






























Model :
C145T17WK49A
Catalog No :
122009.00

Part Description :
122009.00..2HP..1745RPM.145T.TEFC.230/460.3 PH.60HZ.CONT.40C.1.25SF.RIGID C.C145T17WK49.....Stainless Feather Picker.NONE.......
Category :
Feather Picker

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
2 HP
Output KW :
1.5 kW

Frequency :
60 Hz
Voltage :
230/460 V

Current :
5.8/2.9 A
Speed :
1745 RPM

Service Factor :
1.25
Phase :
3

Efficiency :
86.5 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
L
Frame :
145TC

Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6205

Opp Drive End Bearing Size :
6203
UL :
Recognized

CSA :
Y
CE :
Y

IP Code :
56






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Induction Run
Starting Method :
Across The Line

Poles :
4
Rotation :
Reversible

Mounting :
Rigid base
Motor Orientation :
Horizontal

Drive End Bearing :
Ball
Opp Drive End Bearing :
Ball

Frame Material :
Rolled Steel
Shaft Type :
T

Overall Length :
13.25 in
Frame Length :
8.25 in

Shaft Diameter :
0.875 in
Shaft Extension :
2.12 in

Assembly/Box Mounting :
F3
UPC :
691720263914

Weight :
58.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Locked-Rotor
26.58 1,329.0 24.60 410.0 0 14.36 0.0 2.00

Break-Down
19.17 958.0 28.80 480.0 1,100 12.00 0.0 2.00

Full Load
2.00 100.0 6.00 100.0 1,757 1.70 72.1 2.00

Pull-Up
25.37 1,268.0 24.60 410.0 120 14.10 0.0 2.00





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 1.70

  • 0.100

  • 0.0

  • 7.0

  • 1,800

  • 0.0

  • 0.00





  • 25 %

  • 1.90

  • 0.500

  • 74.5

  • 33.5

  • 1,785

  • 0.0

  • 1.50





  • 50 %

  • 2.20

  • 0.950

  • 83.5

  • 52.0

  • 1,775

  • 0.0

  • 3.00





  • 75 %

  • 2.60

  • 1.350

  • 85.5

  • 64.0

  • 1,762

  • 0.0

  • 4.50





  • 100 %

  • 2.90

  • 1.750

  • 86.5

  • 75.6

  • 1,745

  • 55.0

  • 6.00





  • 115 %

  • 3.20

  • 2.000

  • 86.0

  • 76.5

  • 1,740

  • 75.0

  • 6.90





  • 125 %

  • 3.50

  • 2.150

  • 85.5

  • 77.5

  • 1,730

  • 85.0

  • 7.50





  • 150 %

  • 4.10

  • 2.600

  • 84.0

  • 80.5

  • 1,718

  • 0.0

  • 9.00
