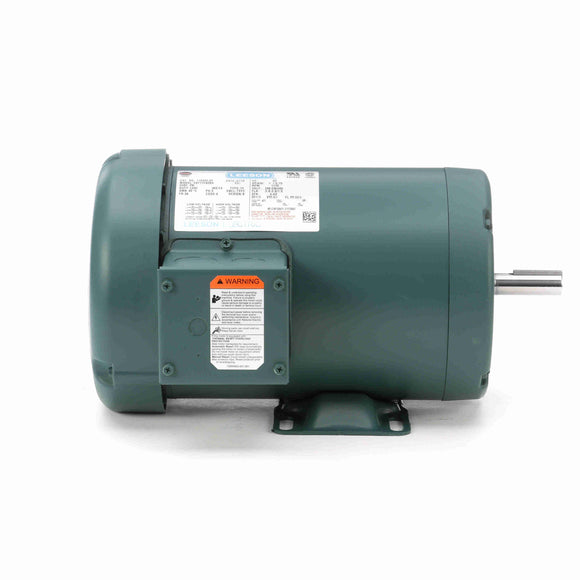

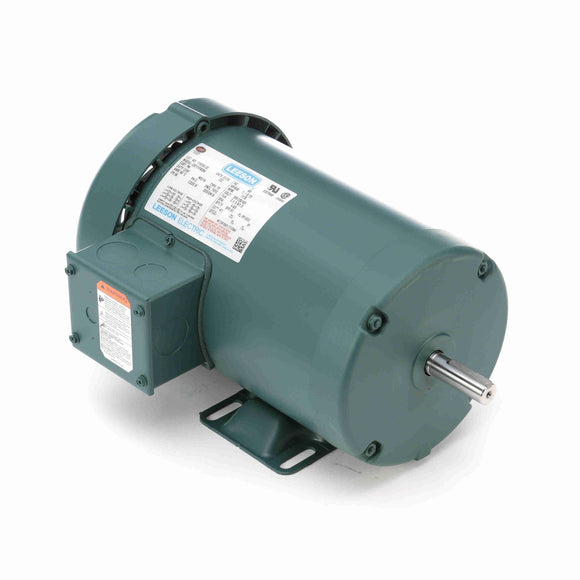

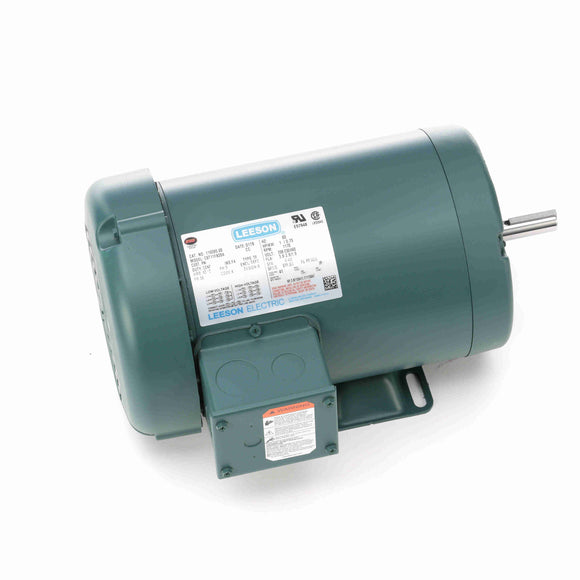

119395.00 Leeson 1HP Wattsaver General Purpose Electric Motor, 1170RPM

$685.97 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 119395.00 Barcode: 691720043523

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56 Frame, 208-230/460VAC 3-Phase 60Hz, C6T11FB28A, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Description Product Specs Manufacturer





Features




Features


  • Premium efficient ratings

  • Class B insulation systems – 42, 48 and 56 frames

  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications

  • Continuous duty; Dynamically balanced rotors

  • WATTSaver ®e Premium efficient motors

  • Ultimate e Premium efficient motors






General Specifications





General Specifications






























Model :
C6T11FB28A
Catalog No :
119395.00

Part Description :
119395.00..1HP..1170RPM.56.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.C6T11FB28.....GENERAL PURPOSE........
Category :
Totally Enclosed Fan Cooled (TEFC)

Stock :
No






Nameplate Specifications





Nameplate Specifications








































































Output HP :
1 HP
Output KW :
0.75 kW

Frequency :
60 Hz
Voltage :
208-230/460 V

Current :
3.8-3.8/1.9 A
Speed :
1170 RPM

Service Factor :
1.15
Phase :
3

Efficiency :
82.5 %
Duty :
Continuous

Insulation Class :
F
Design Code :
B

KVA Code :
K
Frame :
56

Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No

Ambient Temperature :
40 °C
Drive End Bearing Size :
6203

Opp Drive End Bearing Size :
6203
UL :
Recognized

CSA :
Y
CE :
N

IP Code :
43






Technical Specifications





Technical Specifications

























































Electrical Type :
Squirrel Cage Induction Run
Starting Method :
Across The Line

Poles :
6
Rotation :
Reversible

Mounting :
Rigid base
Motor Orientation :
HORIZONTAL

Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL

Frame Material :
Rolled Steel
Shaft Type :
NEMA 56

Overall Length :
12.98 in
Frame Length :
7.50 in

Shaft Diameter :
0.625 in
Shaft Extension :
1.88 in

Assembly/Box Mounting :
F1 ONLY
UPC :
691720043523

Weight :
40.00 LB






Speed & Load Characteristics





Speed Characteristics































































Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)

Locked-Rotor
10.70 0.0 13.50 300.0 0 4.57 0.0 1.00

Pull-Up
9.94 0.0 13.30 298.0 125 4.55 0.0 1.00

Break-Down
7.40 0.0 15.80 351.0 750 4.04 0.0 1.00

Full Load
1.90 0.0 4.50 100.0 1,170 0.90 0.0 1.00





Load Characteristics






  • % of Rated Load

  • Current (Amps)

  • Rated Output (KW)

  • Efficiency (%)

  • Power Factor (%)

  • Speed (RPM)

  • Temp. Rise @ FL

  • Torque (ft-lb)





  • 0 %

  • 1.20

  • 0.082

  • 0.0

  • 8.6

  • 1,198

  • 0.0

  • 0.00





  • 25 %

  • 1.24

  • 0.265

  • 70.2

  • 26.8

  • 1,190

  • 0.0

  • 1.10





  • 50 %

  • 1.37

  • 0.464

  • 80.6

  • 42.5

  • 1,180

  • 0.0

  • 2.23





  • 75 %

  • 1.55

  • 0.675

  • 82.9

  • 54.7

  • 1,169

  • 0.0

  • 3.37





  • 100 %

  • 1.78

  • 0.893

  • 83.6

  • 63.0

  • 1,157

  • 41.5

  • 4.54





  • 115 %

  • 1.94

  • 1.032

  • 83.3

  • 66.8

  • 1,148

  • 53.0

  • 5.27





  • 125 %

  • 2.05

  • 1.125

  • 82.9

  • 68.9

  • 1,144

  • 0.0

  • 5.74





  • 150 %

  • 2.37

  • 1.371

  • 81.6

  • 72.6

  • 1,129

  • 0.0

  • 6.98








  • 208VAC
  • 230VAC
  • 460VAC
  • Electric Motor
  • 56
  • TEFC
  • 1HP
  • 1170RPM
